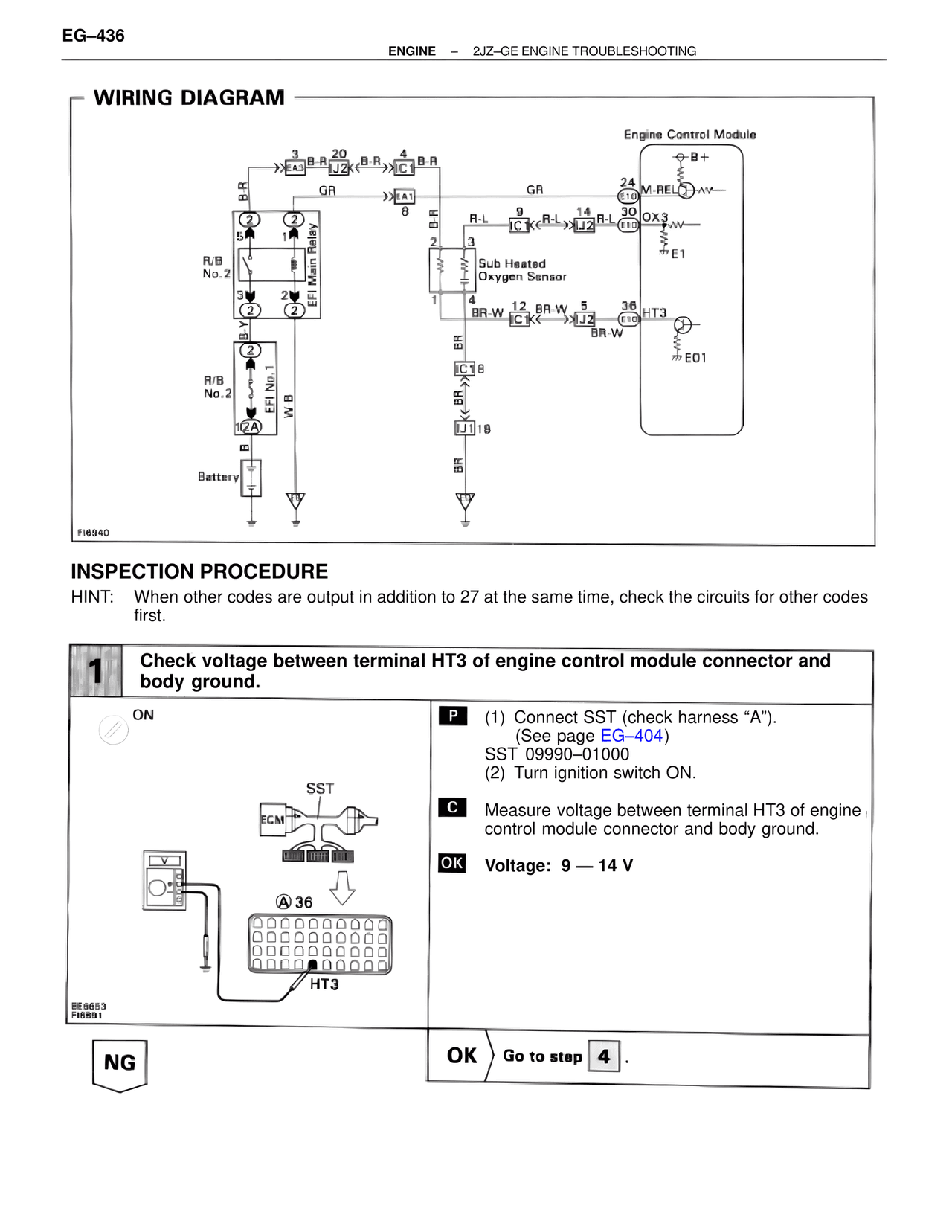

EG–436
ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING
WIRING DIAGRAM
Engine Control Module
B+
3 B-R 20 B-R 4 B-R
EA3 J2K C1
B-R
GR GR 24
M-REL E10
2 2
R-L 9 14 30
5 1 1C K R-L JJ2 R-L OX3
EFI Main Relay 8 E10
2 B-R E1
R/B 3
No.2 3 2 Sub Heated
R-B-Y 2 2 Oxygen Sensor
1
2
R/B 4 BR-W 5 36
No.2 12 BR-W JJ2 HT3
EFI No.1 1C K E10
W-B BR-W
BR
12A
C18
B
BR
Battery
JJ1 18
BR
E01
FI6940
INSPECTION PROCEDURE
HINT: When other codes are output in addition to 27 at the same time, check the circuits for other codes first.
1 Check voltage between terminal HT3 of engine control module connector and body ground.
ON
SST
ECM
P (1) Connect SST (check harness "A").
(See page EG–404)
SST 09990–01000
(2) Turn ignition switch ON.
C Measure voltage between terminal HT3 of engine control module connector and body ground.
OK Voltage: 9 — 14 V
A 36
HT3
BE6653
FI6891
NG OK Go to step 4 .
