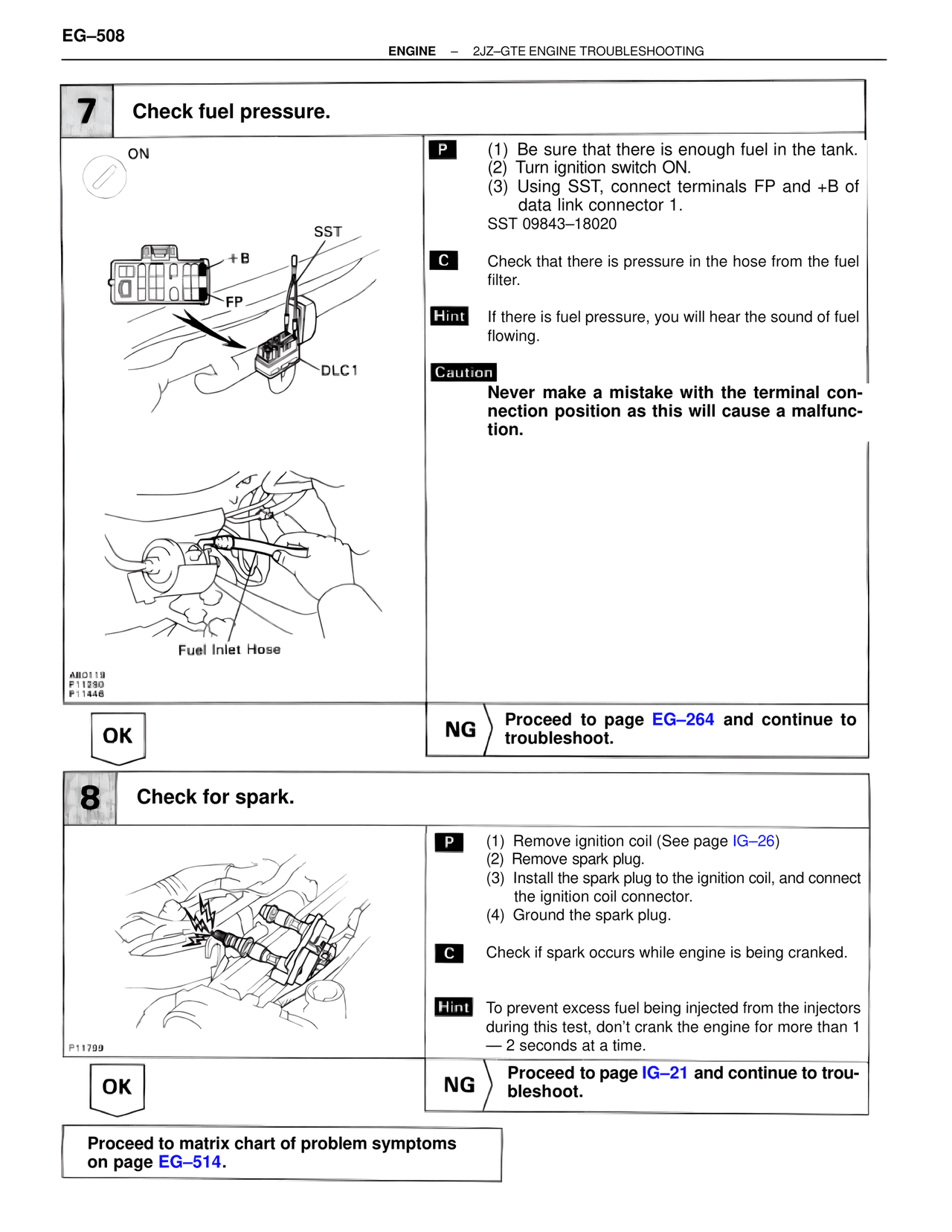

EG–508
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
7 Check fuel pressure.
ON
SST
+B
FP
DLC1
AB0119
P11290
P11446
Fuel Inlet Hose
P (1) Be sure that there is enough fuel in the tank.
(2) Turn ignition switch ON.
(3) Using SST, connect terminals FP and +B of data link connector 1.
SST 09843–18020
C Check that there is pressure in the hose from the fuel filter.
Hint If there is fuel pressure, you will hear the sound of fuel flowing.
Caution Never make a mistake with the terminal connection position as this will cause a malfunction.
OK
NG Proceed to page EG–264 and continue to troubleshoot.
8 Check for spark.
P11799
P (1) Remove ignition coil (See page IG–26)
(2) Remove spark plug.
(3) Install the spark plug to the ignition coil, and connect the ignition coil connector.
(4) Ground the spark plug.
C Check if spark occurs while engine is being cranked.
Hint To prevent excess fuel being injected from the injectors during this test, don't crank the engine for more than 1 — 2 seconds at a time.
OK
NG Proceed to page IG–21 and continue to troubleshoot.
Proceed to matrix chart of problem symptoms on page EG–514.
