EG-509
ENGINE – 2JZ-GTE ENGINE TROUBLESHOOTING

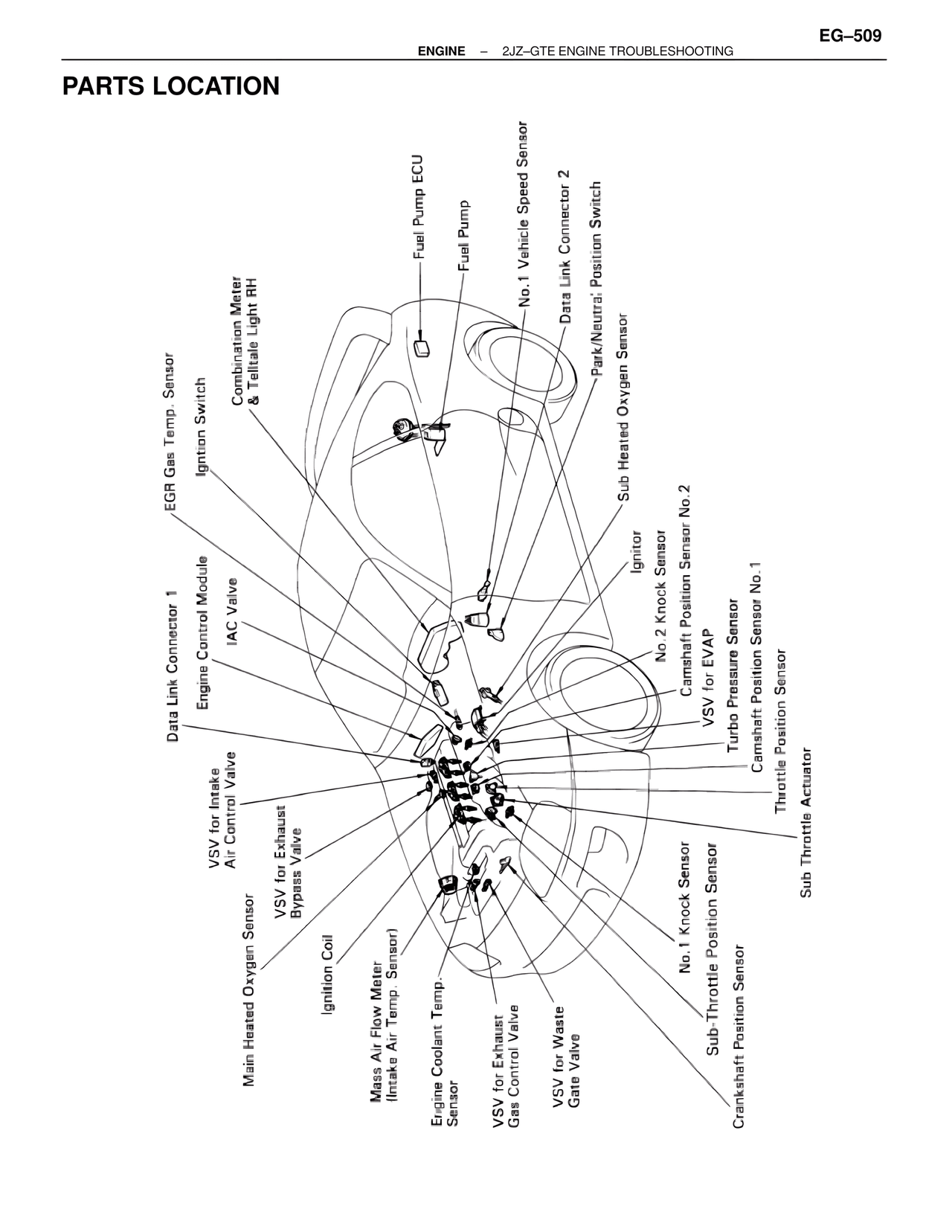

PARTS LOCATION
EGR Gas Temp. Sensor
Ignition Switch
Combination Meter
& Telltale Light RH
Fuel Pump ECU
Fuel Pump
No.1 Vehicle Speed Sensor
Data Link Connector 2
Park/Neutral Position Switch
Sub Heated Oxygen Sensor
Ignitor
No.2 Knock Sensor
Camshaft Position Sensor No.2
VSV for EVAP
Turbo Pressure Sensor
Camshaft Position Sensor No.1
Throttle Position Sensor
Sub Throttle Actuator
Crankshaft Position Sensor
Sub-Throttle Position Sensor
No.1 Knock Sensor
VSV for Exhaust
Gas Control Valve
VSV for Waste
Gate Valve
Engine Coolant Temp.
Sensor
Mass Air Flow Meter
(Intake Air Temp. Sensor)
Ignition Coil
VSV for Exhaust
Bypass Valve
Main Heated Oxygen Sensor
VSV for Intake
Air Control Valve
Data Link Connector 1
Engine Control Module
IAC Valve
