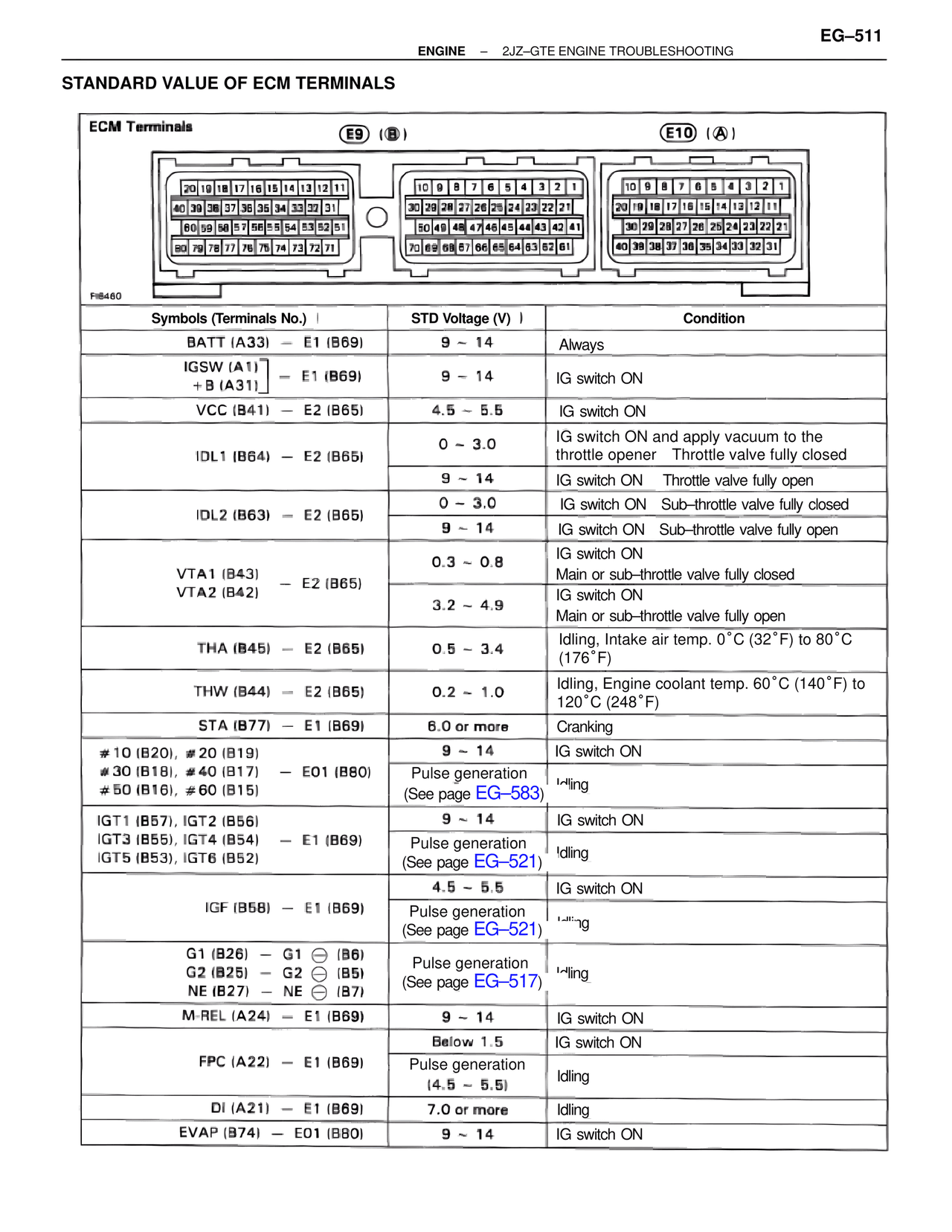

STANDARD VALUE OF ECM TERMINALS
ECM Terminals
E9 (B)
E10 (A)
20 19 18 17 16 15 14 13 12 11
40 39 38 37 36 35 34 33 32 31
60 59 58 57 56 55 54 53 52 51
80 79 78 77 76 75 74 73 72 71
10 9 8 7 6 5 4 3 2 1
30 29 28 27 26 25 24 23 22 21
50 49 48 47 46 45 44 43 42 41
70 69 68 67 66 65 64 63 62 61
10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11
30 29 28 27 26 25 24 23 22 21
40 39 38 37 36 35 34 33 32 31
Fi6460
Symbols (Terminals No.) | STD Voltage (V) | Condition
BATT (A33) — E1 (B69) | 9 ~ 14 | Always
IGSW (A1)
+ B (A31) — E1 (B69) | 9 ~ 14 | IG switch ON
VCC (B41) — E2 (B65) | 4.5 ~ 5.5 | IG switch ON
IDL1 (B64) — E2 (B65) | 0 ~ 3.0 | IG switch ON and apply vacuum to the throttle opener Throttle valve fully closed
| 9 ~ 14 | IG switch ON Throttle valve fully open
IDL2 (B63) — E2 (B65) | 0 ~ 3.0 | IG switch ON Sub-throttle valve fully closed
| 9 ~ 14 | IG switch ON Sub-throttle valve fully open
VTA1 (B43)
VTA2 (B42) — E2 (B65) | 0.3 ~ 0.8 | IG switch ON
Main or sub-throttle valve fully closed
| 3.2 ~ 4.9 | IG switch ON
Main or sub-throttle valve fully open
THA (B45) — E2 (B65) | 0.5 ~ 3.4 | Idling, Intake air temp. 0°C (32°F) to 80°C (176°F)
THW (B44) — E2 (B65) | 0.2 ~ 1.0 | Idling, Engine coolant temp. 60°C (140°F) to 120°C (248°F)
STA (B77) — E1 (B69) | 6.0 or more | Cranking
#10 (B20), #20 (B19)
#30 (B18), #40 (B17) — E01 (B80)
#50 (B16), #60 (B15) | 9 ~ 14 | IG switch ON
| Pulse generation
(See page EG-583) | Idling
IGT1 (B57), IGT2 (B56)
IGT3 (B55), IGT4 (B54) — E1 (B69)
IGT5 (B53), IGT6 (B52) | 9 ~ 14 | IG switch ON
| Pulse generation
(See page EG-521) | Idling
IGF (B58) — E1 (B69) | 4.5 ~ 5.5 | IG switch ON
| Pulse generation
(See page EG-521) | Idling
G1 (B26) — G1 (-) (B6)
G2 (B25) — G2 (-) (B5)
NE (B27) — NE (-) (B7) | Pulse generation
(See page EG-517) | Idling
M-REL (A24) — E1 (B69) | 9 ~ 14 | IG switch ON
FPC (A22) — E1 (B69) | Below 1.5 | IG switch ON
| Pulse generation
(4.5 ~ 5.5) | Idling
DI (A21) — E1 (B69) | 7.0 or more | Idling
EVAP (B74) — E01 (B80) | 9 ~ 14 | IG switch ON
