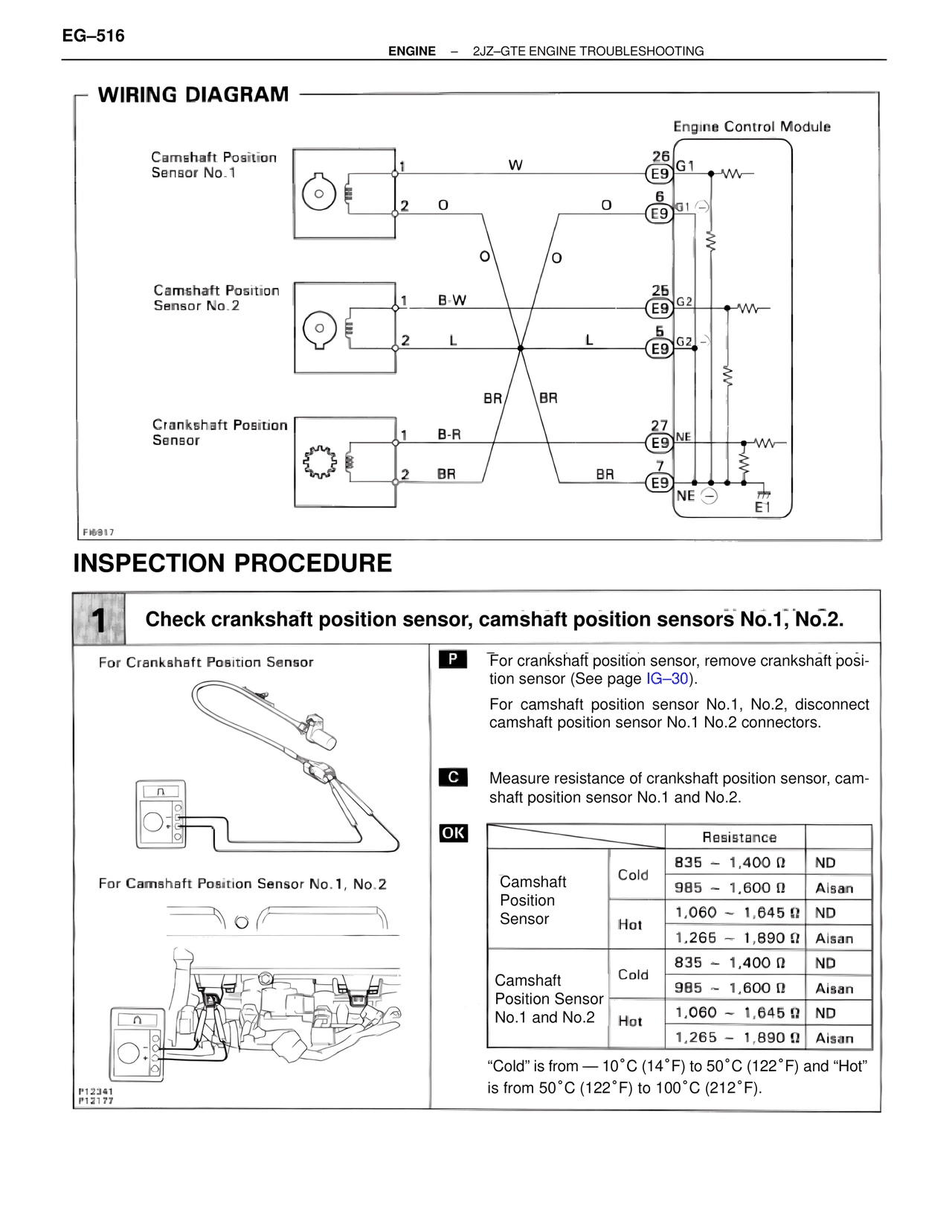

EG–516
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING

WIRING DIAGRAM

Engine Control Module

Camshaft Position
Sensor No.1
1  W  26
E9  G1
2  O  O  6
E9  G1 (–)

O  O

Camshaft Position
Sensor No.2
1  B-W  25
E9  G2
2  L  L  5
E9  G2 (–)

BR  BR

Crankshaft Position
Sensor
1  B-R  27
E9  NE
2  BR  BR  7
E9  NE (–)
E1

FI6917

INSPECTION PROCEDURE

1  Check crankshaft position sensor, camshaft position sensors No.1, No.2.

For Crankshaft Position Sensor

P  For crankshaft position sensor, remove crankshaft position sensor (See page IG–30).

For camshaft position sensor No.1, No.2, disconnect camshaft position sensor No.1 No.2 connectors.

C  Measure resistance of crankshaft position sensor, camshaft position sensor No.1 and No.2.

OK
                          Resistance
Camshaft
Position
Sensor
          Cold    835 ~ 1,400 Ω    ND
                  985 ~ 1,600 Ω    Aisan
          Hot     1,060 ~ 1,645 Ω  ND
                  1,265 ~ 1,890 Ω  Aisan

Camshaft
Position Sensor
No.1 and No.2
          Cold    835 ~ 1,400 Ω    ND
                  985 ~ 1,600 Ω    Aisan
          Hot     1,060 ~ 1,645 Ω  ND
                  1,265 ~ 1,890 Ω  Aisan

"Cold" is from — 10˚C (14˚F) to 50˚C (122˚F) and "Hot" is from 50˚C (122˚F) to 100˚C (212˚F).

For Camshaft Position Sensor No.1, No.2

P12341
P12177
