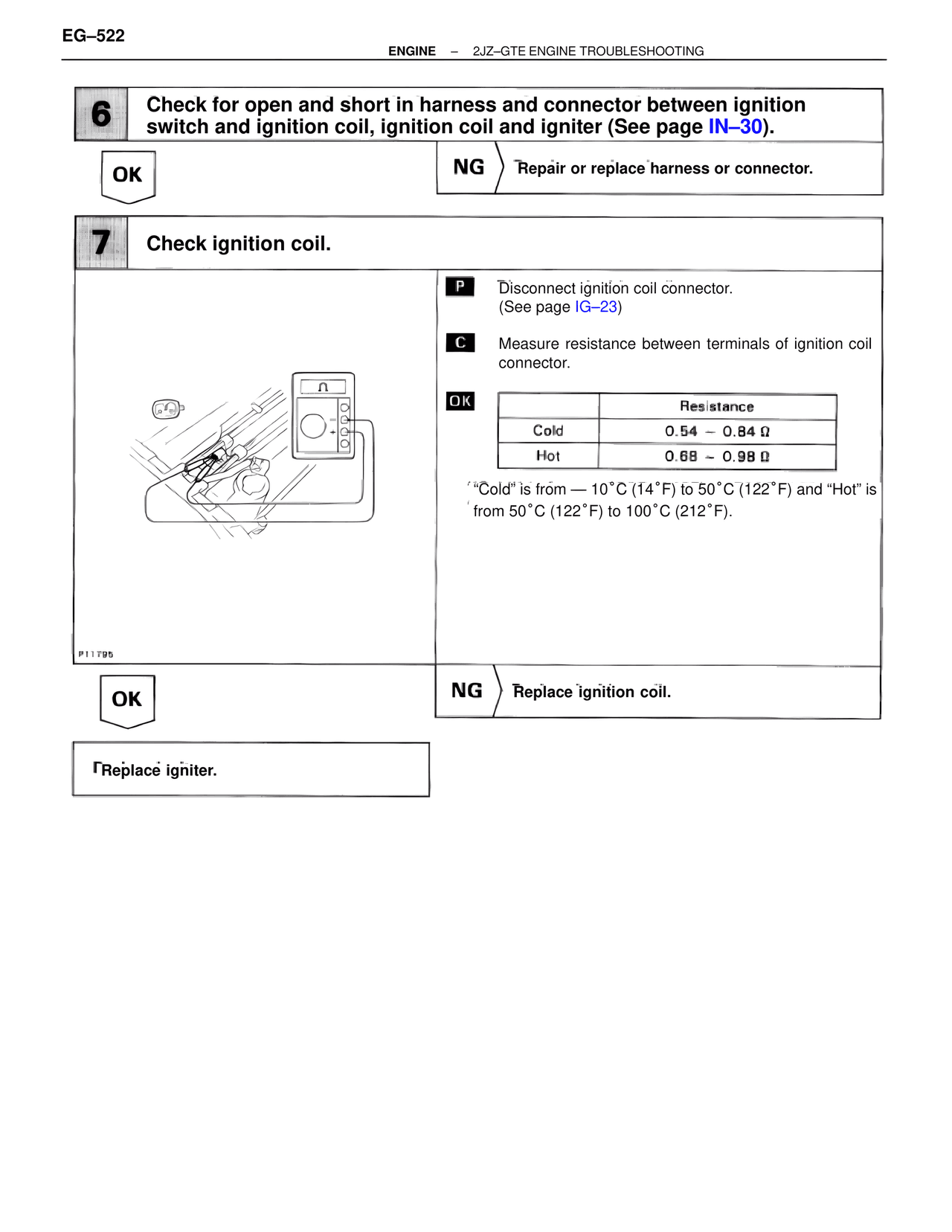

EG–522
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
6 Check for open and short in harness and connector between ignition switch and ignition coil, ignition coil and igniter (See page IN–30).
OK
NG Repair or replace harness or connector.
7 Check ignition coil.
P Disconnect ignition coil connector.
(See page IG–23)
C Measure resistance between terminals of ignition coil connector.
OK
Resistance
Cold 0.54 – 0.84 Ω
Hot 0.68 – 0.98 Ω
"Cold" is from — 10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
P11795
OK
NG Replace ignition coil.
Replace igniter.
