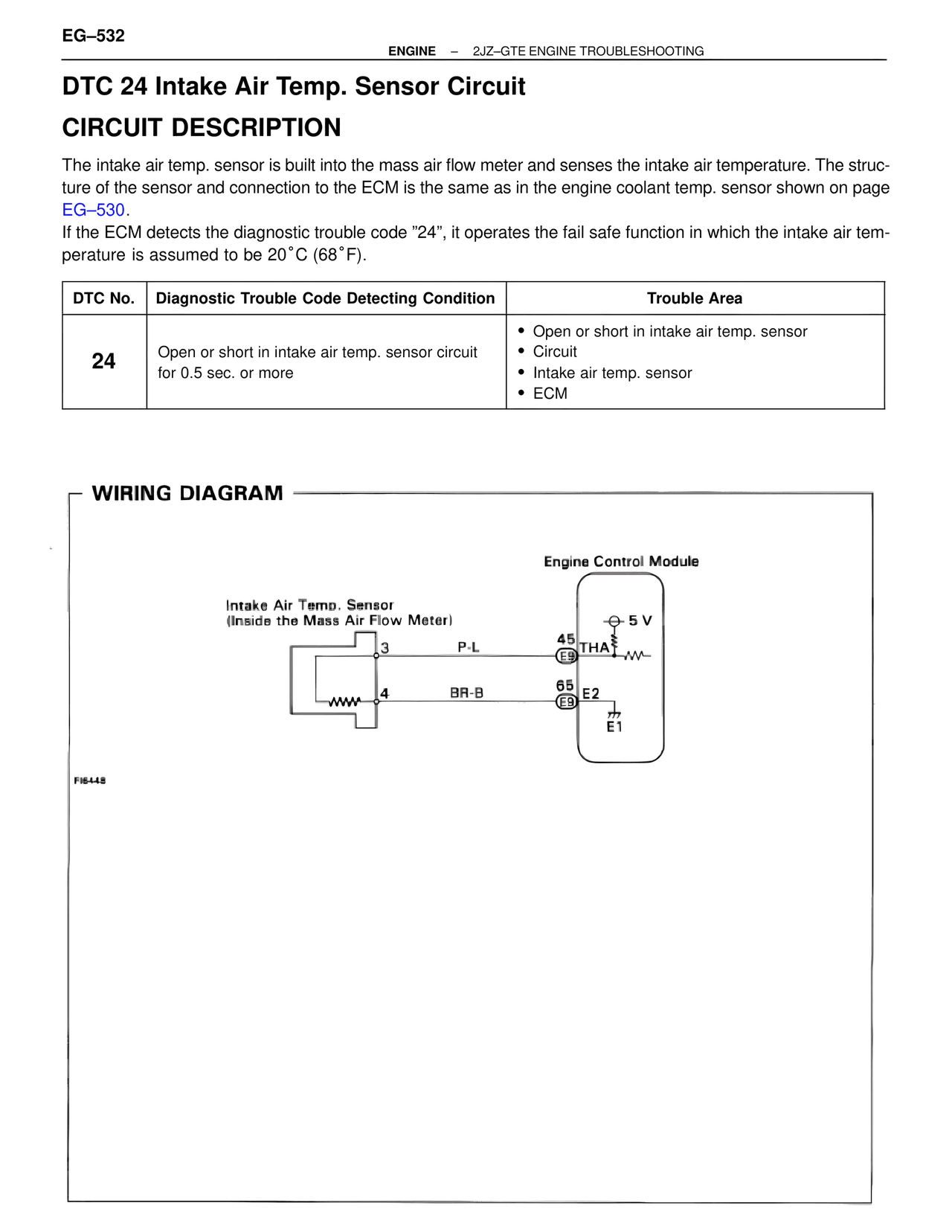

EG–532

ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING

DTC 24 Intake Air Temp. Sensor Circuit

CIRCUIT DESCRIPTION

The intake air temp. sensor is built into the mass air flow meter and senses the intake air temperature. The structure of the sensor and connection to the ECM is the same as in the engine coolant temp. sensor shown on page EG–530.
If the ECM detects the diagnostic trouble code "24", it operates the fail safe function in which the intake air temperature is assumed to be 20°C (68°F).

DTC No. | Diagnostic Trouble Code Detecting Condition | Trouble Area

24 | Open or short in intake air temp. sensor circuit for 0.5 sec. or more | • Open or short in intake air temp. sensor
• Circuit
• Intake air temp. sensor
• ECM

WIRING DIAGRAM

Intake Air Temp. Sensor
(Inside the Mass Air Flow Meter)

3     P-L

4     BR-B

Engine Control Module

5 V

45
E9  THA

65
E9  E2

E1

FI6448
