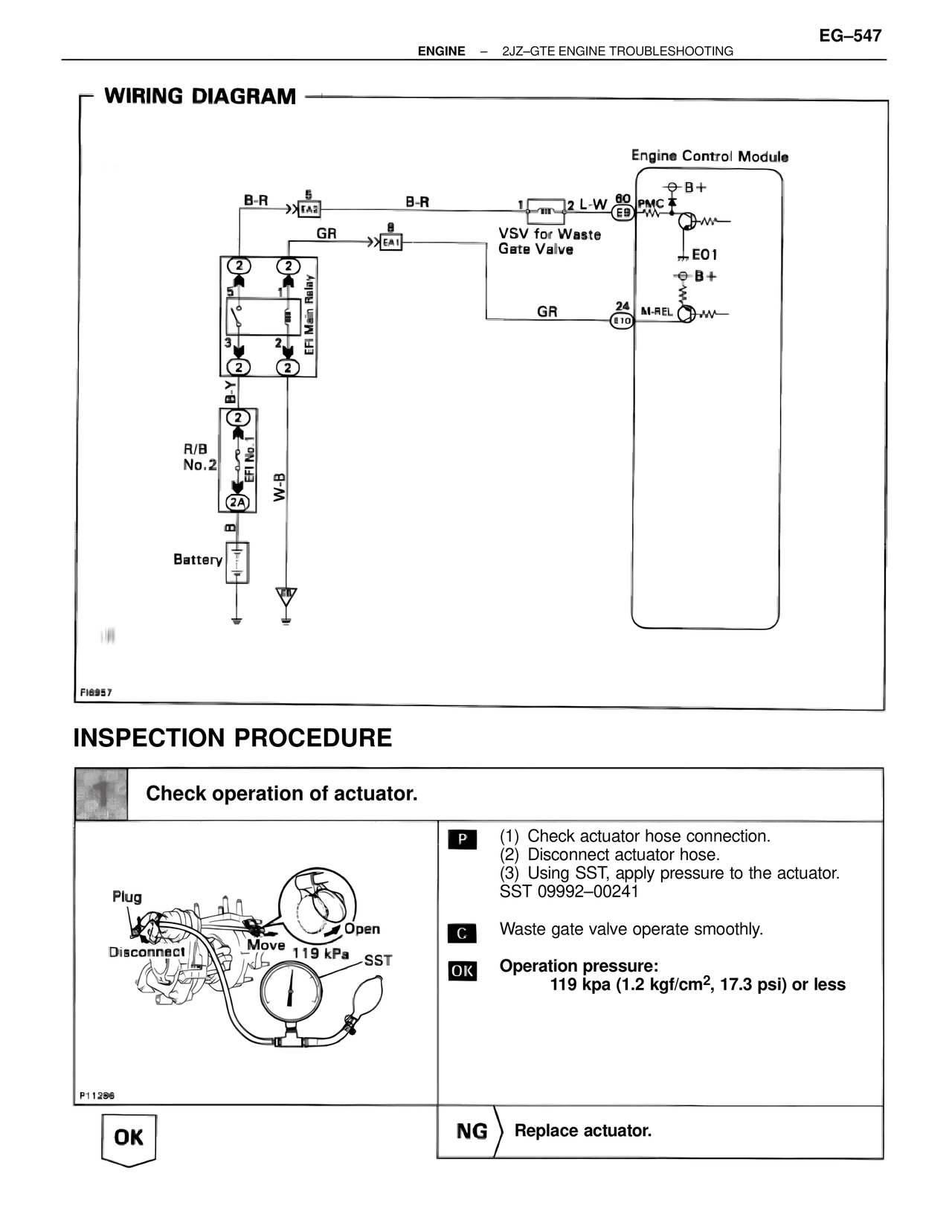

EG-547
ENGINE — 2JZ-GTE ENGINE TROUBLESHOOTING
WIRING DIAGRAM
Engine Control Module
B-R 6
>>EA2 B-R 1 2 L-W 60
E9 PMC B+
GR 8
>>EA1
VSV for Waste
Gate Valve
E01
B+
2 2
5
EFI Main Relay
M-REL
3 2
2 2
GR 24
E10 M-REL
B-Y
2
R/B
No.2
EFI No.
W-B
2A
B
Battery
FI6957
INSPECTION PROCEDURE
1 Check operation of actuator.
P (1) Check actuator hose connection.
(2) Disconnect actuator hose.
(3) Using SST, apply pressure to the actuator.
SST 09992-00241
Plug
Open
Move
Disconnect 119 kPa SST
C Waste gate valve operate smoothly.
OK Operation pressure:
119 kpa (1.2 kgf/cm2, 17.3 psi) or less
P11286
OK NG Replace actuator.
