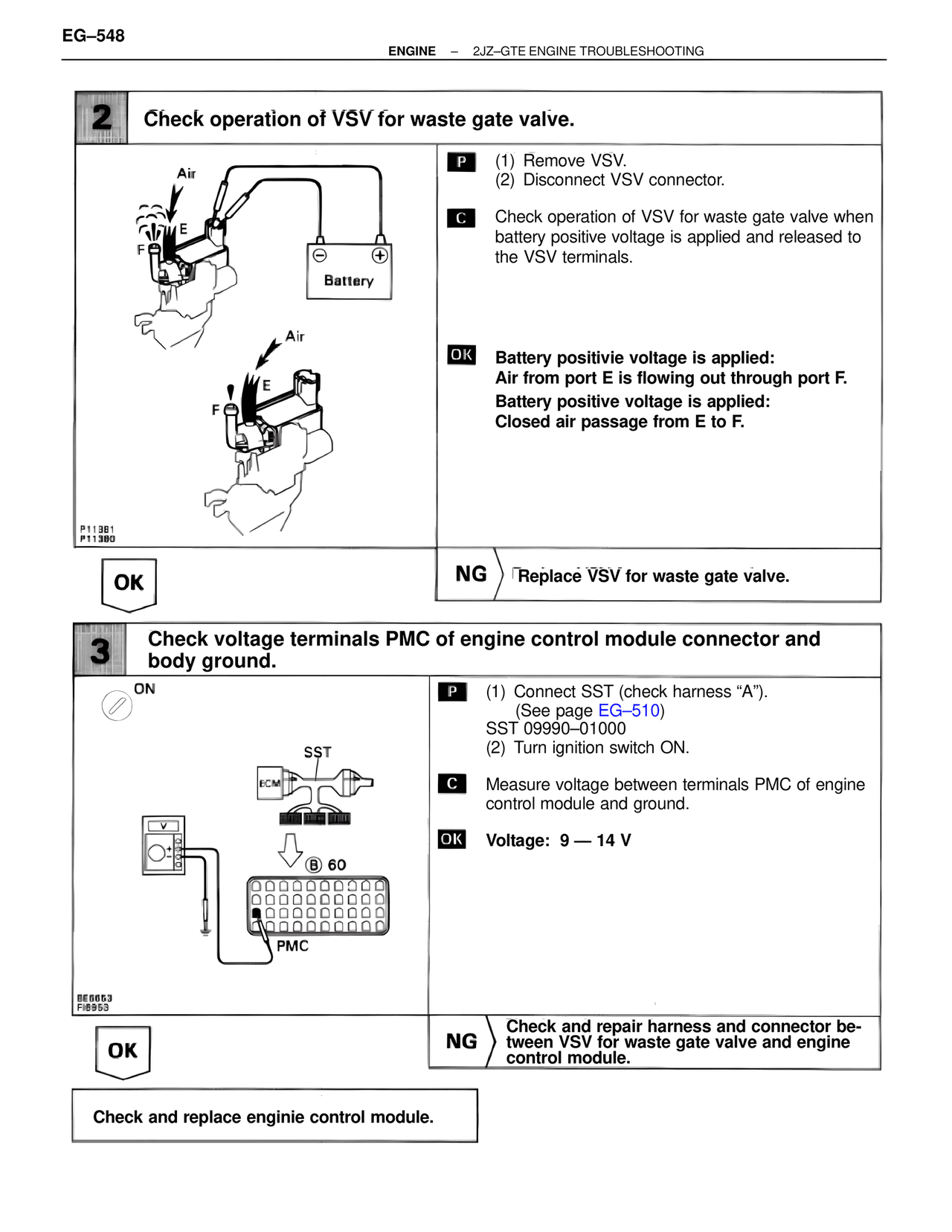

EG–548
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
2 Check operation of VSV for waste gate valve.
Air
E
F
Battery
Air
E
F
P11381
P11380
P (1) Remove VSV.
(2) Disconnect VSV connector.
C Check operation of VSV for waste gate valve when
battery positive voltage is applied and released to
the VSV terminals.
OK Battery positivie voltage is applied:
Air from port E is flowing out through port F.
Battery positive voltage is applied:
Closed air passage from E to F.
OK NG Replace VSV for waste gate valve.
3 Check voltage terminals PMC of engine control module connector and
body ground.
ON
SST
ECM
(B) 60
PMC
BE6653
FI6953
P (1) Connect SST (check harness "A").
(See page EG–510)
SST 09990–01000
(2) Turn ignition switch ON.
C Measure voltage between terminals PMC of engine
control module and ground.
OK Voltage: 9 — 14 V
OK NG Check and repair harness and connector be-
tween VSV for waste gate valve and engine
control module.
Check and replace enginie control module.
