EG-567
ENGINE — 2JZ-GTE ENGINE TROUBLESHOOTING
4 Check EGR system (See page EG-180).
OK NG Repair EGR system.

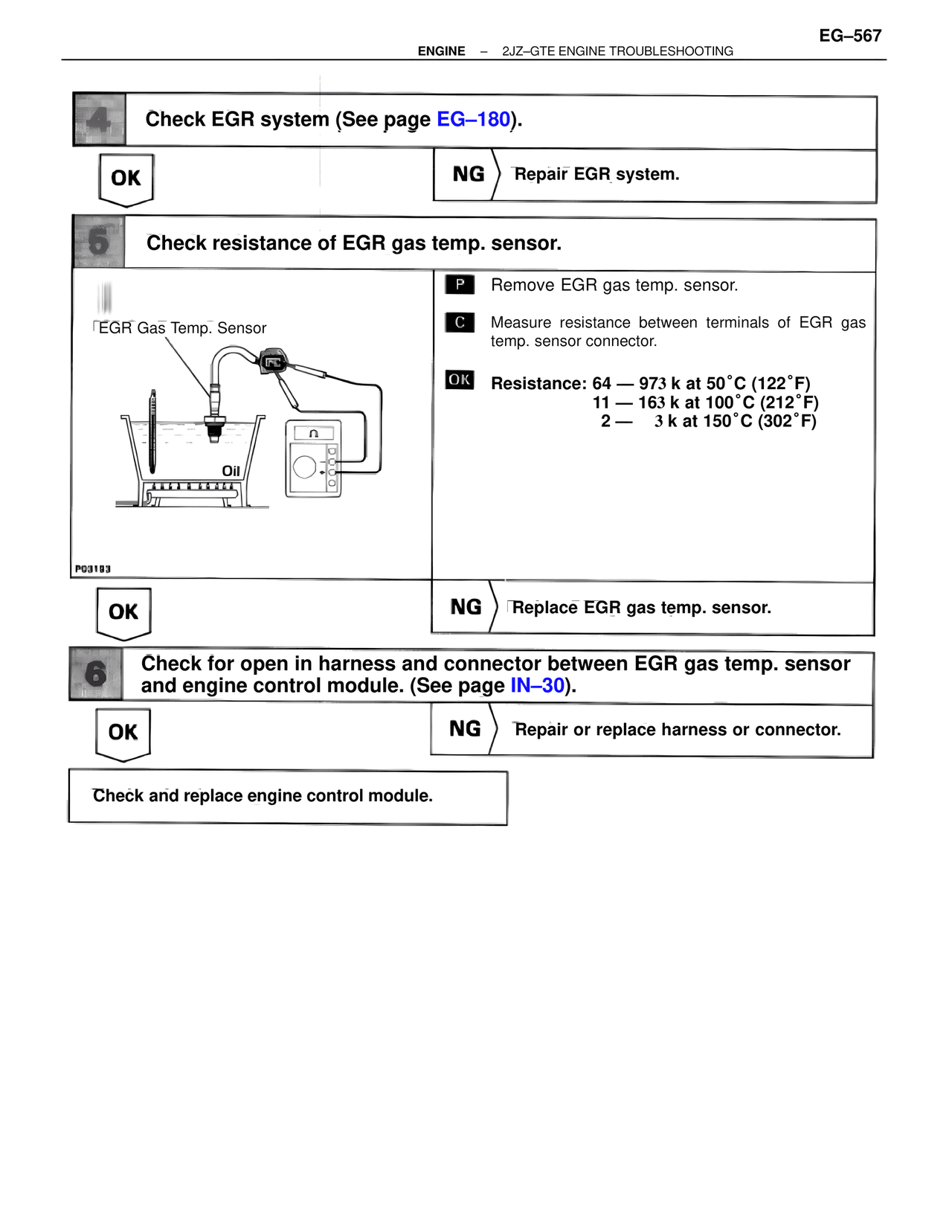

6 Check resistance of EGR gas temp. sensor.
EGR Gas Temp. Sensor
P Remove EGR gas temp. sensor.
C Measure resistance between terminals of EGR gas
temp. sensor connector.
OK Resistance: 64 — 973 k at 50°C (122°F)
11 — 163 k at 100°C (212°F)
2 — 3 k at 150°C (302°F)
Oil
P03193
OK NG Replace EGR gas temp. sensor.
6 Check for open in harness and connector between EGR gas temp. sensor
and engine control module. (See page IN-30).
OK NG Repair or replace harness or connector.
Check and replace engine control module.
