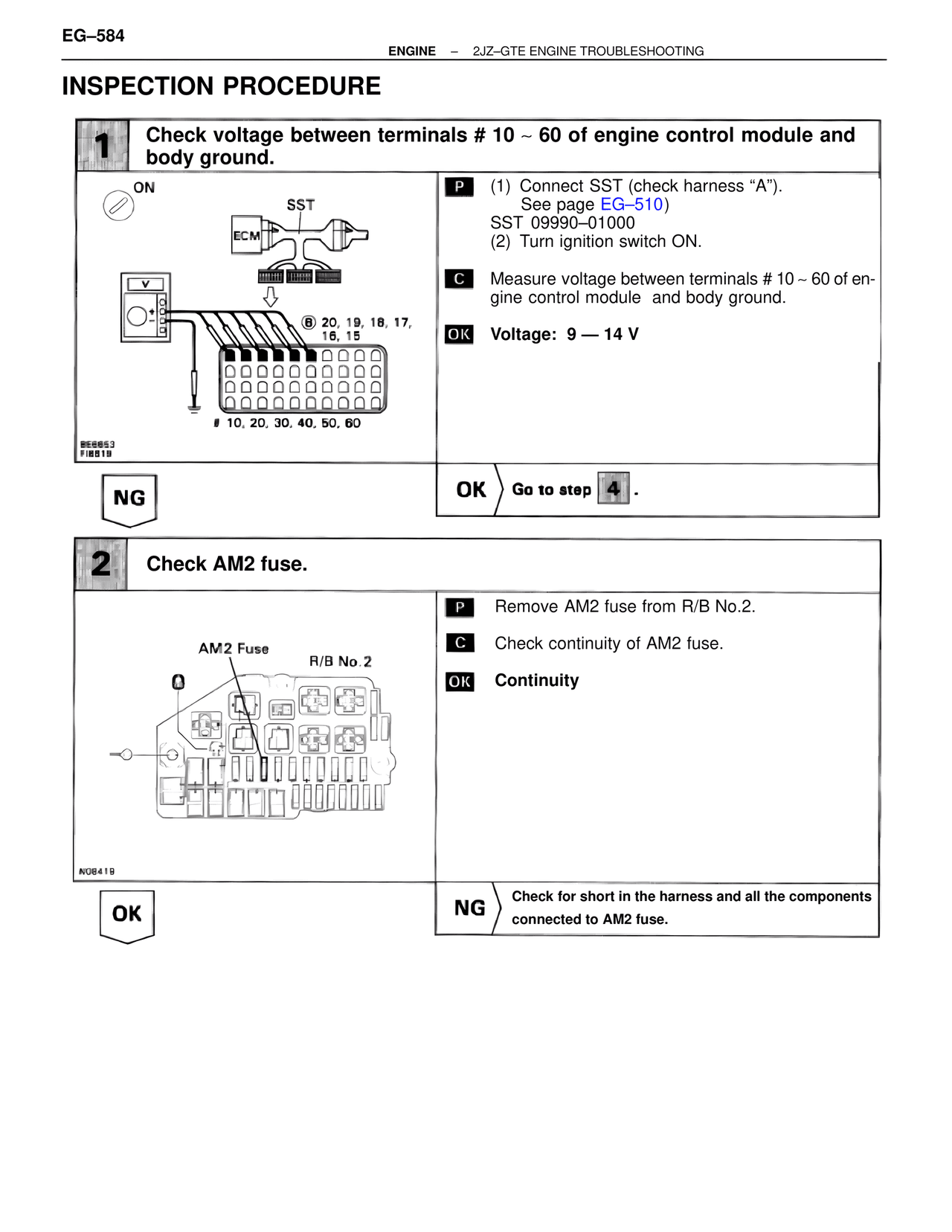

EG–584
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
INSPECTION PROCEDURE
1 Check voltage between terminals # 10 ~ 60 of engine control module and body ground.
ON
SST
ECM
(B) 20, 19, 18, 17,
16, 15
# 10, 20, 30, 40, 50, 60
8E6653
FI8819
P (1) Connect SST (check harness "A").
See page EG–510)
SST 09990–01000
(2) Turn ignition switch ON.
C Measure voltage between terminals # 10 ~ 60 of engine control module and body ground.
OK Voltage: 9 — 14 V
NG
OK Go to step 4 .
2 Check AM2 fuse.
AM2 Fuse R/B No.2
N08419
P Remove AM2 fuse from R/B No.2.
C Check continuity of AM2 fuse.
OK Continuity
OK
NG Check for short in the harness and all the components connected to AM2 fuse.
