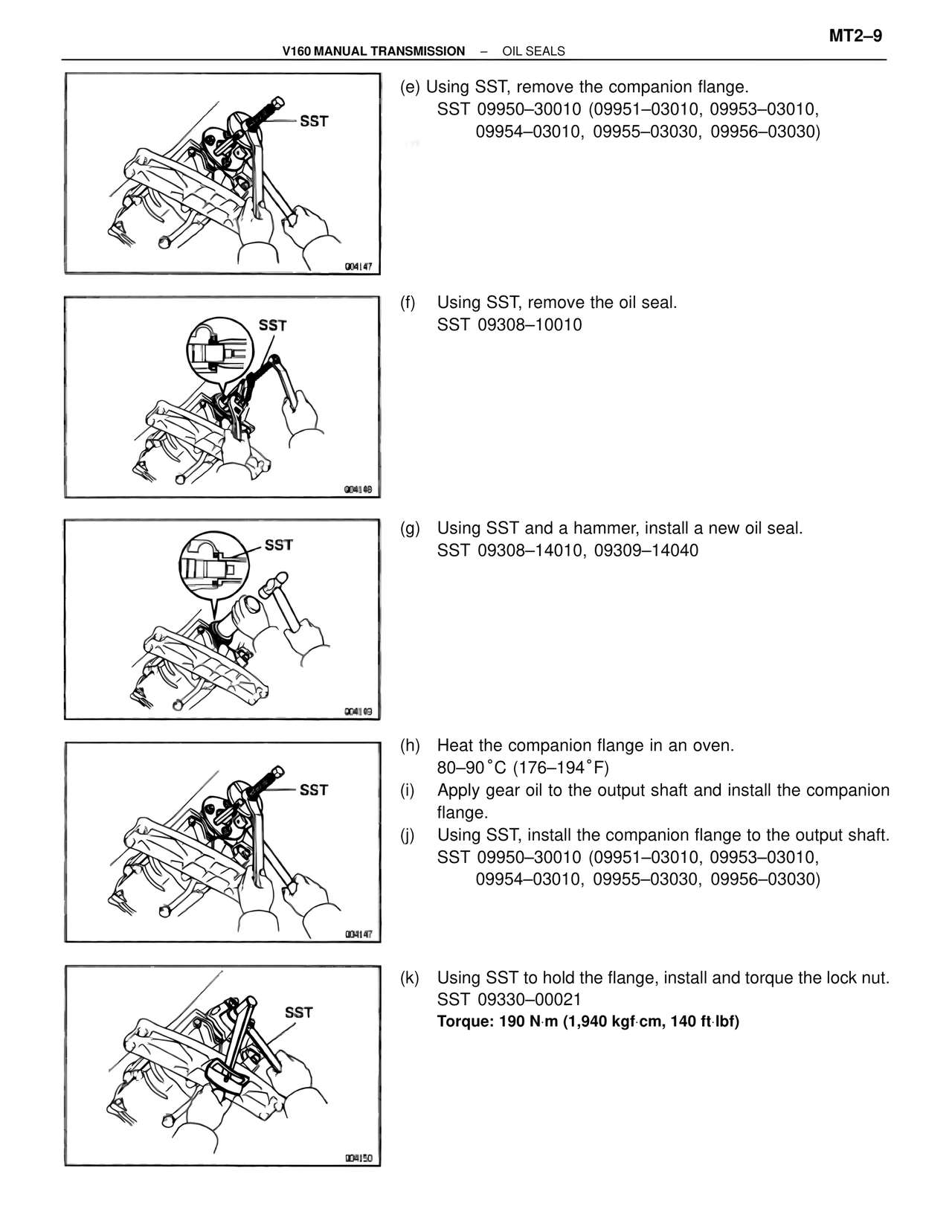

MT2–9
V160 MANUAL TRANSMISSION – OIL SEALS
SST
004147
(e) Using SST, remove the companion flange.
SST 09950–30010 (09951–03010, 09953–03010,
09954–03010, 09955–03030, 09956–03030)
SST
004148
(f) Using SST, remove the oil seal.
SST 09308–10010
SST
004149
(g) Using SST and a hammer, install a new oil seal.
SST 09308–14010, 09309–14040
SST
004147
(h) Heat the companion flange in an oven.
80–90°C (176–194°F)
(i) Apply gear oil to the output shaft and install the companion
flange.
(j) Using SST, install the companion flange to the output shaft.
SST 09950–30010 (09951–03010, 09953–03010,
09954–03010, 09955–03030, 09956–03030)
SST
004150
(k) Using SST to hold the flange, install and torque the lock nut.
SST 09330–00021
Torque: 190 N·m (1,940 kgf·cm, 140 ft·lbf)
