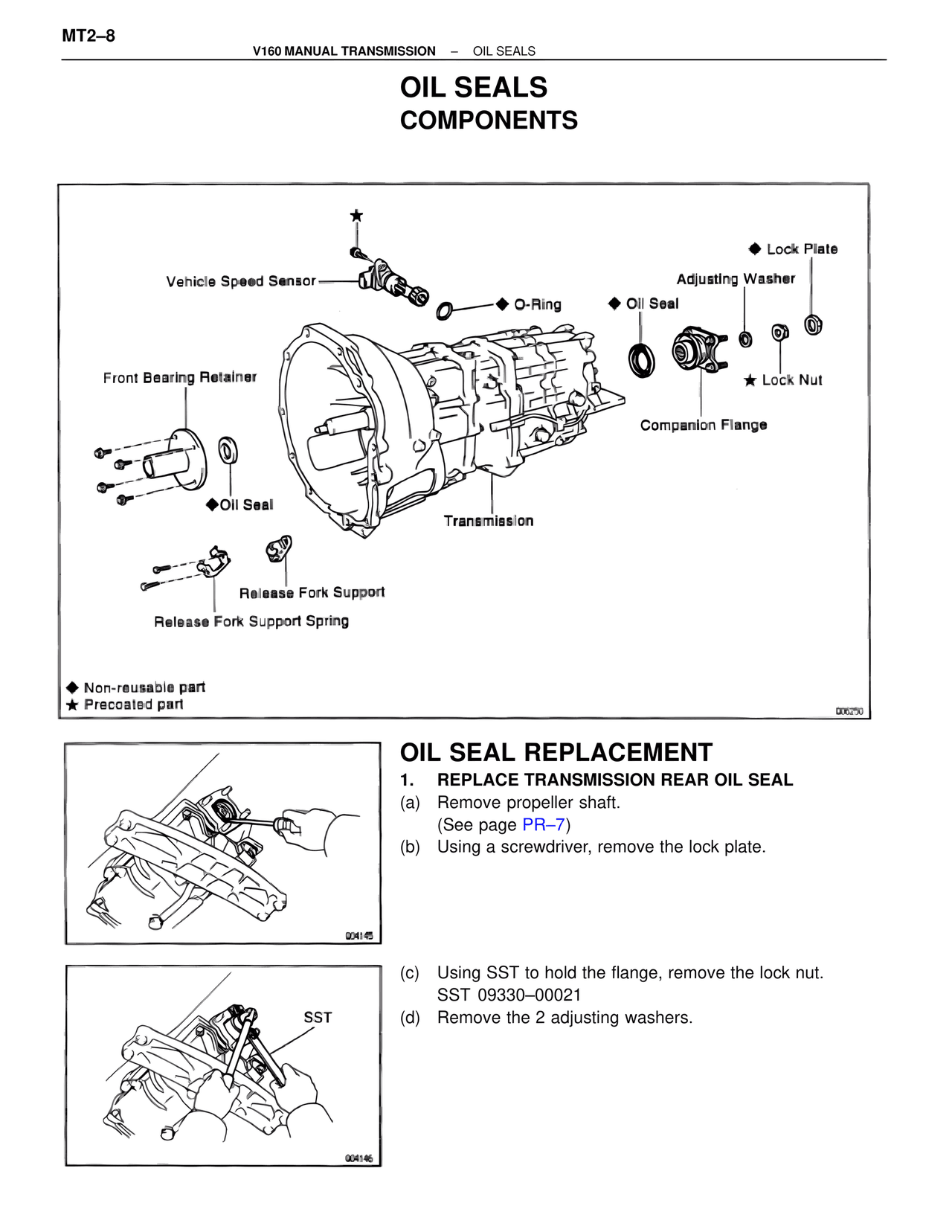

MT2–8
V160 MANUAL TRANSMISSION – OIL SEALS
OIL SEALS
COMPONENTS
★
Lock Plate ◆
Adjusting Washer
Vehicle Speed Sensor
O-Ring ◆
Oil Seal ◆
Front Bearing Retainer
★ Lock Nut
Companion Flange
◆Oil Seal
Transmission
Release Fork Support
Release Fork Support Spring
◆ Non-reusable part
★ Precoated part
006250
OIL SEAL REPLACEMENT
1. REPLACE TRANSMISSION REAR OIL SEAL
(a) Remove propeller shaft.
(See page PR–7)
(b) Using a screwdriver, remove the lock plate.
004145
SST
(c) Using SST to hold the flange, remove the lock nut.
SST 09330–00021
(d) Remove the 2 adjusting washers.
004146
