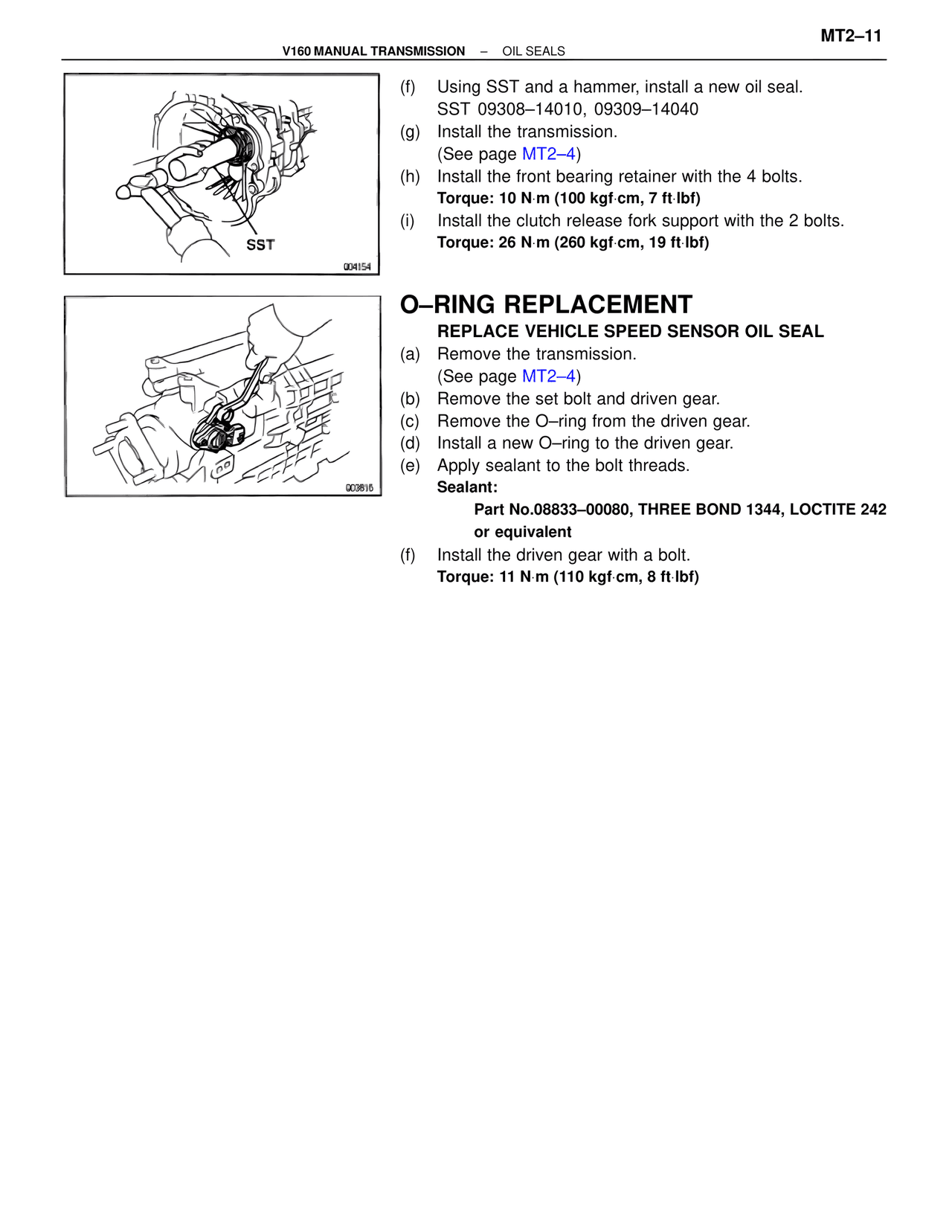

MT2–11
V160 MANUAL TRANSMISSION – OIL SEALS
(f) Using SST and a hammer, install a new oil seal.
SST 09308–14010, 09309–14040
(g) Install the transmission.
(See page MT2–4)
(h) Install the front bearing retainer with the 4 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
(i) Install the clutch release fork support with the 2 bolts.
Torque: 26 N·m (260 kgf·cm, 19 ft·lbf)
SST
004154
003616
O–RING REPLACEMENT
REPLACE VEHICLE SPEED SENSOR OIL SEAL
(a) Remove the transmission.
(See page MT2–4)
(b) Remove the set bolt and driven gear.
(c) Remove the O–ring from the driven gear.
(d) Install a new O–ring to the driven gear.
(e) Apply sealant to the bolt threads.
Sealant:
Part No.08833–00080, THREE BOND 1344, LOCTITE 242
or equivalent
(f) Install the driven gear with a bolt.
Torque: 11 N·m (110 kgf·cm, 8 ft·lbf)
