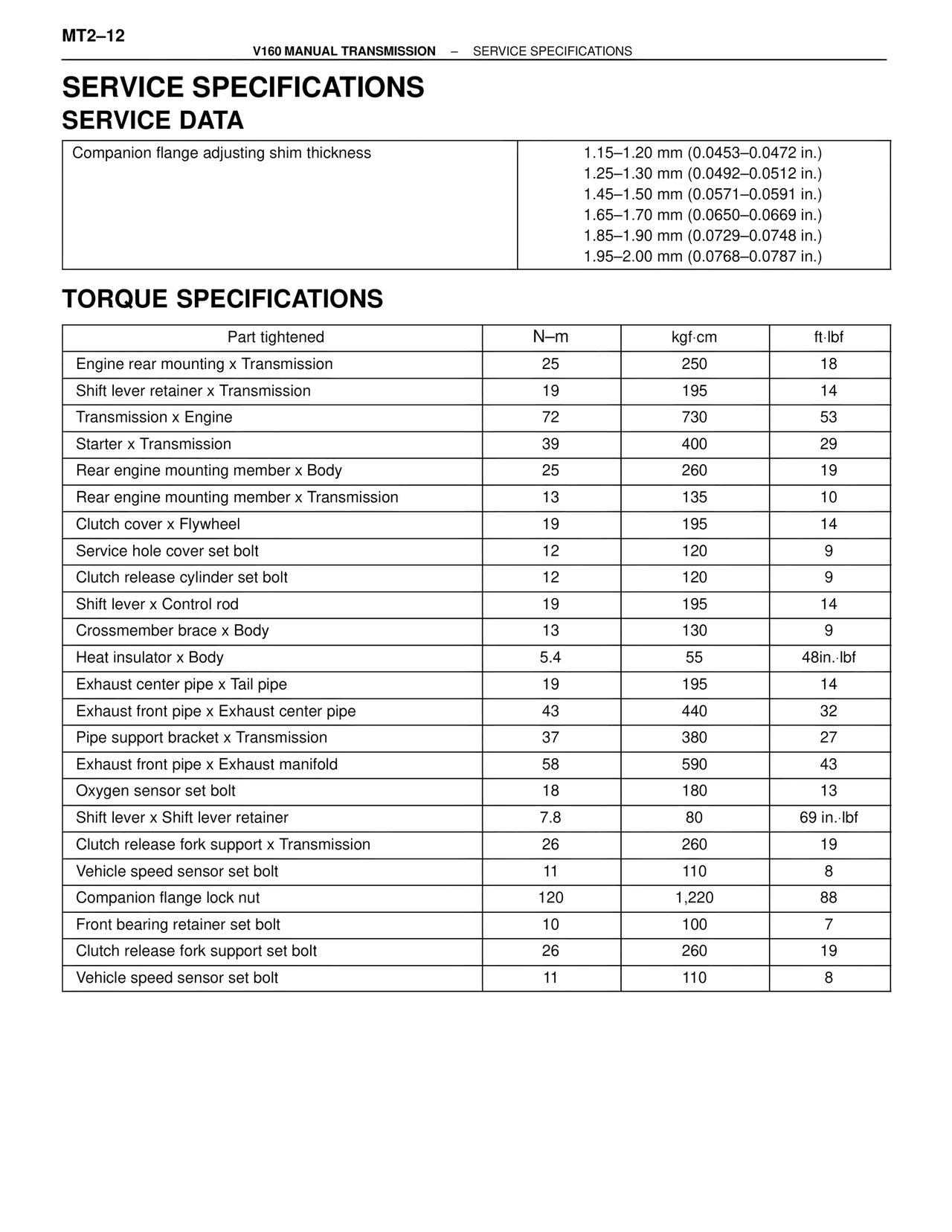

V160/V160/V161 Manual Transmission — Service Specifications Service Data, page 13

MT2–12
V160 MANUAL TRANSMISSION – SERVICE SPECIFICATIONS

SERVICE SPECIFICATIONS
SERVICE DATA

Companion flange adjusting shim thickness	1.15–1.20 mm (0.0453–0.0472 in.)
						1.25–1.30 mm (0.0492–0.0512 in.)
						1.45–1.50 mm (0.0571–0.0591 in.)
						1.65–1.70 mm (0.0650–0.0669 in.)
						1.85–1.90 mm (0.0729–0.0748 in.)
						1.95–2.00 mm (0.0768–0.0787 in.)

TORQUE SPECIFICATIONS

Part tightened	N–m	kgf·cm	ft·lbf

Engine rear mounting x Transmission	25	250	18
Shift lever retainer x Transmission	19	195	14
Transmission x Engine	72	730	53
Starter x Transmission	39	400	29
Rear engine mounting member x Body	25	260	19
Rear engine mounting member x Transmission	13	135	10
Clutch cover x Flywheel	19	195	14
Service hole cover set bolt	12	120	9
Clutch release cylinder set bolt	12	120	9
Shift lever x Control rod	19	195	14
Crossmember brace x Body	13	130	9
Heat insulator x Body	5.4	55	48in.·lbf
Exhaust center pipe x Tail pipe	19	195	14
Exhaust front pipe x Exhaust center pipe	43	440	32
Pipe support bracket x Transmission	37	380	27
Exhaust front pipe x Exhaust manifold	58	590	43
Oxygen sensor set bolt	18	180	13
Shift lever x Shift lever retainer	7.8	80	69 in.·lbf
Clutch release fork support x Transmission	26	260	19
Vehicle speed sensor set bolt	11	110	8
Companion flange lock nut	120	1,220	88
Front bearing retainer set bolt	10	100	7
Clutch release fork support set bolt	26	260	19
Vehicle speed sensor set bolt	11	110	8
