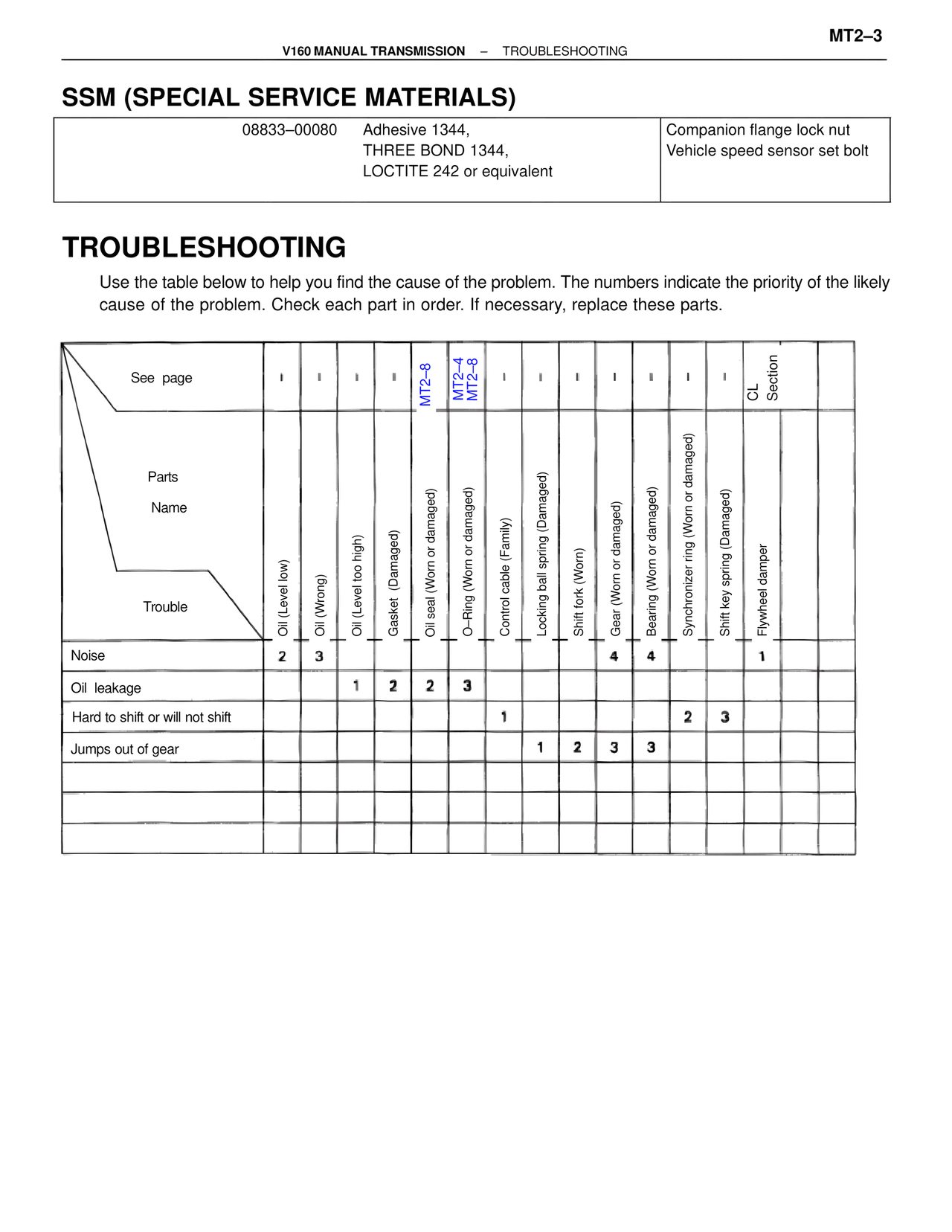

MT2–3
V160 MANUAL TRANSMISSION – TROUBLESHOOTING
SSM (SPECIAL SERVICE MATERIALS)
08833–00080 Adhesive 1344,
THREE BOND 1344,
LOCTITE 242 or equivalent
Companion flange lock nut
Vehicle speed sensor set bolt
TROUBLESHOOTING
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
See page
Parts
Name
Trouble
Oil (Level low)
Oil (Wrong)
Oil (Level too high)
Gasket (Damaged)
Oil seal (Worn or damaged)
O-Ring (Worn or damaged)
Control cable (Family)
Locking ball spring (Damaged)
Shift fork (Worn)
Gear (Worn or damaged)
Bearing (Worn or damaged)
Synchronizer ring (Worn or damaged)
Shift key spring (Damaged)
Flywheel damper
CL Section
See page: MT2–8 MT2–4 MT2–8
Noise 2 3 4 4 1
Oil leakage 1 2 2 3
Hard to shift or will not shift 1 2 3
Jumps out of gear 1 2 3 3
