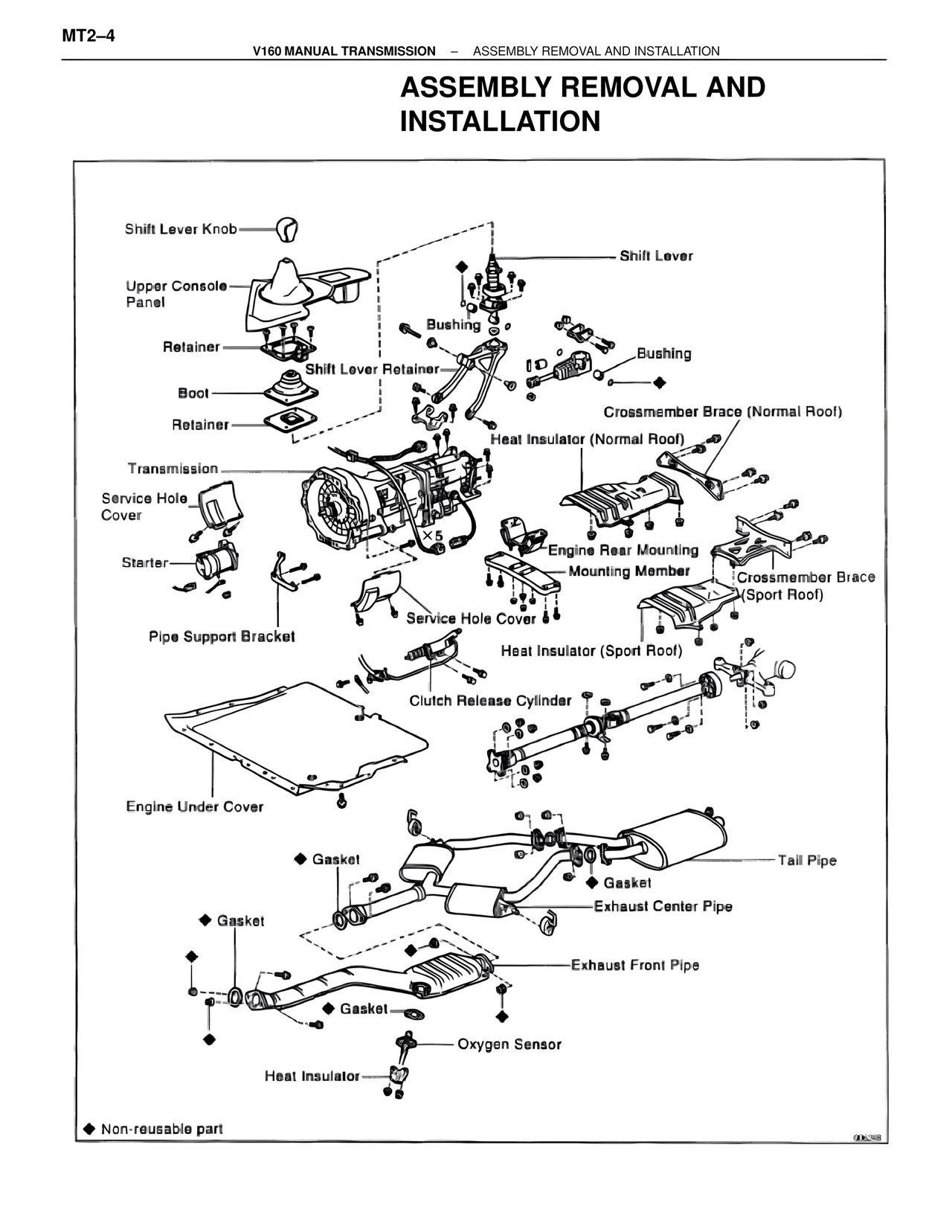

MT2–4 V160 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION ASSEMBLY REMOVAL AND INSTALLATION Shift Lever Knob Upper Console Panel Retainer Boot Retainer Transmission Service Hole Cover Starter Pipe Support Bracket Engine Under Cover Bushing Shift Lever Retainer Bushing Shift Lever Crossmember Brace (Normal Roof) Heat Insulator (Normal Roof) Engine Rear Mounting Mounting Member Crossmember Brace (Sport Roof) Service Hole Cover Heat Insulator (Sport Roof) Clutch Release Cylinder ♦ Gasket ♦ Gasket ♦ Gasket ♦ Gasket Tail Pipe ♦ Gasket Exhaust Center Pipe Exhaust Front Pipe Oxygen Sensor Heat Insulator ♦ Non-reusable part 006248
