MT2–5

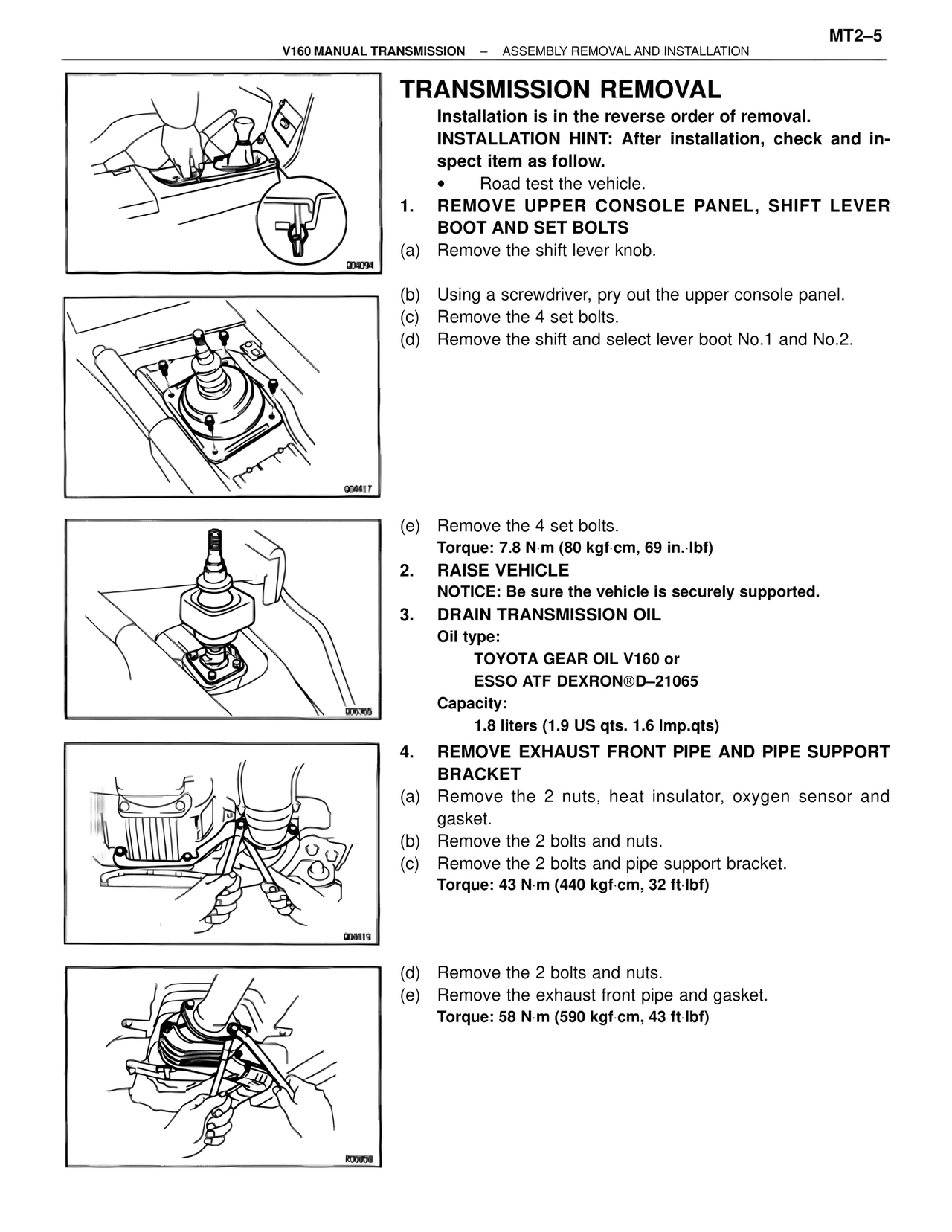

V160 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
TRANSMISSION REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, check and inspect item as follow.
• Road test the vehicle.
1. REMOVE UPPER CONSOLE PANEL, SHIFT LEVER BOOT AND SET BOLTS
(a) Remove the shift lever knob.
004094
004417
(b) Using a screwdriver, pry out the upper console panel.
(c) Remove the 4 set bolts.
(d) Remove the shift and select lever boot No.1 and No.2.
006365
(e) Remove the 4 set bolts.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
2. RAISE VEHICLE
NOTICE: Be sure the vehicle is securely supported.
3. DRAIN TRANSMISSION OIL
Oil type:
TOYOTA GEAR OIL V160 or
ESSO ATF DEXRON®D–21065
Capacity:
1.8 liters (1.9 US qts. 1.6 Imp.qts)
4. REMOVE EXHAUST FRONT PIPE AND PIPE SUPPORT BRACKET
(a) Remove the 2 nuts, heat insulator, oxygen sensor and gasket.
(b) Remove the 2 bolts and nuts.
(c) Remove the 2 bolts and pipe support bracket.
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
004419
(d) Remove the 2 bolts and nuts.
(e) Remove the exhaust front pipe and gasket.
Torque: 58 N·m (590 kgf·cm, 43 ft·lbf)
R06858
