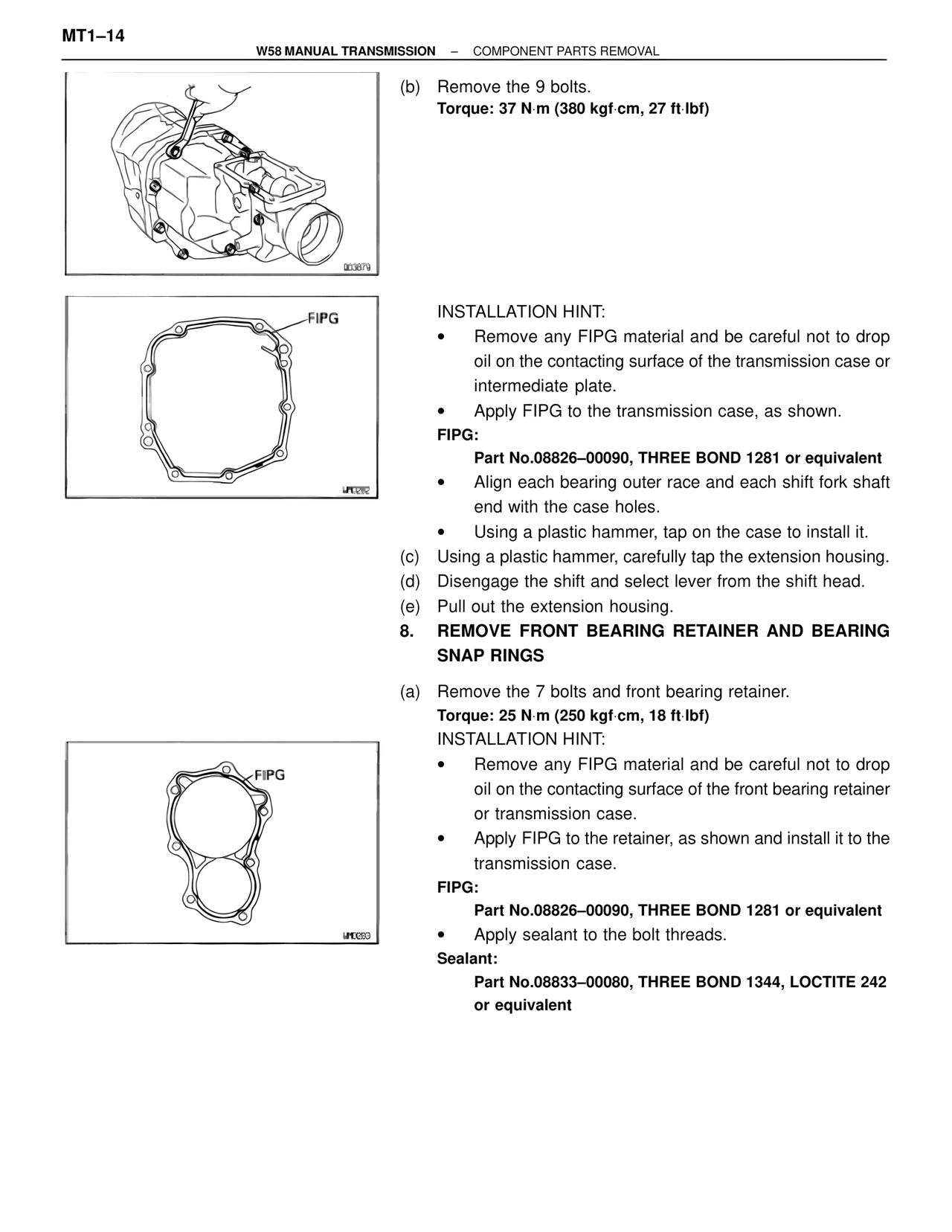

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
(b) Remove the 9 bolts.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)
FIPG
INSTALLATION HINT:
• Remove any FIPG material and be careful not to drop
oil on the contacting surface of the transmission case or
intermediate plate.
• Apply FIPG to the transmission case, as shown.
FIPG:
Part No.08826–00090, THREE BOND 1281 or equivalent
• Align each bearing outer race and each shift fork shaft
end with the case holes.
• Using a plastic hammer, tap on the case to install it.
(c) Using a plastic hammer, carefully tap the extension housing.
(d) Disengage the shift and select lever from the shift head.
(e) Pull out the extension housing.
8. REMOVE FRONT BEARING RETAINER AND BEARING
SNAP RINGS
(a) Remove the 7 bolts and front bearing retainer.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
INSTALLATION HINT:
• Remove any FIPG material and be careful not to drop
oil on the contacting surface of the front bearing retainer
or transmission case.
• Apply FIPG to the retainer, as shown and install it to the
transmission case.
FIPG:
Part No.08826–00090, THREE BOND 1281 or equivalent
• Apply sealant to the bolt threads.
Sealant:
Part No.08833–00080, THREE BOND 1344, LOCTITE 242
or equivalent
FIPG
