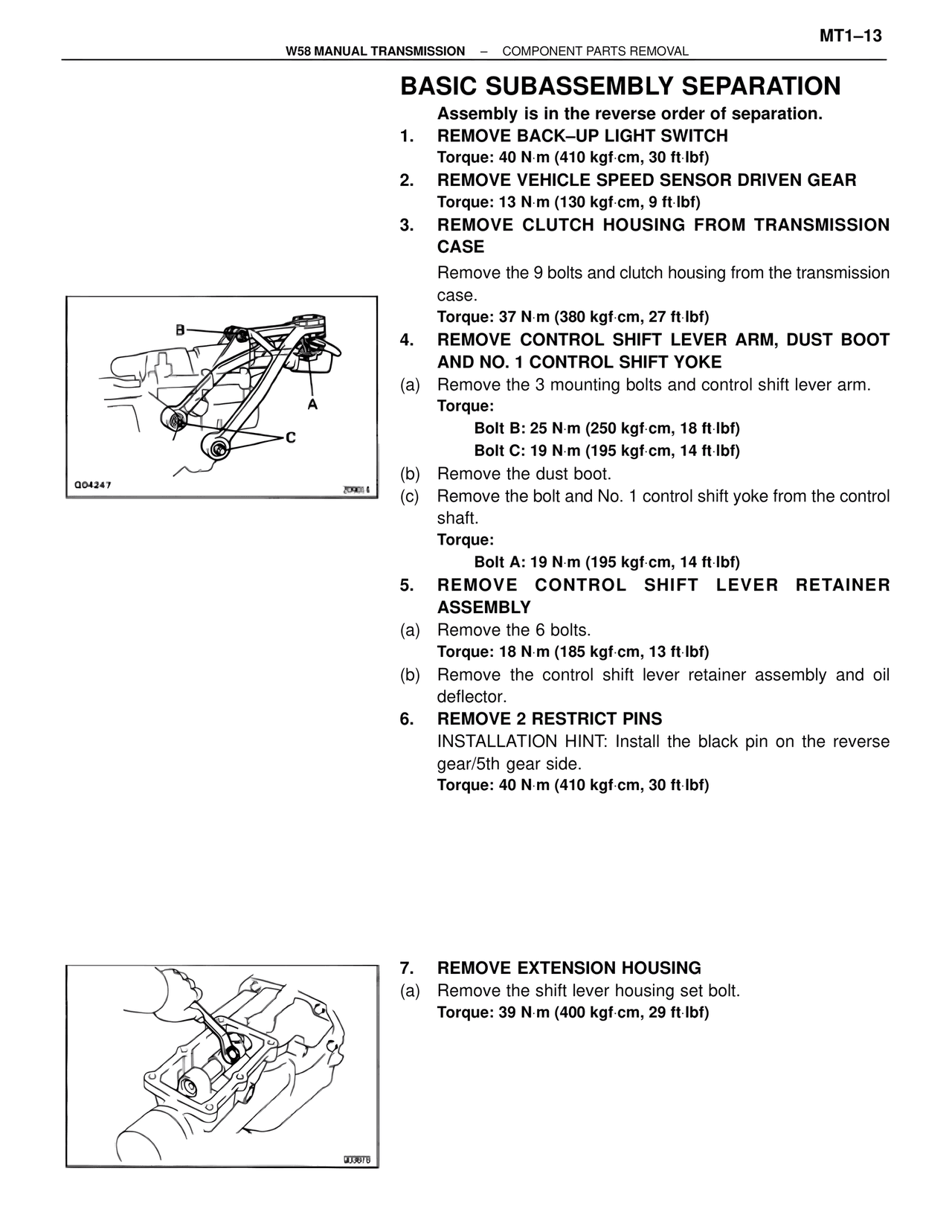

BASIC SUBASSEMBLY SEPARATION Assembly is in the reverse order of separation. 1. REMOVE BACK–UP LIGHT SWITCH Torque: 40 N·m (410 kgf·cm, 30 ft·lbf) 2. REMOVE VEHICLE SPEED SENSOR DRIVEN GEAR Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) 3. REMOVE CLUTCH HOUSING FROM TRANSMISSION CASE Remove the 9 bolts and clutch housing from the transmission case. Torque: 37 N·m (380 kgf·cm, 27 ft·lbf) 4. REMOVE CONTROL SHIFT LEVER ARM, DUST BOOT AND NO. 1 CONTROL SHIFT YOKE (a) Remove the 3 mounting bolts and control shift lever arm. Torque: Bolt B: 25 N·m (250 kgf·cm, 18 ft·lbf) Bolt C: 19 N·m (195 kgf·cm, 14 ft·lbf) (b) Remove the dust boot. (c) Remove the bolt and No. 1 control shift yoke from the control shaft. Torque: Bolt A: 19 N·m (195 kgf·cm, 14 ft·lbf) 5. REMOVE CONTROL SHIFT LEVER RETAINER ASSEMBLY (a) Remove the 6 bolts. Torque: 18 N·m (185 kgf·cm, 13 ft·lbf) (b) Remove the control shift lever retainer assembly and oil deflector. 6. REMOVE 2 RESTRICT PINS INSTALLATION HINT: Install the black pin on the reverse gear/5th gear side. Torque: 40 N·m (410 kgf·cm, 30 ft·lbf) B A C Q04247 Z09014 7. REMOVE EXTENSION HOUSING (a) Remove the shift lever housing set bolt. Torque: 39 N·m (400 kgf·cm, 29 ft·lbf) O03678
