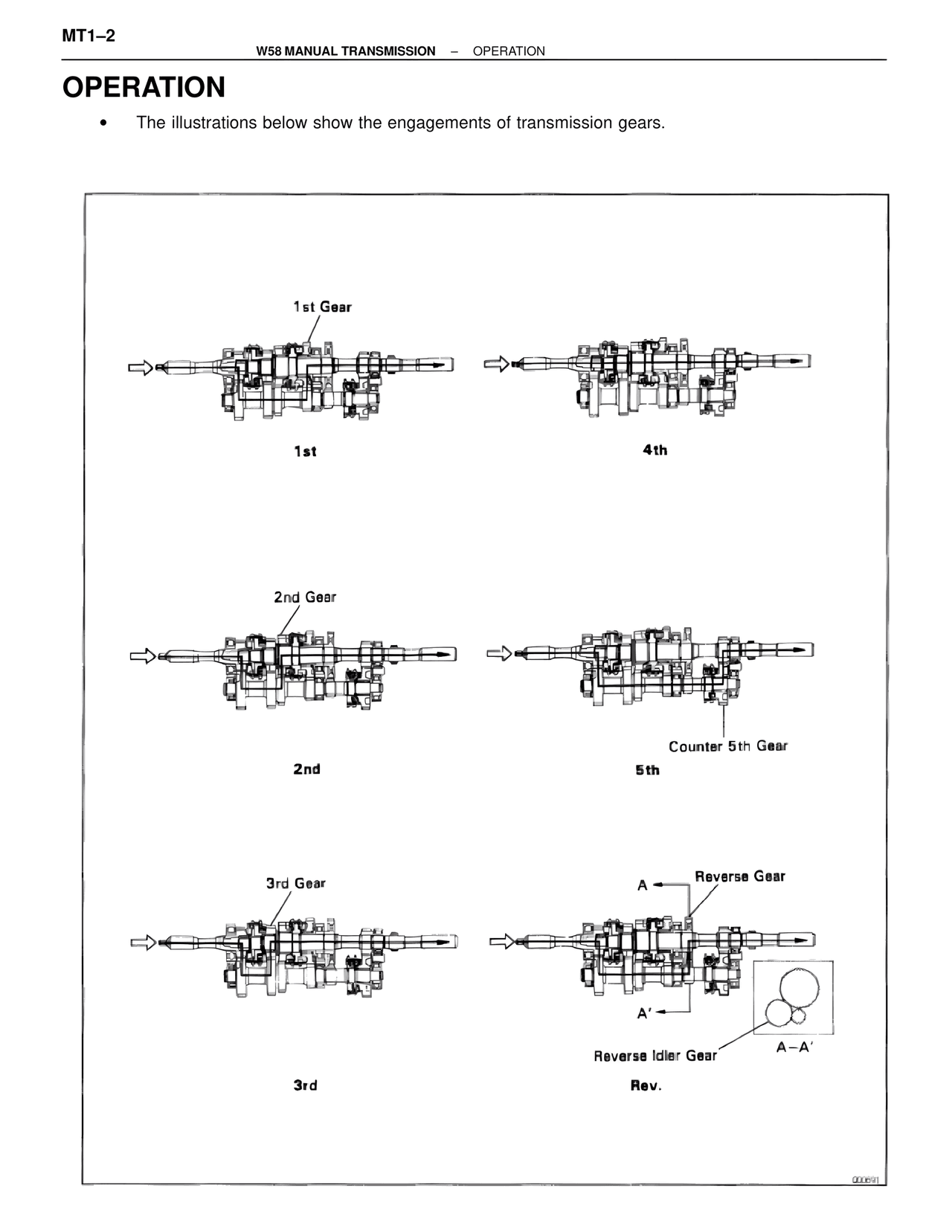

MT1–2 W58 MANUAL TRANSMISSION – OPERATION OPERATION • The illustrations below show the engagements of transmission gears. 1st Gear 1st 4th 2nd Gear 2nd Counter 5th Gear 5th 3rd Gear Reverse Gear A A' Reverse Idler Gear A–A' 3rd Rev. 000691
