W58/W58 Manual Transmission — Preparation SST (Special Service Tools, page 3

MT1–3

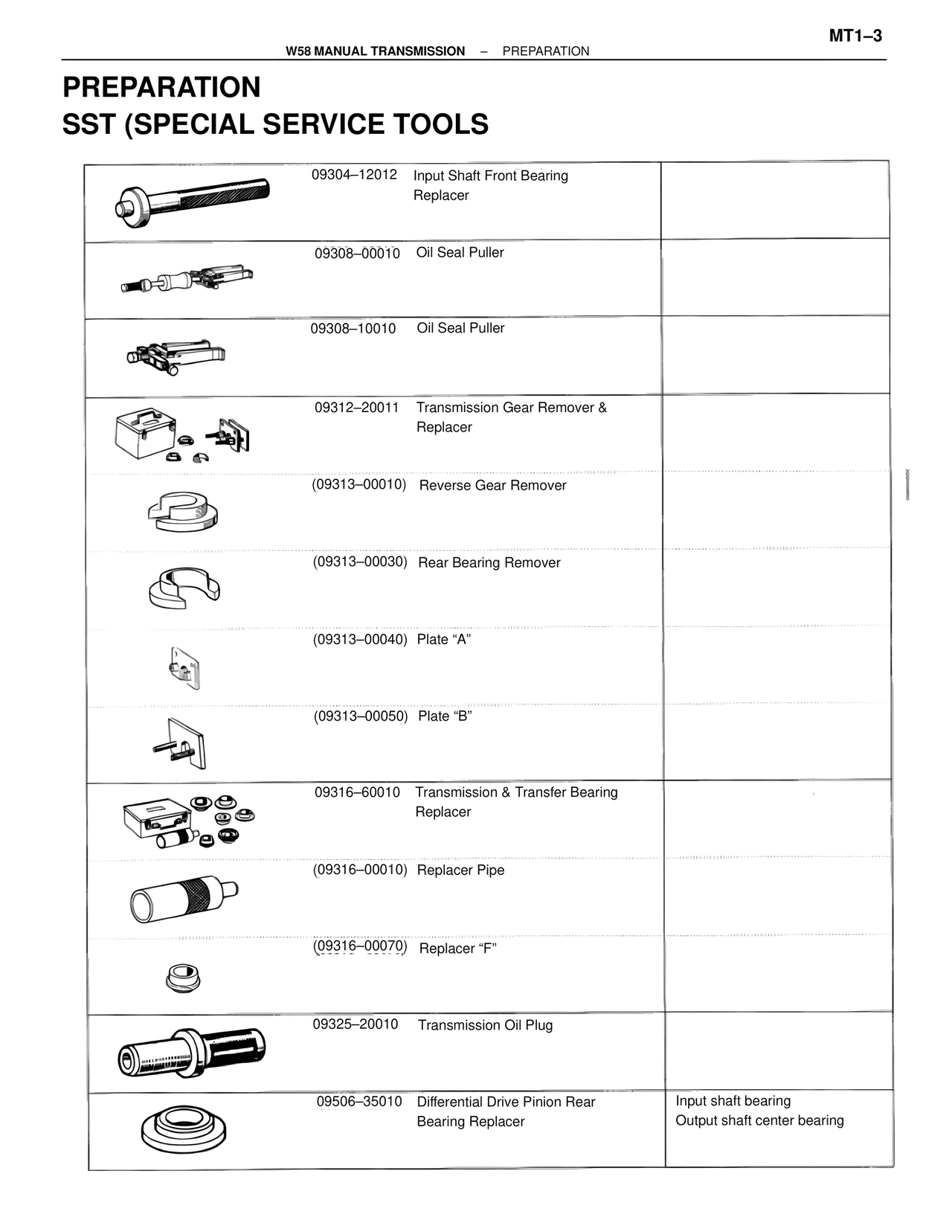

W58 MANUAL TRANSMISSION – PREPARATION

PREPARATION
SST (SPECIAL SERVICE TOOLS

09304–12012    Input Shaft Front Bearing
               Replacer

09308–00010    Oil Seal Puller

09308–10010    Oil Seal Puller

09312–20011    Transmission Gear Remover &
               Replacer

(09313–00010)  Reverse Gear Remover

(09313–00030)  Rear Bearing Remover

(09313–00040)  Plate "A"

(09313–00050)  Plate "B"

09316–60010    Transmission & Transfer Bearing
               Replacer

(09316–00010)  Replacer Pipe

(09316–00070)  Replacer "F"

09325–20010    Transmission Oil Plug

09506–35010    Differential Drive Pinion Rear    Input shaft bearing
               Bearing Replacer                  Output shaft center bearing
