W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
MT1–21

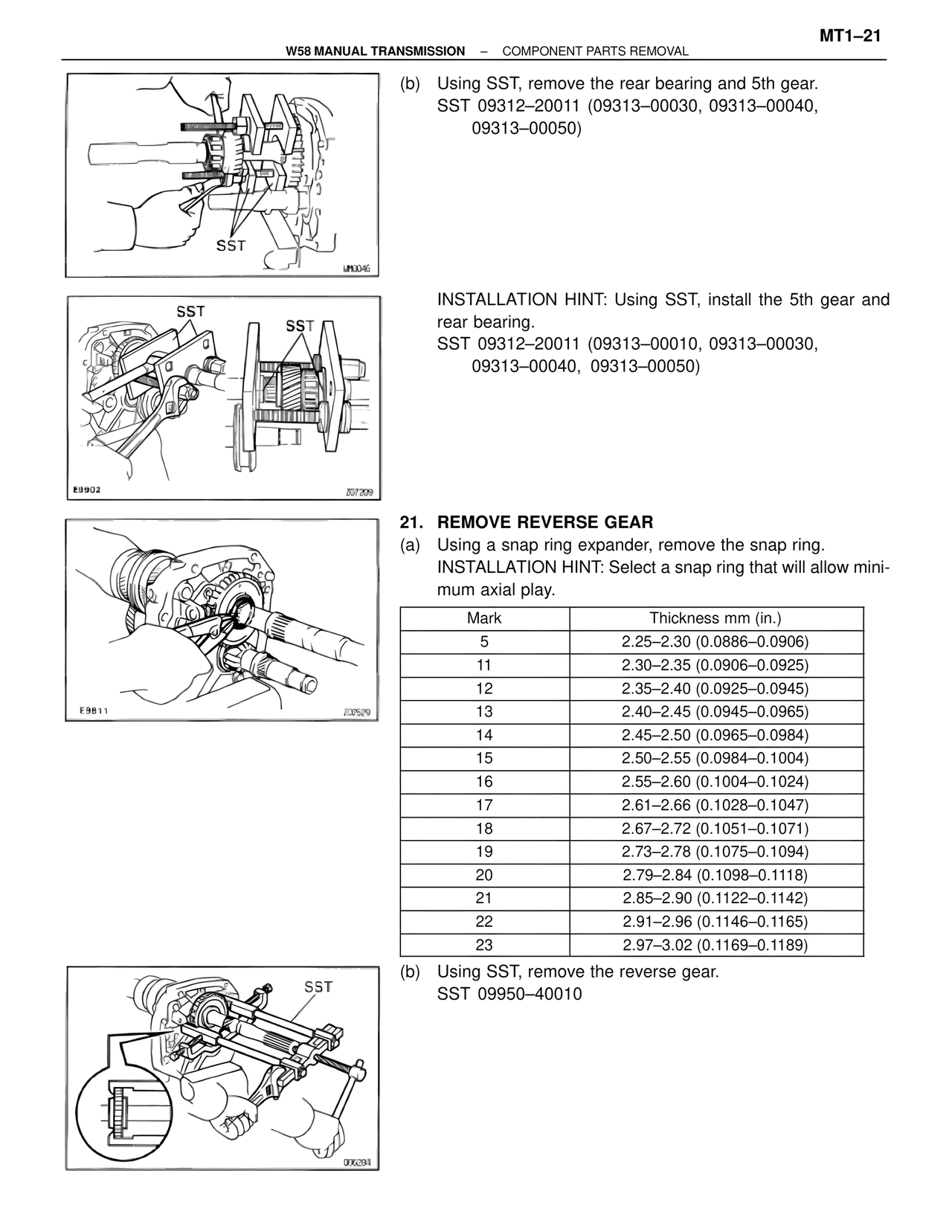

(b) Using SST, remove the rear bearing and 5th gear.
SST 09312–20011 (09313–00030, 09313–00040,
09313–00050)
INSTALLATION HINT: Using SST, install the 5th gear and
rear bearing.
SST 09312–20011 (09313–00010, 09313–00030,
09313–00040, 09313–00050)
21. REMOVE REVERSE GEAR
(a) Using a snap ring expander, remove the snap ring.
INSTALLATION HINT: Select a snap ring that will allow mini-
mum axial play.
Mark | Thickness mm (in.)
5 | 2.25–2.30 (0.0886–0.0906)
11 | 2.30–2.35 (0.0906–0.0925)
12 | 2.35–2.40 (0.0925–0.0945)
13 | 2.40–2.45 (0.0945–0.0965)
14 | 2.45–2.50 (0.0965–0.0984)
15 | 2.50–2.55 (0.0984–0.1004)
16 | 2.55–2.60 (0.1004–0.1024)
17 | 2.61–2.66 (0.1028–0.1047)
18 | 2.67–2.72 (0.1051–0.1071)
19 | 2.73–2.78 (0.1075–0.1094)
20 | 2.79–2.84 (0.1098–0.1118)
21 | 2.85–2.90 (0.1122–0.1142)
22 | 2.91–2.96 (0.1146–0.1165)
23 | 2.97–3.02 (0.1169–0.1189)
(b) Using SST, remove the reverse gear.
SST 09950–40010
