MT1–23

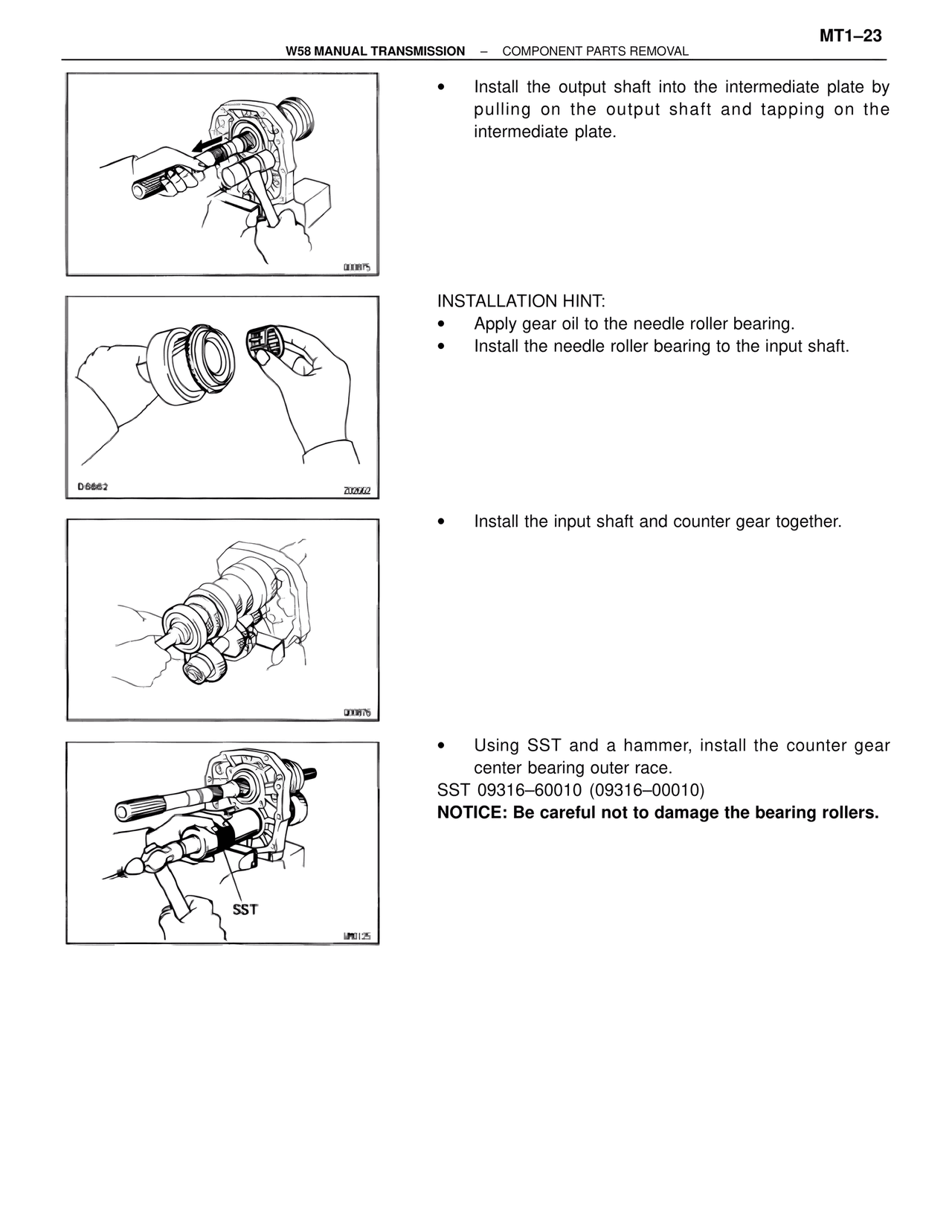

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
Install the output shaft into the intermediate plate by pulling on the output shaft and tapping on the intermediate plate.
INSTALLATION HINT:
• Apply gear oil to the needle roller bearing.
• Install the needle roller bearing to the input shaft.
• Install the input shaft and counter gear together.
• Using SST and a hammer, install the counter gear center bearing outer race.
SST 09316–60010 (09316–00010)
NOTICE: Be careful not to damage the bearing rollers.
SST
