MT1–24

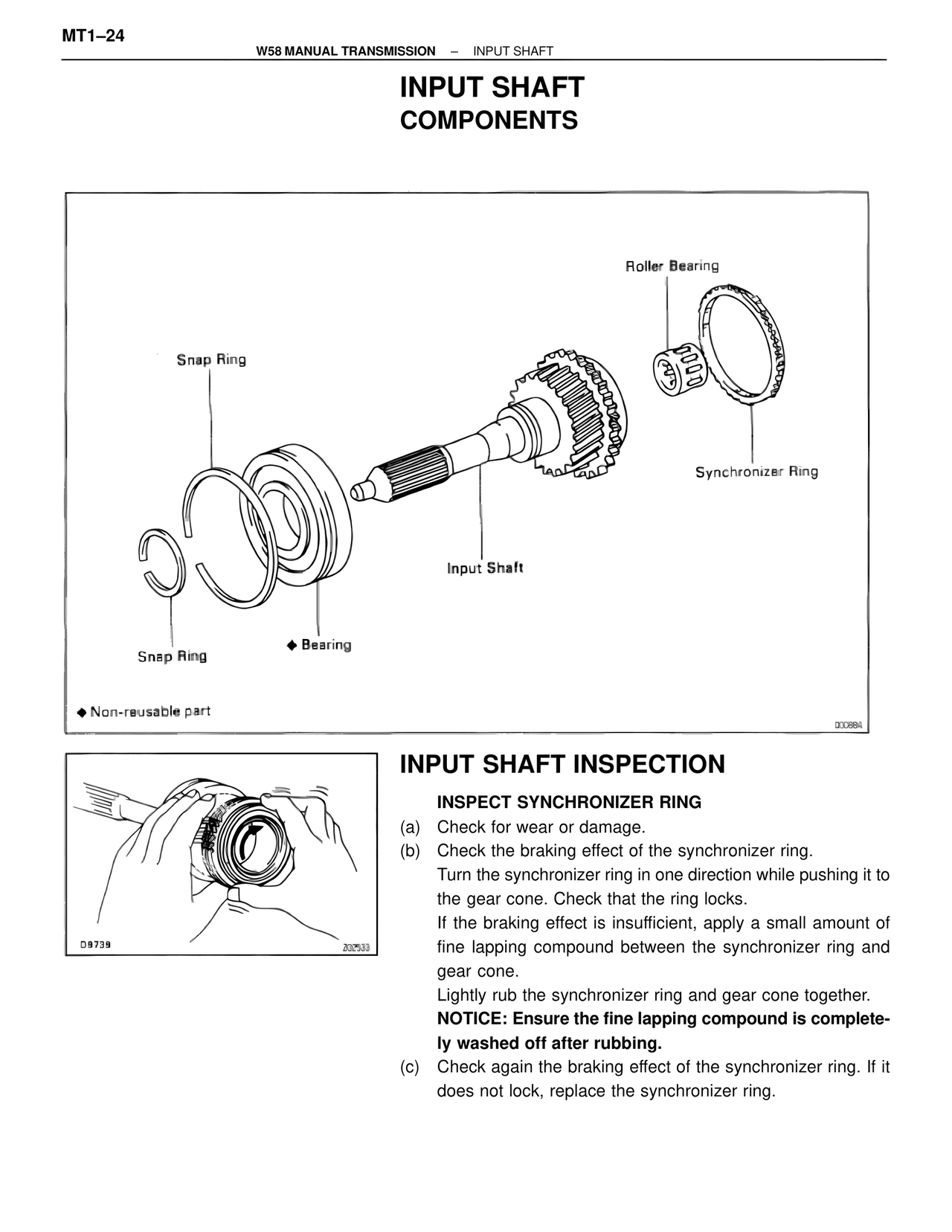

W58 MANUAL TRANSMISSION – INPUT SHAFT
INPUT SHAFT
COMPONENTS
Snap Ring
Snap Ring
♦ Bearing
Input Shaft
Roller Bearing
Synchronizer Ring
♦ Non-reusable part
000884
INPUT SHAFT INSPECTION
INSPECT SYNCHRONIZER RING
(a) Check for wear or damage.
(b) Check the braking effect of the synchronizer ring.
Turn the synchronizer ring in one direction while pushing it to
the gear cone. Check that the ring locks.
If the braking effect is insufficient, apply a small amount of
fine lapping compound between the synchronizer ring and
gear cone.
Lightly rub the synchronizer ring and gear cone together.
NOTICE: Ensure the fine lapping compound is complete-
ly washed off after rubbing.
(c) Check again the braking effect of the synchronizer ring. If it
does not lock, replace the synchronizer ring.
D9739
202533
