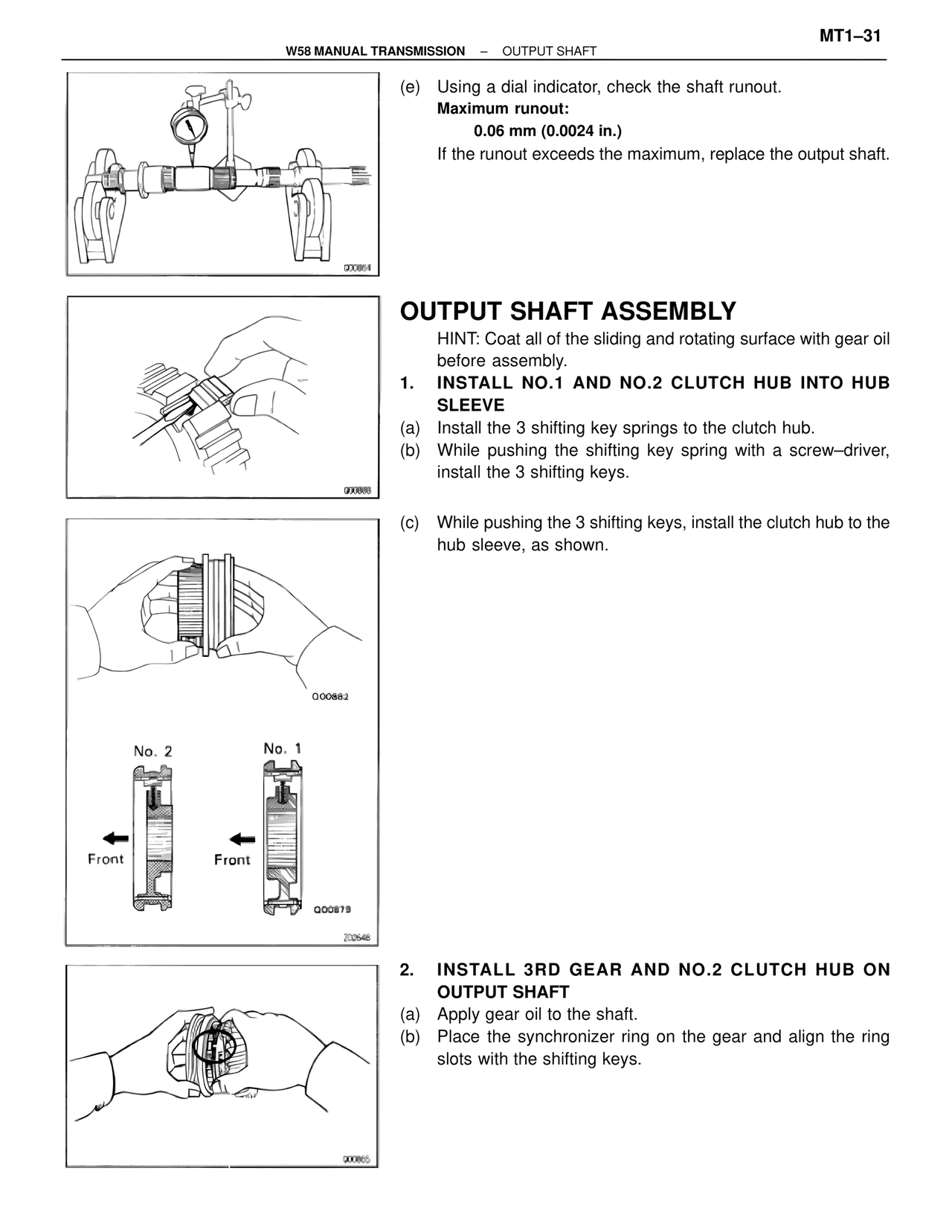

W58 MANUAL TRANSMISSION – OUTPUT SHAFT
MT1–31
(e) Using a dial indicator, check the shaft runout.
Maximum runout:
0.06 mm (0.0024 in.)
If the runout exceeds the maximum, replace the output shaft.
OUTPUT SHAFT ASSEMBLY
HINT: Coat all of the sliding and rotating surface with gear oil before assembly.
1. INSTALL NO.1 AND NO.2 CLUTCH HUB INTO HUB SLEEVE
(a) Install the 3 shifting key springs to the clutch hub.
(b) While pushing the shifting key spring with a screw–driver, install the 3 shifting keys.
(c) While pushing the 3 shifting keys, install the clutch hub to the hub sleeve, as shown.
No. 2 No. 1
Front Front
G00879
200548
2. INSTALL 3RD GEAR AND NO.2 CLUTCH HUB ON OUTPUT SHAFT
(a) Apply gear oil to the shaft.
(b) Place the synchronizer ring on the gear and align the ring slots with the shifting keys.
G00864
G00888
G00882
G00865
