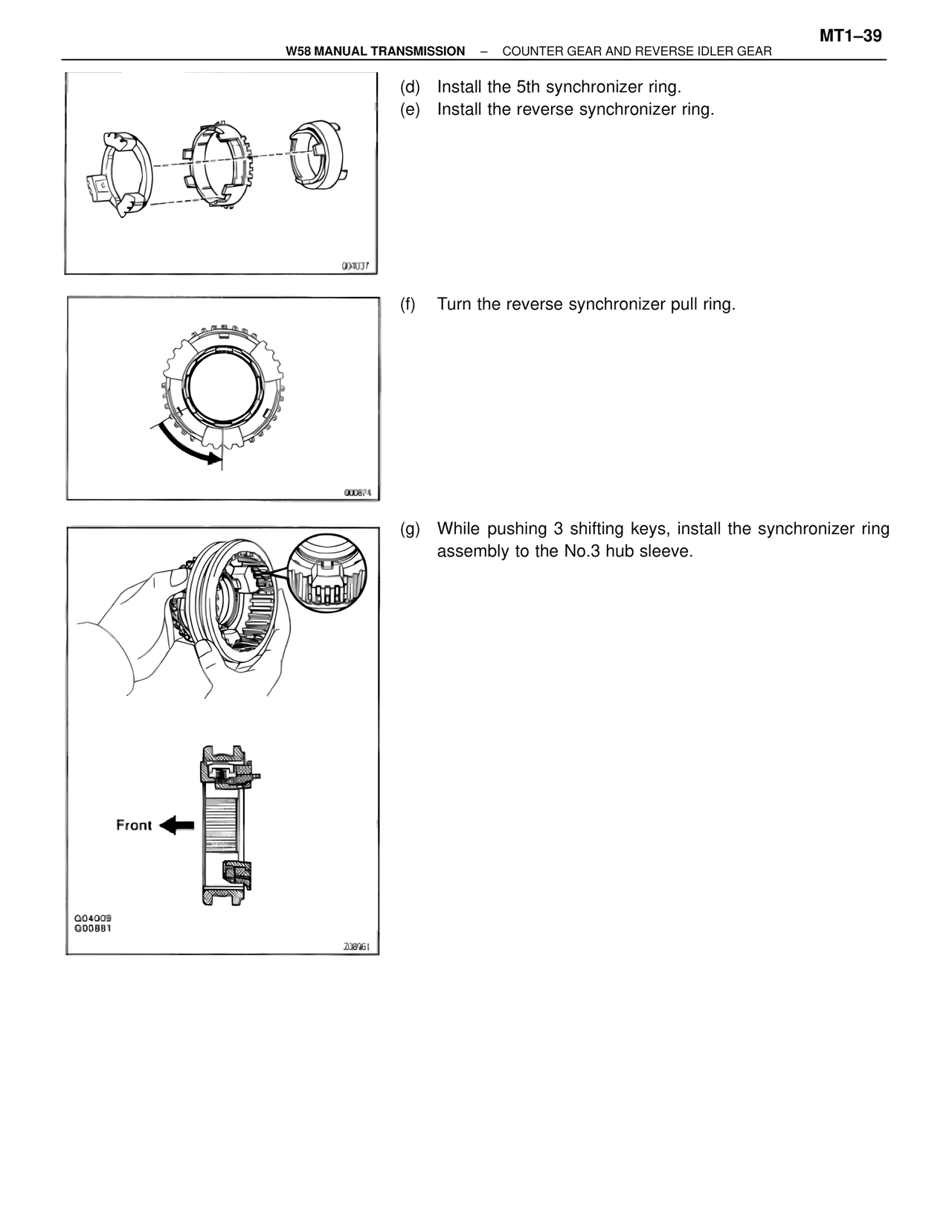

W58/W58 Manual Transmission, page 40

MT1–39

W58 MANUAL TRANSMISSION – COUNTER GEAR AND REVERSE IDLER GEAR

(d) Install the 5th synchronizer ring.
(e) Install the reverse synchronizer ring.

Q04037

(f) Turn the reverse synchronizer pull ring.

Q00874

(g) While pushing 3 shifting keys, install the synchronizer ring
assembly to the No.3 hub sleeve.

Front ←

Q04009
Q00881

208961
