MT1–40

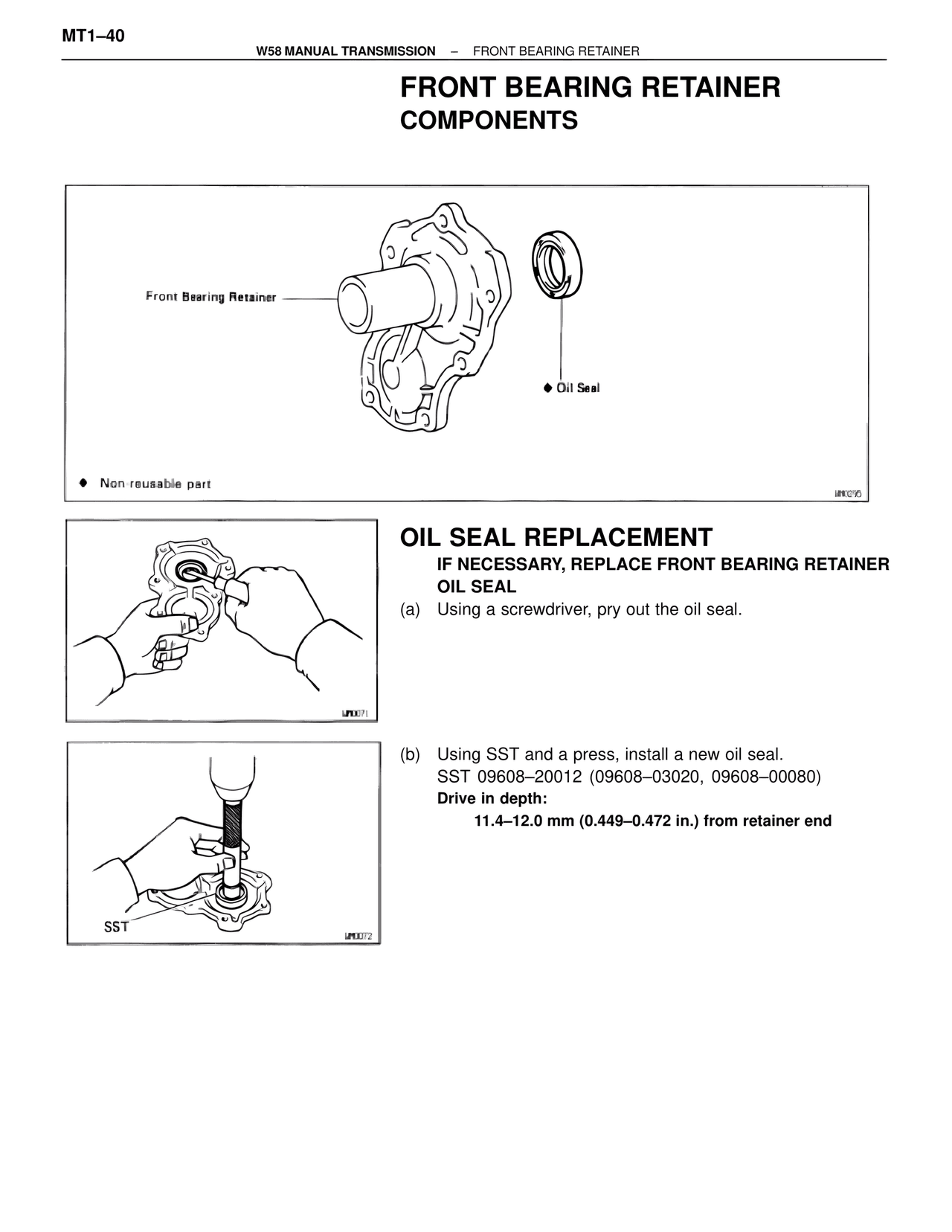

W58 MANUAL TRANSMISSION – FRONT BEARING RETAINER
FRONT BEARING RETAINER
COMPONENTS
Front Bearing Retainer
♦ Oil Seal
♦ Non-reusable part
OIL SEAL REPLACEMENT
IF NECESSARY, REPLACE FRONT BEARING RETAINER
OIL SEAL
(a) Using a screwdriver, pry out the oil seal.
(b) Using SST and a press, install a new oil seal.
SST 09608–20012 (09608–03020, 09608–00080)
Drive in depth:
11.4–12.0 mm (0.449–0.472 in.) from retainer end
SST
