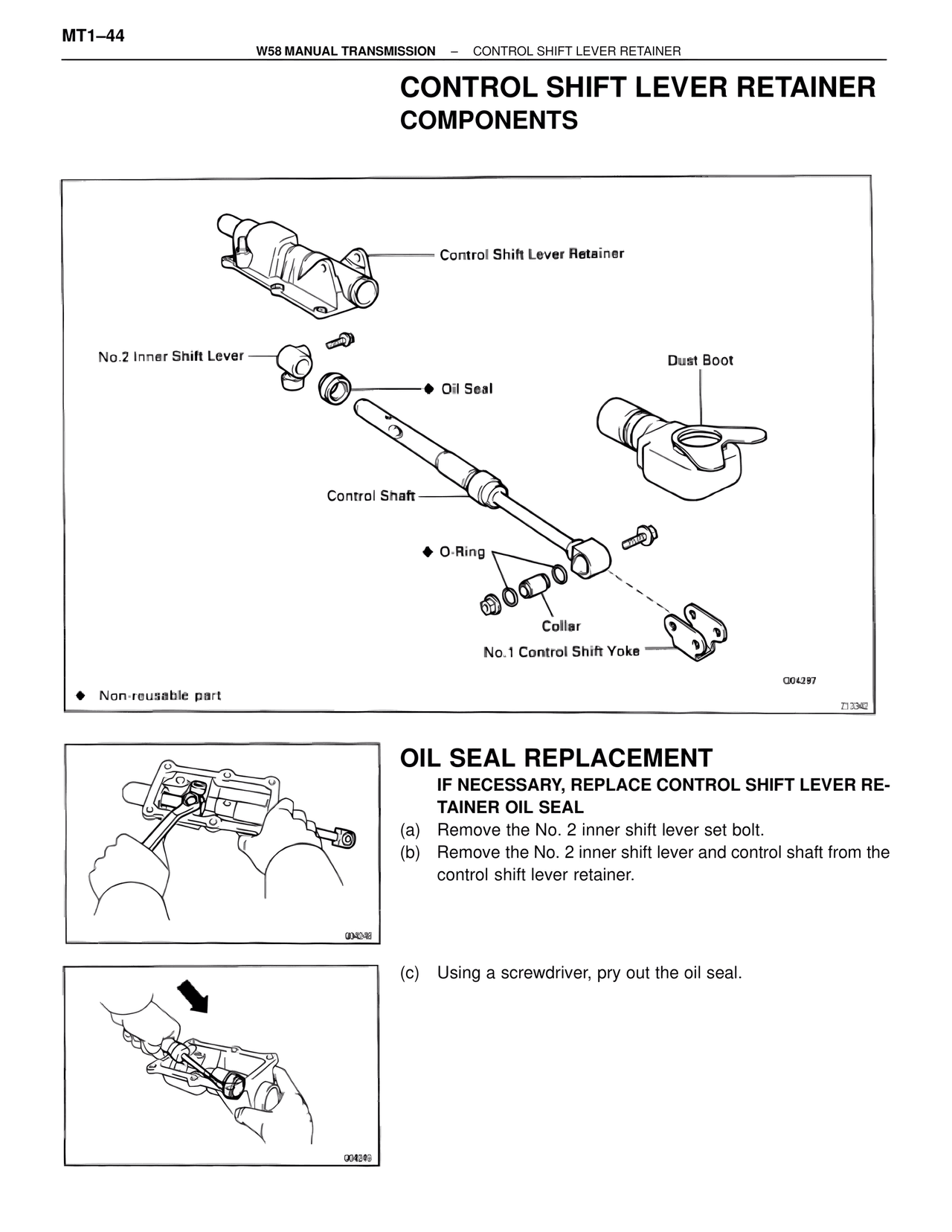

MT1–44 W58 MANUAL TRANSMISSION – CONTROL SHIFT LEVER RETAINER CONTROL SHIFT LEVER RETAINER COMPONENTS Control Shift Lever Retainer No.2 Inner Shift Lever Dust Boot ♦ Oil Seal Control Shaft ♦ O-Ring Collar No.1 Control Shift Yoke ♦ Non-reusable part G04297 Z13342 OIL SEAL REPLACEMENT IF NECESSARY, REPLACE CONTROL SHIFT LEVER RE- TAINER OIL SEAL (a) Remove the No. 2 inner shift lever set bolt. (b) Remove the No. 2 inner shift lever and control shaft from the control shift lever retainer. G04248 (c) Using a screwdriver, pry out the oil seal. G04249
