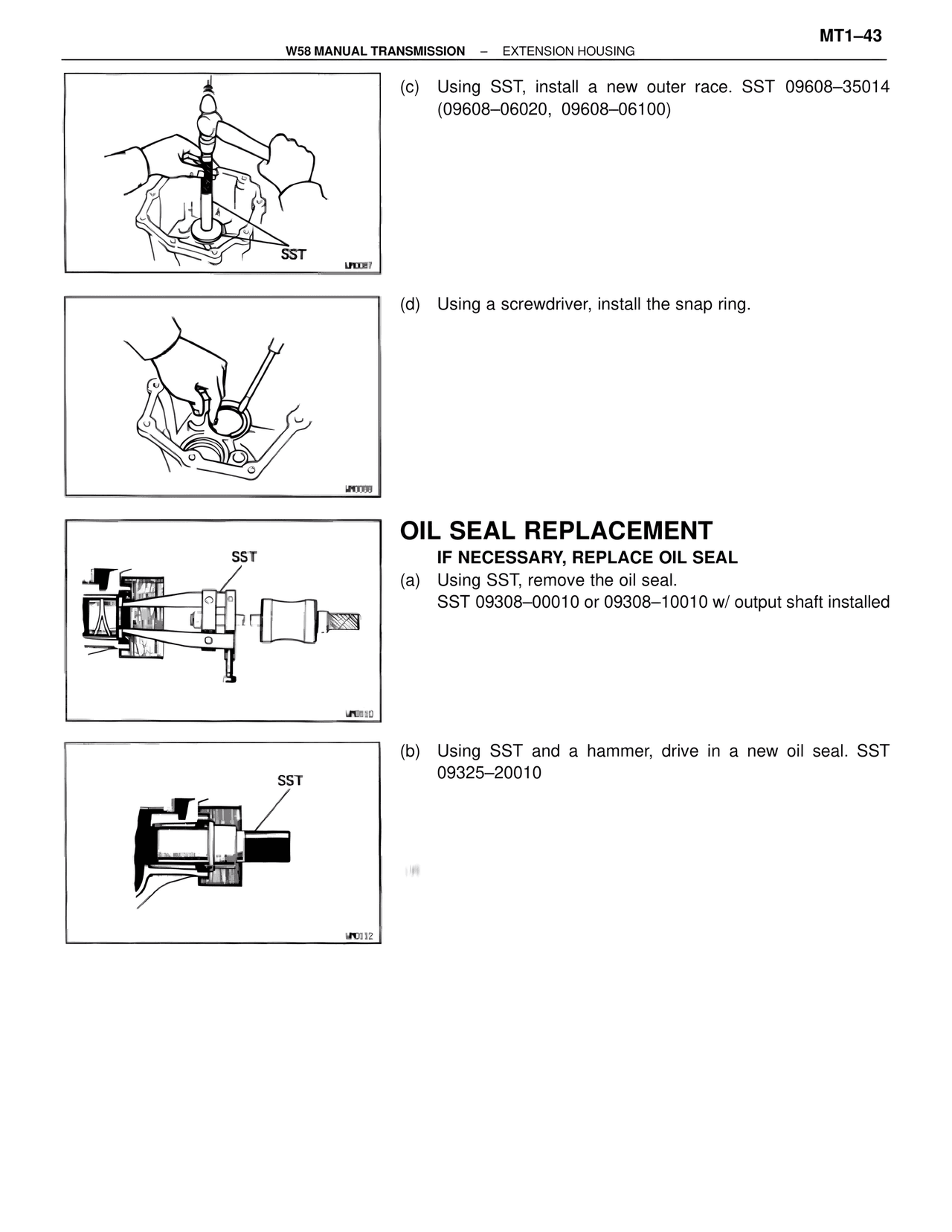

OIL SEAL REPLACEMENT — MK4 Supra W58 Manual Transmission, page 44
100%
MT1-43 W58 MANUAL TRANSMISSION – EXTENSION HOUSING (c) Using SST, install a new outer race. SST 09608-35014 (09608-06020, 09608-06100) (d) Using a screwdriver, install the snap ring. OIL SEAL REPLACEMENT IF NECESSARY, REPLACE OIL SEAL (a) Using SST, remove the oil seal. SST 09308-00010 or 09308-10010 w/ output shaft installed (b) Using SST and a hammer, drive in a new oil seal. SST 09325-20010 SST SST SST
