MT1–47

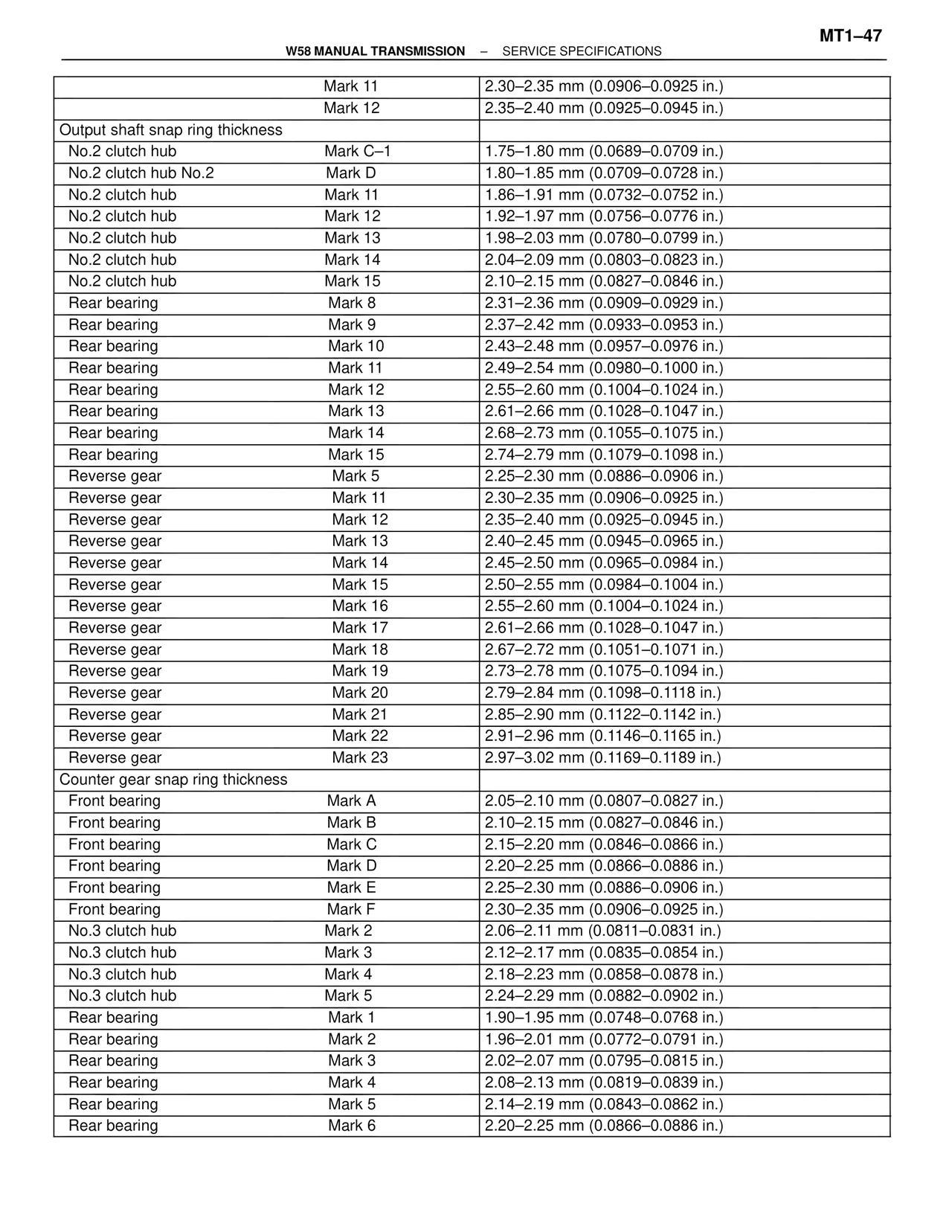

W58 MANUAL TRANSMISSION – SERVICE SPECIFICATIONS
Mark 11 2.30–2.35 mm (0.0906–0.0925 in.)
Mark 12 2.35–2.40 mm (0.0925–0.0945 in.)
Output shaft snap ring thickness
No.2 clutch hub Mark C–1 1.75–1.80 mm (0.0689–0.0709 in.)
No.2 clutch hub No.2 Mark D 1.80–1.85 mm (0.0709–0.0728 in.)
No.2 clutch hub Mark 11 1.86–1.91 mm (0.0732–0.0752 in.)
No.2 clutch hub Mark 12 1.92–1.97 mm (0.0756–0.0776 in.)
No.2 clutch hub Mark 13 1.98–2.03 mm (0.0780–0.0799 in.)
No.2 clutch hub Mark 14 2.04–2.09 mm (0.0803–0.0823 in.)
No.2 clutch hub Mark 15 2.10–2.15 mm (0.0827–0.0846 in.)
Rear bearing Mark 8 2.31–2.36 mm (0.0909–0.0929 in.)
Rear bearing Mark 9 2.37–2.42 mm (0.0933–0.0953 in.)
Rear bearing Mark 10 2.43–2.48 mm (0.0957–0.0976 in.)
Rear bearing Mark 11 2.49–2.54 mm (0.0980–0.1000 in.)
Rear bearing Mark 12 2.55–2.60 mm (0.1004–0.1024 in.)
Rear bearing Mark 13 2.61–2.66 mm (0.1028–0.1047 in.)
Rear bearing Mark 14 2.68–2.73 mm (0.1055–0.1075 in.)
Rear bearing Mark 15 2.74–2.79 mm (0.1079–0.1098 in.)
Reverse gear Mark 5 2.25–2.30 mm (0.0886–0.0906 in.)
Reverse gear Mark 11 2.30–2.35 mm (0.0906–0.0925 in.)
Reverse gear Mark 12 2.35–2.40 mm (0.0925–0.0945 in.)
Reverse gear Mark 13 2.40–2.45 mm (0.0945–0.0965 in.)
Reverse gear Mark 14 2.45–2.50 mm (0.0965–0.0984 in.)
Reverse gear Mark 15 2.50–2.55 mm (0.0984–0.1004 in.)
Reverse gear Mark 16 2.55–2.60 mm (0.1004–0.1024 in.)
Reverse gear Mark 17 2.61–2.66 mm (0.1028–0.1047 in.)
Reverse gear Mark 18 2.67–2.72 mm (0.1051–0.1071 in.)
Reverse gear Mark 19 2.73–2.78 mm (0.1075–0.1094 in.)
Reverse gear Mark 20 2.79–2.84 mm (0.1098–0.1118 in.)
Reverse gear Mark 21 2.85–2.90 mm (0.1122–0.1142 in.)
Reverse gear Mark 22 2.91–2.96 mm (0.1146–0.1165 in.)
Reverse gear Mark 23 2.97–3.02 mm (0.1169–0.1189 in.)
Counter gear snap ring thickness
Front bearing Mark A 2.05–2.10 mm (0.0807–0.0827 in.)
Front bearing Mark B 2.10–2.15 mm (0.0827–0.0846 in.)
Front bearing Mark C 2.15–2.20 mm (0.0846–0.0866 in.)
Front bearing Mark D 2.20–2.25 mm (0.0866–0.0886 in.)
Front bearing Mark E 2.25–2.30 mm (0.0886–0.0906 in.)
Front bearing Mark F 2.30–2.35 mm (0.0906–0.0925 in.)
No.3 clutch hub Mark 2 2.06–2.11 mm (0.0811–0.0831 in.)
No.3 clutch hub Mark 3 2.12–2.17 mm (0.0835–0.0854 in.)
No.3 clutch hub Mark 4 2.18–2.23 mm (0.0858–0.0878 in.)
No.3 clutch hub Mark 5 2.24–2.29 mm (0.0882–0.0902 in.)
Rear bearing Mark 1 1.90–1.95 mm (0.0748–0.0768 in.)
Rear bearing Mark 2 1.96–2.01 mm (0.0772–0.0791 in.)
Rear bearing Mark 3 2.02–2.07 mm (0.0795–0.0815 in.)
Rear bearing Mark 4 2.08–2.13 mm (0.0819–0.0839 in.)
Rear bearing Mark 5 2.14–2.19 mm (0.0843–0.0862 in.)
Rear bearing Mark 6 2.20–2.25 mm (0.0866–0.0886 in.)
