MT1–48

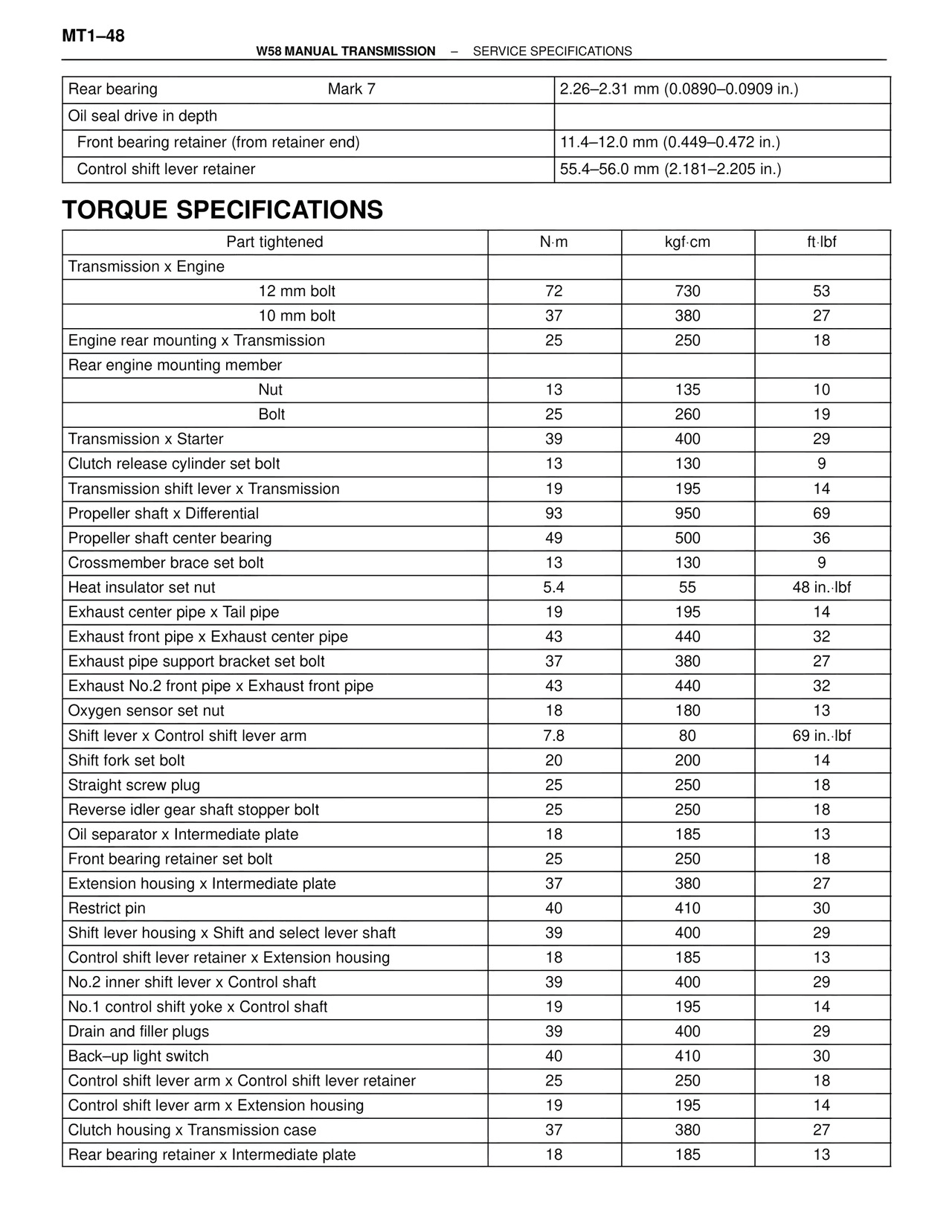

W58 MANUAL TRANSMISSION – SERVICE SPECIFICATIONS
Rear bearing Mark 7 2.26–2.31 mm (0.0890–0.0909 in.)
Oil seal drive in depth
Front bearing retainer (from retainer end) 11.4–12.0 mm (0.449–0.472 in.)
Control shift lever retainer 55.4–56.0 mm (2.181–2.205 in.)
TORQUE SPECIFICATIONS
Part tightened N·m kgf·cm ft·lbf
Transmission x Engine
12 mm bolt 72 730 53
10 mm bolt 37 380 27
Engine rear mounting x Transmission 25 250 18
Rear engine mounting member
Nut 13 135 10
Bolt 25 260 19
Transmission x Starter 39 400 29
Clutch release cylinder set bolt 13 130 9
Transmission shift lever x Transmission 19 195 14
Propeller shaft x Differential 93 950 69
Propeller shaft center bearing 49 500 36
Crossmember brace set bolt 13 130 9
Heat insulator set nut 5.4 55 48 in.·lbf
Exhaust center pipe x Tail pipe 19 195 14
Exhaust front pipe x Exhaust center pipe 43 440 32
Exhaust pipe support bracket set bolt 37 380 27
Exhaust No.2 front pipe x Exhaust front pipe 43 440 32
Oxygen sensor set nut 18 180 13
Shift lever x Control shift lever arm 7.8 80 69 in.·lbf
Shift fork set bolt 20 200 14
Straight screw plug 25 250 18
Reverse idler gear shaft stopper bolt 25 250 18
Oil separator x Intermediate plate 18 185 13
Front bearing retainer set bolt 25 250 18
Extension housing x Intermediate plate 37 380 27
Restrict pin 40 410 30
Shift lever housing x Shift and select lever shaft 39 400 29
Control shift lever retainer x Extension housing 18 185 13
No.2 inner shift lever x Control shaft 39 400 29
No.1 control shift yoke x Control shaft 19 195 14
Drain and filler plugs 39 400 29
Back–up light switch 40 410 30
Control shift lever arm x Control shift lever retainer 25 250 18
Control shift lever arm x Extension housing 19 195 14
Clutch housing x Transmission case 37 380 27
Rear bearing retainer x Intermediate plate 18 185 13
