MT1–7

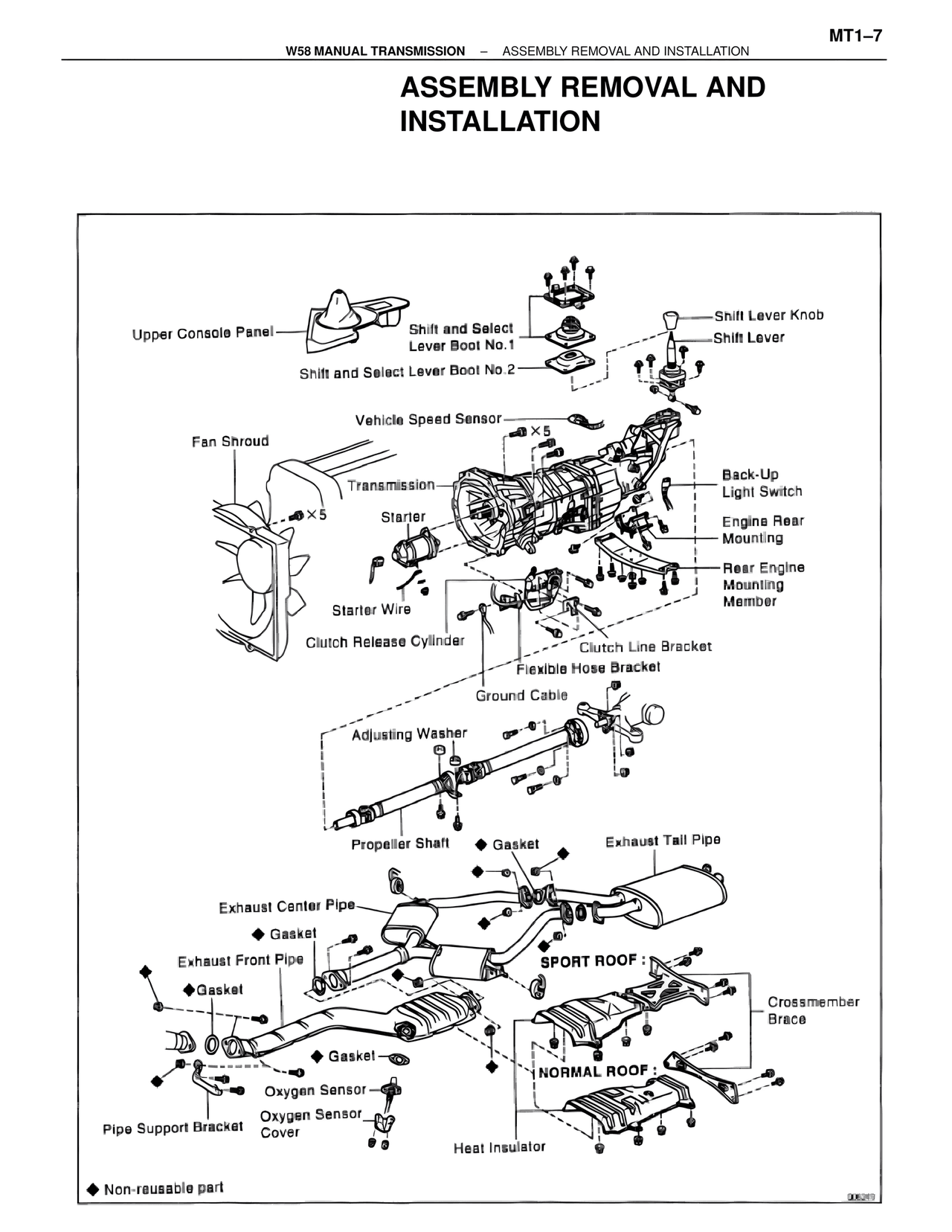

W58 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
ASSEMBLY REMOVAL AND
INSTALLATION
Upper Console Panel
Shift and Select Lever Boot No.1
Shift and Select Lever Boot No.2
Shift Lever Knob
Shift Lever
Vehicle Speed Sensor
×5
Fan Shroud
Transmission
Back-Up Light Switch
Engine Rear Mounting
Rear Engine Mounting Member
Starter
Starter Wire
Clutch Release Cylinder
Clutch Line Bracket
Flexible Hose Bracket
Ground Cable
Adjusting Washer
Propeller Shaft
♦ Gasket
Exhaust Tail Pipe
Exhaust Center Pipe
♦ Gasket
Exhaust Front Pipe
♦ Gasket
SPORT ROOF:
Crossmember Brace
NORMAL ROOF:
♦ Gasket
Oxygen Sensor
Oxygen Sensor Cover
Heat Insulator
Pipe Support Bracket
×5
♦ Non-reusable part
006249
