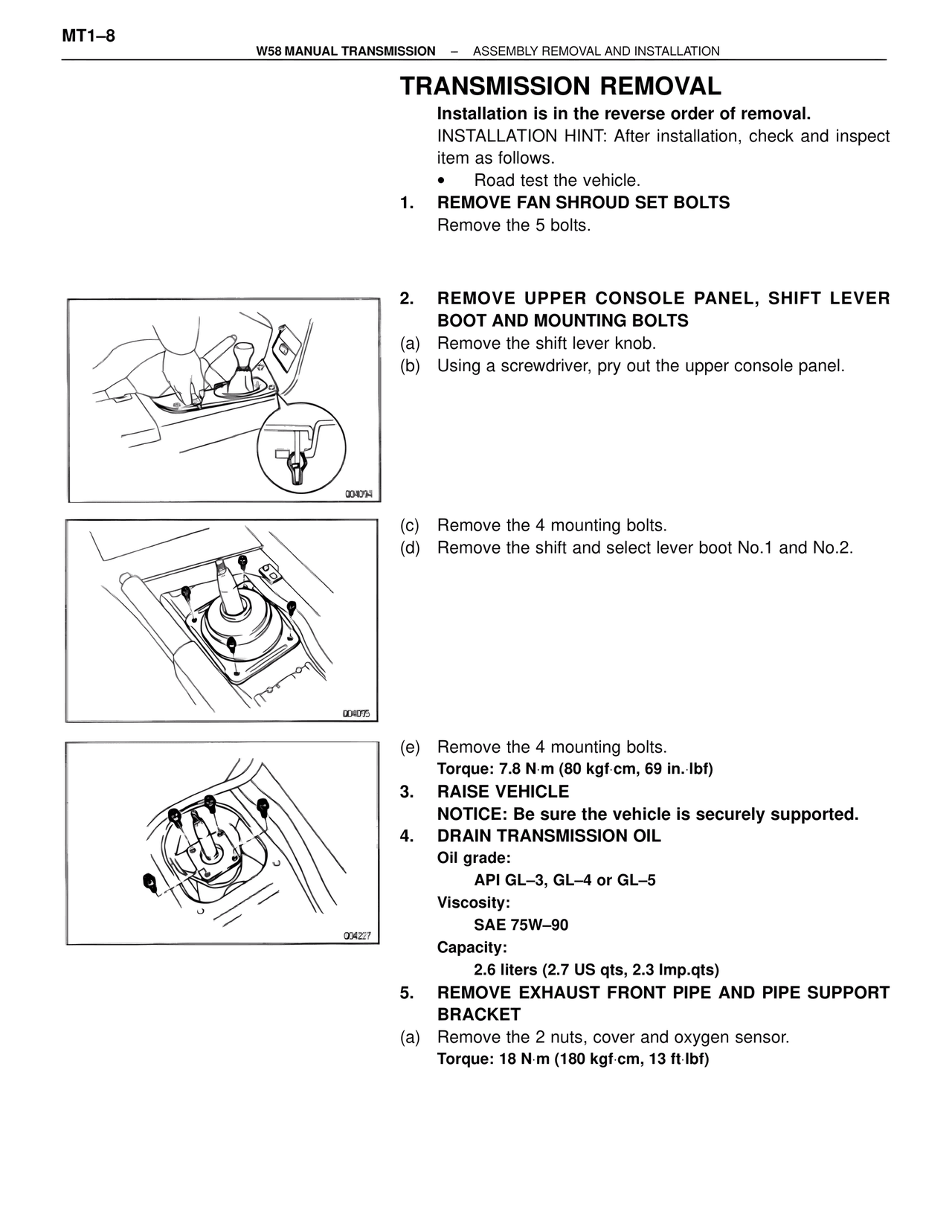

MT1–8
W58 MANUAL TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION
TRANSMISSION REMOVAL
Installation is in the reverse order of removal.
INSTALLATION HINT: After installation, check and inspect item as follows.
• Road test the vehicle.
1. REMOVE FAN SHROUD SET BOLTS
Remove the 5 bolts.
2. REMOVE UPPER CONSOLE PANEL, SHIFT LEVER BOOT AND MOUNTING BOLTS
(a) Remove the shift lever knob.
(b) Using a screwdriver, pry out the upper console panel.
004094
(c) Remove the 4 mounting bolts.
(d) Remove the shift and select lever boot No.1 and No.2.
004095
(e) Remove the 4 mounting bolts.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
3. RAISE VEHICLE
NOTICE: Be sure the vehicle is securely supported.
4. DRAIN TRANSMISSION OIL
Oil grade:
API GL–3, GL–4 or GL–5
Viscosity:
SAE 75W–90
Capacity:
2.6 liters (2.7 US qts, 2.3 Imp.qts)
5. REMOVE EXHAUST FRONT PIPE AND PIPE SUPPORT BRACKET
(a) Remove the 2 nuts, cover and oxygen sensor.
Torque: 18 N·m (180 kgf·cm, 13 ft·lbf)
004227
