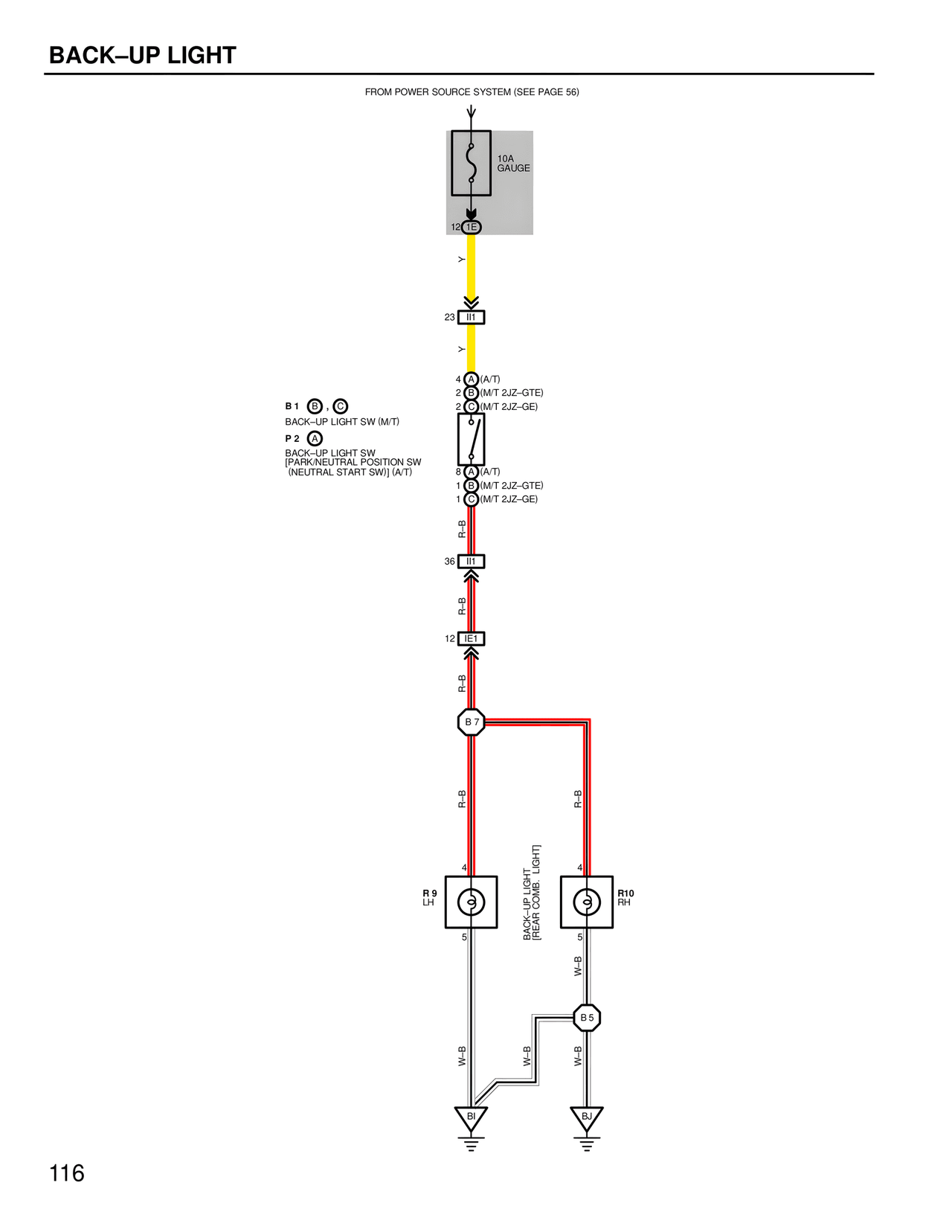

BACK–UP LIGHT
FROM POWER SOURCE SYSTEM (SEE PAGE 56)
10A
GAUGE
12 1E
23 II1
4 A (A/T)
2 B (M/T 2JZ–GTE)
2 C (M/T 2JZ–GE)
B 1 B , C
BACK–UP LIGHT SW (M/T)
P 2 A
BACK–UP LIGHT SW
[PARK/NEUTRAL POSITION SW
(NEUTRAL START SW)] (A/T)
8 A (A/T)
1 B (M/T 2JZ–GTE)
1 C (M/T 2JZ–GE)
R-B
36 II1
R-B
12 IE1
R-B
B 7
R-B R-B
4 4
R 9 R10
LH RH
BACK–UP LIGHT
[REAR COMB. LIGHT]
5 5
W-B
B 5
W-B W-B W-B
BI BJ
116
