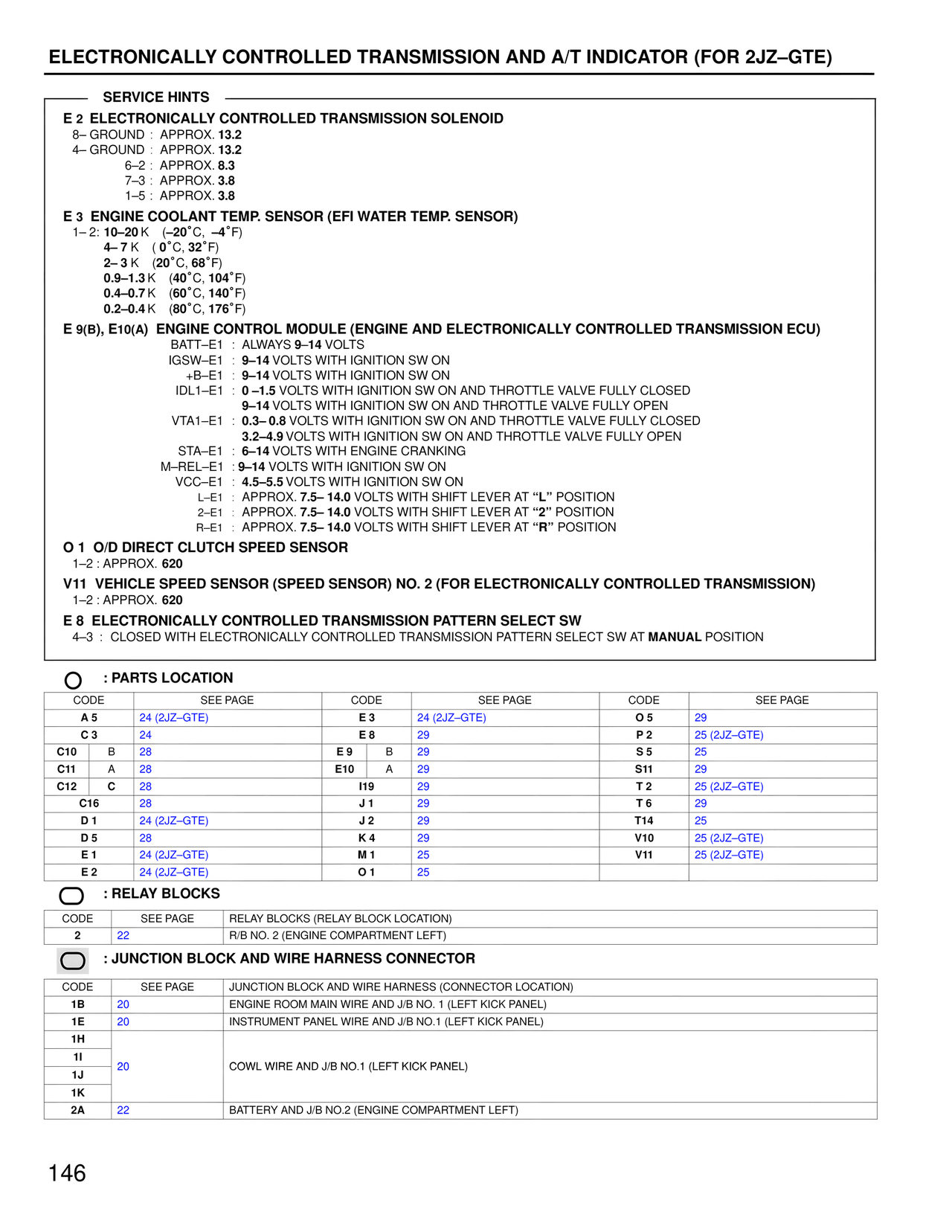

ELECTRONICALLY CONTROLLED TRANSMISSION AND A/T INDICATOR (FOR 2JZ–GTE)
SERVICE HINTS
E 2 ELECTRONICALLY CONTROLLED TRANSMISSION SOLENOID
8– GROUND : APPROX. 13.2
4– GROUND : APPROX. 13.2
6–2 : APPROX. 8.3
7–3 : APPROX. 3.8
1–5 : APPROX. 3.8
E 3 ENGINE COOLANT TEMP. SENSOR (EFI WATER TEMP. SENSOR)
1–2: 10–20 K (–20˚C, –4˚F)
4– 7 K ( 0˚C, 32˚F)
2– 3 K (20˚C, 68˚F)
0.9–1.3 K (40˚C, 104˚F)
0.4–0.7 K (60˚C, 140˚F)
0.2–0.4 K (80˚C, 176˚F)
E 9(B), E10(A) ENGINE CONTROL MODULE (ENGINE AND ELECTRONICALLY CONTROLLED TRANSMISSION ECU)
BATT–E1 : ALWAYS 9–14 VOLTS
IGSW–E1 : 9–14 VOLTS WITH IGNITION SW ON
+B–E1 : 9–14 VOLTS WITH IGNITION SW ON
IDL1–E1 : 0 –1.5 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY CLOSED
9–14 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY OPEN
VTA1–E1 : 0.3–0.8 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY CLOSED
3.2–4.9 VOLTS WITH IGNITION SW ON AND THROTTLE VALVE FULLY OPEN
STA–E1 : 6–14 VOLTS WITH ENGINE CRANKING
M–REL–E1 : 9–14 VOLTS WITH IGNITION SW ON
VCC–E1 : 4.5–5.5 VOLTS WITH IGNITION SW ON
L–E1 : APPROX. 7.5– 14.0 VOLTS WITH SHIFT LEVER AT "L" POSITION
2–E1 : APPROX. 7.5– 14.0 VOLTS WITH SHIFT LEVER AT "2" POSITION
R–E1 : APPROX. 7.5– 14.0 VOLTS WITH SHIFT LEVER AT "R" POSITION
O 1 O/D DIRECT CLUTCH SPEED SENSOR
1–2 : APPROX. 620
V11 VEHICLE SPEED SENSOR (SPEED SENSOR) NO. 2 (FOR ELECTRONICALLY CONTROLLED TRANSMISSION)
1–2 : APPROX. 620
E 8 ELECTRONICALLY CONTROLLED TRANSMISSION PATTERN SELECT SW
4–3 : CLOSED WITH ELECTRONICALLY CONTROLLED TRANSMISSION PATTERN SELECT SW AT MANUAL POSITION
○ : PARTS LOCATION
CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE
A 5 24 (2JZ–GTE) E 3 24 (2JZ–GTE) O 5 29
C 3 24 E 8 B 29 P 2 25 (2JZ–GTE)
C10 B 28 E 9 B 29 S 5 25
C11 A 28 E10 A 29 S11 29
C12 C 28 I19 29 T 2 25 (2JZ–GTE)
C16 28 J 1 29 T 6 29
D 1 24 (2JZ–GTE) J 2 29 T14 25
D 5 28 K 4 29 V10 25 (2JZ–GTE)
E 1 24 (2JZ–GTE) M 1 25 V11 25 (2JZ–GTE)
E 2 24 (2JZ–GTE) O 1 25
○ : RELAY BLOCKS
CODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION)
2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT)
○ : JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1B 20 ENGINE ROOM MAIN WIRE AND J/B NO. 1 (LEFT KICK PANEL)
1E 20 INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1H
1I 20 COWL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1J
1K
2A 22 BATTERY AND J/B NO.2 (ENGINE COMPARTMENT LEFT)
146
