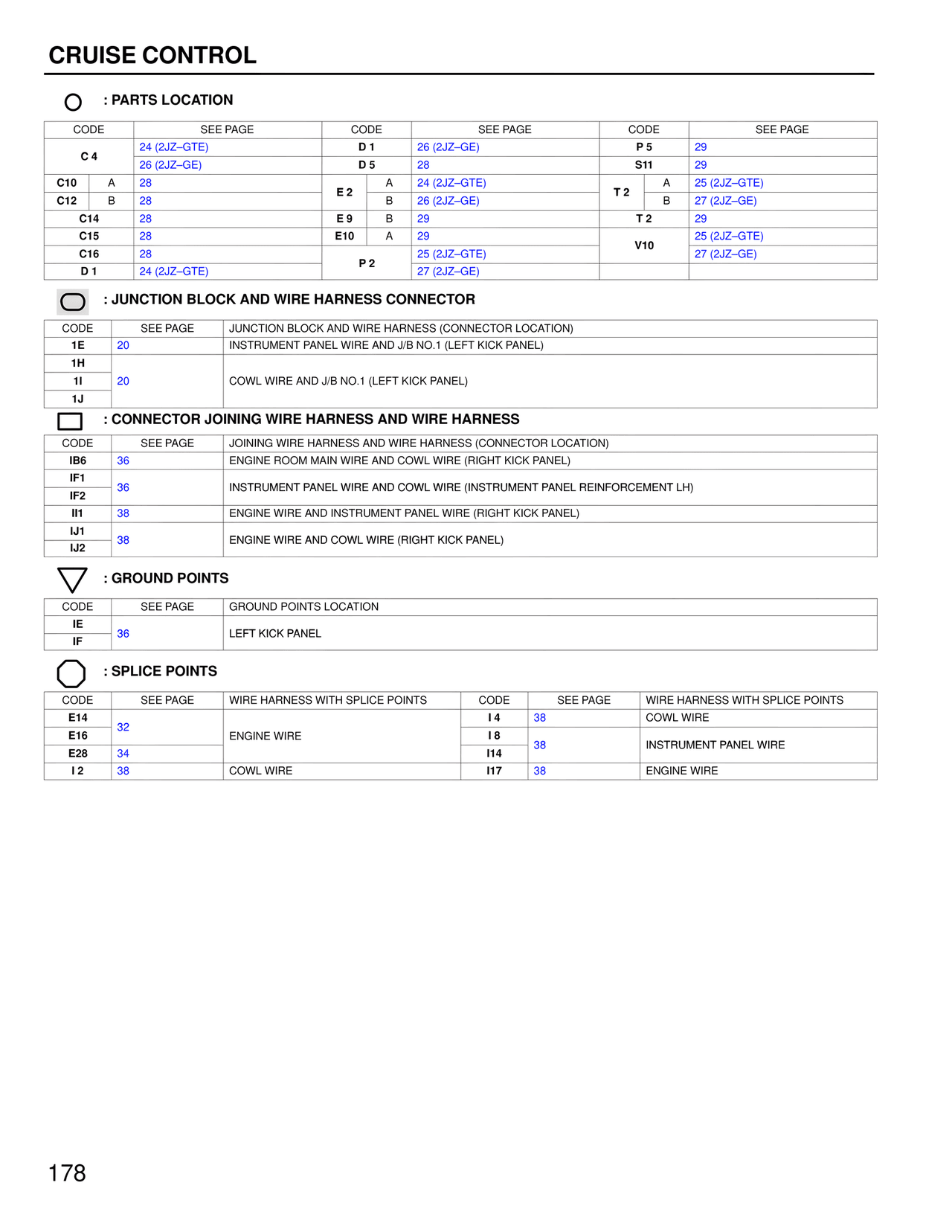

WD/Wiring Diagrams, page 175

CRUISE CONTROL

: PARTS LOCATION

CODE	SEE PAGE	CODE	SEE PAGE	CODE	SEE PAGE
C 4	24 (2JZ–GTE)	D 1	26 (2JZ–GE)	P 5	29
	26 (2JZ–GE)	D 5	28	S11	29
C10	A	28	E 2	A	24 (2JZ–GTE)	T 2	A	25 (2JZ–GTE)
C12	B	28		B	26 (2JZ–GE)		B	27 (2JZ–GE)
C14		28	E 9	B	29	T 2		29
C15		28	E10	A	29	V10		25 (2JZ–GTE)
C16		28	P 2		25 (2JZ–GTE)			27 (2JZ–GE)
D 1		24 (2JZ–GTE)			27 (2JZ–GE)

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE	SEE PAGE	JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1E	20	INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1H
1I	20	COWL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1J

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE	SEE PAGE	JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IB6	36	ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)
IF1	36	INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
IF2
II1	38	ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
IJ1	38	ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)
IJ2

: GROUND POINTS

CODE	SEE PAGE	GROUND POINTS LOCATION
IE	36	LEFT KICK PANEL
IF

: SPLICE POINTS

CODE	SEE PAGE	WIRE HARNESS WITH SPLICE POINTS	CODE	SEE PAGE	WIRE HARNESS WITH SPLICE POINTS
E14	32	ENGINE WIRE	I 4	38	COWL WIRE
E16			I 8	38	INSTRUMENT PANEL WIRE
E28	34		I14	38
 I 2	38	COWL WIRE	I17	38	ENGINE WIRE

178
