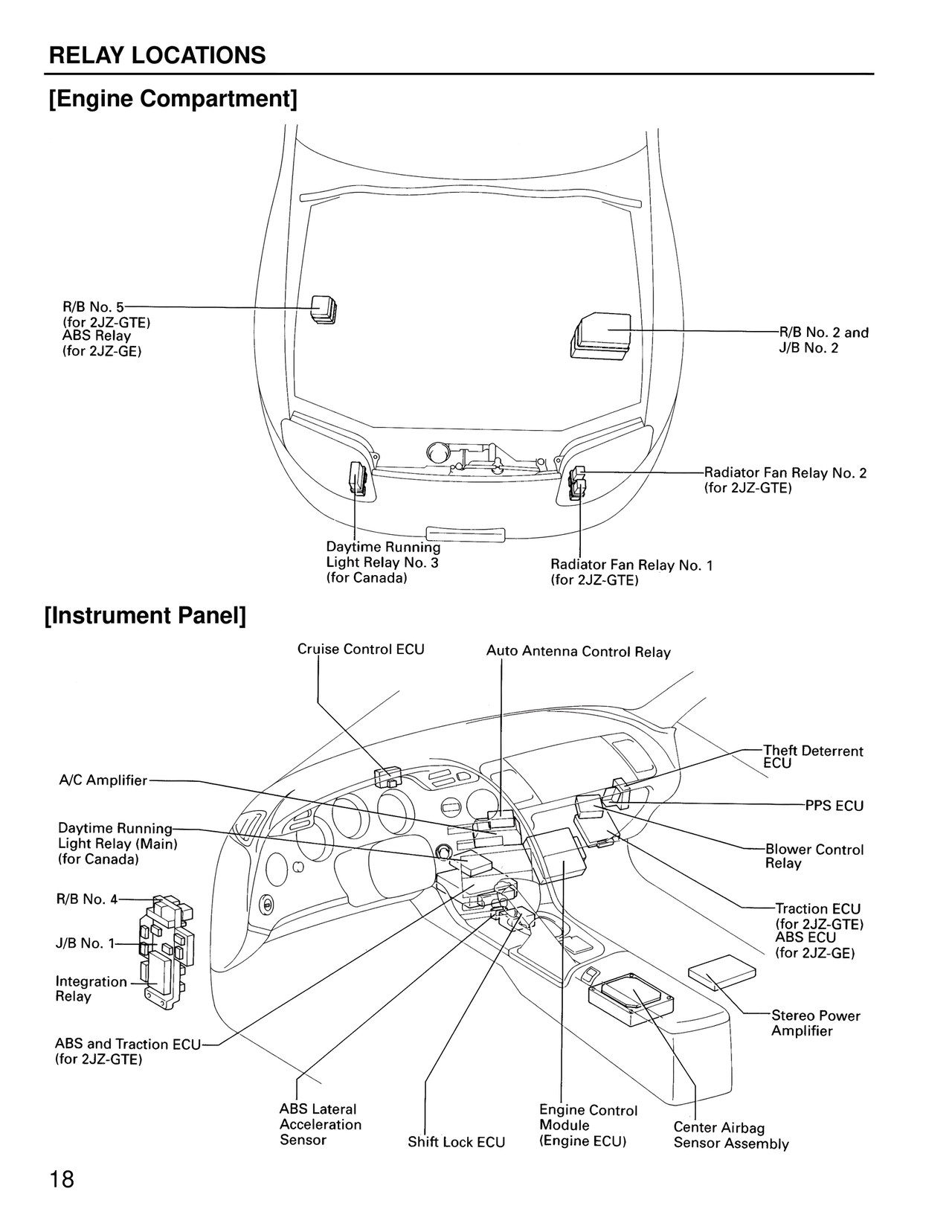

RELAY LOCATIONS
[Engine Compartment]
R/B No. 5
(for 2JZ-GTE)
ABS Relay
(for 2JZ-GE)
R/B No. 2 and
J/B No. 2
Radiator Fan Relay No. 2
(for 2JZ-GTE)
Daytime Running
Light Relay No. 3
(for Canada)
Radiator Fan Relay No. 1
(for 2JZ-GTE)
[Instrument Panel]
Cruise Control ECU
Auto Antenna Control Relay
A/C Amplifier
Theft Deterrent
ECU
PPS ECU
Daytime Running
Light Relay (Main)
(for Canada)
Blower Control
Relay
R/B No. 4
J/B No. 1
Integration
Relay
Traction ECU
(for 2JZ-GTE)
ABS ECU
(for 2JZ-GE)
Stereo Power
Amplifier
ABS and Traction ECU
(for 2JZ-GTE)
ABS Lateral
Acceleration
Sensor
Shift Lock ECU
Engine Control
Module
(Engine ECU)
Center Airbag
Sensor Assembly
