← p.019
WD
/
Wiring Diagrams
20 / 277
p.021 →
−
100%
+

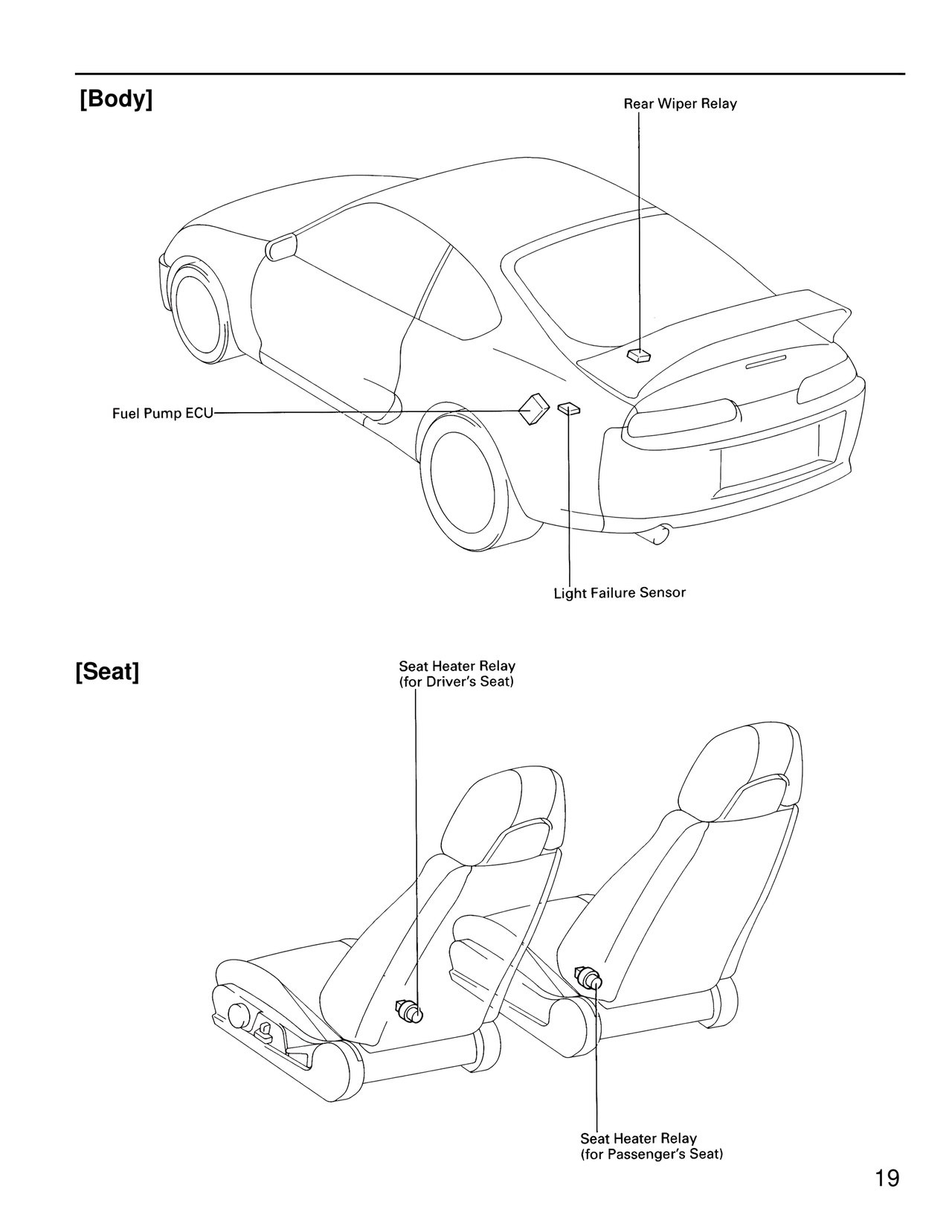

[Body] Rear Wiper Relay Fuel Pump ECU Light Failure Sensor [Seat] Seat Heater Relay (for Driver's Seat) Seat Heater Relay (for Passenger's Seat) 19
