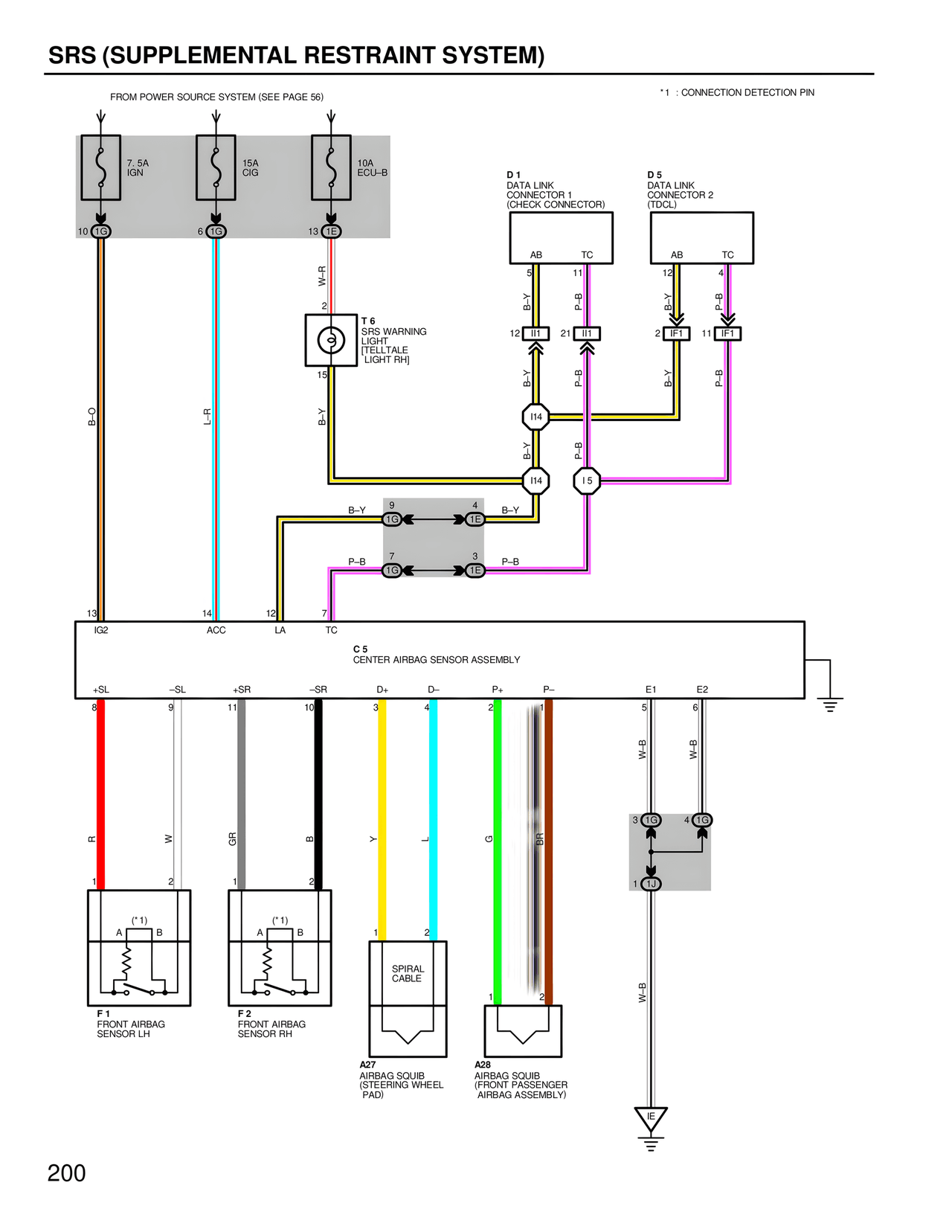

SRS (SUPPLEMENTAL RESTRAINT SYSTEM)
*1 : CONNECTION DETECTION PIN
FROM POWER SOURCE SYSTEM (SEE PAGE 56)
7. 5A
IGN
15A
CIG
10A
ECU-B
10 1G
6 1G
13 1E
D 1
DATA LINK
CONNECTOR 1
(CHECK CONNECTOR)
D 5
DATA LINK
CONNECTOR 2
(TDCL)
AB TC
AB TC
5 TC
12 4
B-Y P-B
B-Y P-B
12 II1 21 II1
2 IF1 11 IF1
W-R
2
T 6
SRS WARNING
LIGHT
[TELL TALE
LIGHT RH]
15
B-O
L-R
B-Y
B-Y P-B
B-Y P-B
II4
IF1
II4 I 5
B-Y 9 4 B-Y
1G 1E
P-B 7 3 P-B
1G 1E
13 14 12 7
IG2 ACC LA TC
C 5
CENTER AIRBAG SENSOR ASSEMBLY
+SL -SL +SR -SR D+ D- P+ P- E1 E2
8 9 11 10 3 4 2 1 5 6
R W GR B Y L G BR W-B W-B
3 1G 4 1G
1 2 1 2 1 2 1 2 1
1J
(*1) (*1)
A B A B
F 1 F 2
FRONT AIRBAG FRONT AIRBAG
SENSOR LH SENSOR RH
A27 A28
AIRBAG SQUIB AIRBAG SQUIB
(STEERING WHEEL (FRONT PASSENGER
PAD) AIRBAG ASSEMBLY)
SPIRAL
CABLE
W-B
IE
200
