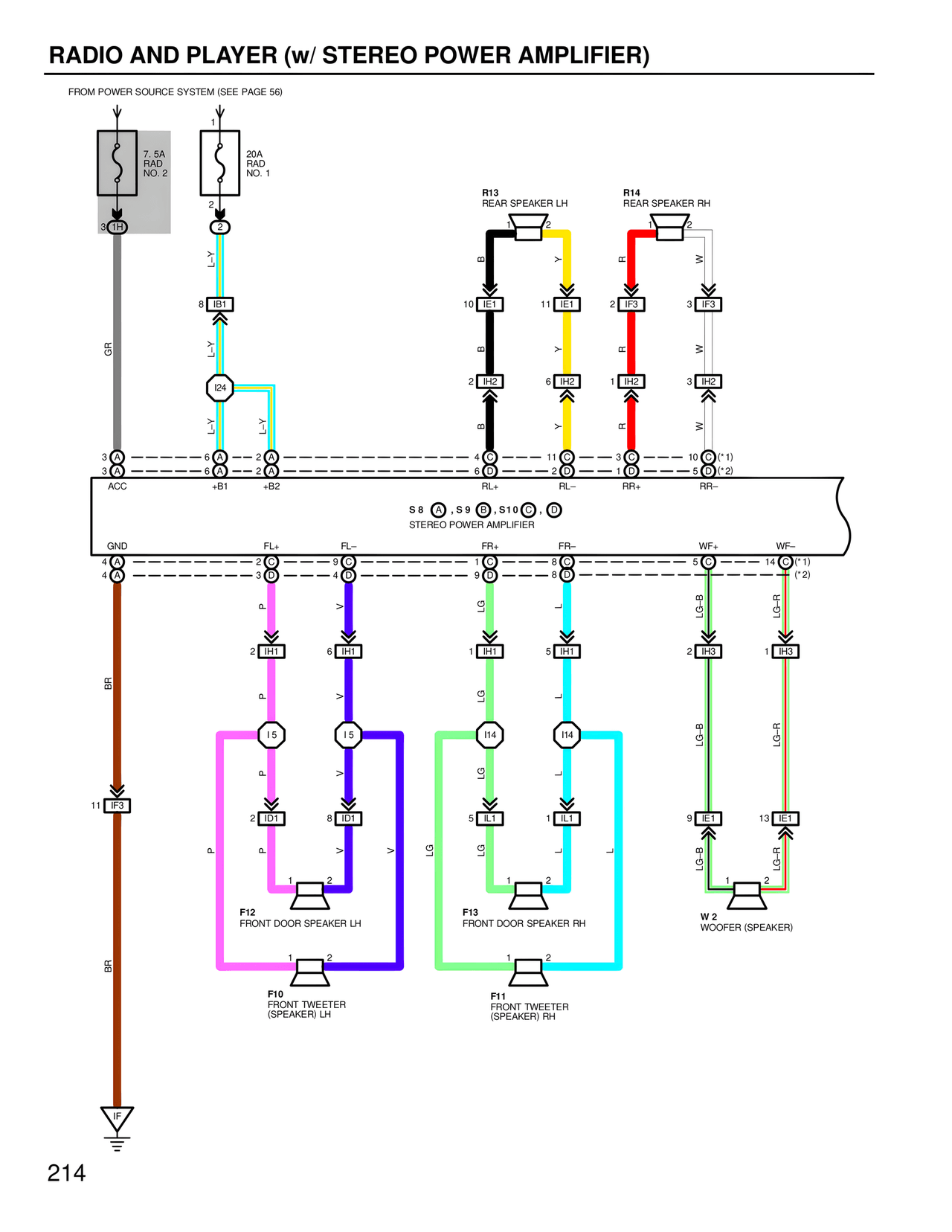

RADIO AND PLAYER (w/ STEREO POWER AMPLIFIER)
FROM POWER SOURCE SYSTEM (SEE PAGE 56)
7. 5A
RAD
NO. 2
20A
RAD
NO. 1
1
2
3 1H
L-Y
8 IB1
L-Y
I24
L-Y L-Y
3 A ---- 6 A -- 2 A ----
3 A ---- 6 A -- 2 A ----
ACC +B1 +B2
GR
R13
REAR SPEAKER LH
R14
REAR SPEAKER RH
2 2
B Y R W
10 IE1 11 IE1 2 IF3 3 IF3
B Y R W
2 IH2 6 IH2 1 IH2 3 IH2
B Y R W
4 C ---- 11 C -- 3 C ---- 10 C (*1)
6 D ---- 2 D -- 5 D ---- (*2)
RL+ RL- RR+ RR-
S8 A, S9 B, S10 C, D
STEREO POWER AMPLIFIER
GND FL+ FL- FR+ FR- WF+ WF-
4 A ---- 2 C -- 3 C -- 1 C -- 8 C -- 5 C ---- 14 C (*1)
4 A ---- 3 D -- 4 D -- 9 D -- 8 D -- (*2)
P V LG J LG-B LG-R
2 IH1 6 IH1 1 IH1 5 IH1 2 IH3 1 IH3
P V LG J LG-B LG-R
I5 I5 I14 I14
P V LG J LG-B LG-R
2 ID1 8 ID1 5 IL1 1 IL1 9 IE1 13 IE1
P P V V LG LG J J LG-B LG-R
1 2 1 2
F12 F13
FRONT DOOR SPEAKER LH FRONT DOOR SPEAKER RH
1 2 1 2
F10 F11
FRONT TWEETER FRONT TWEETER
(SPEAKER) LH (SPEAKER) RH
11 IF3
BR
BR
1 2
W 2
WOOFER (SPEAKER)
IF
214
