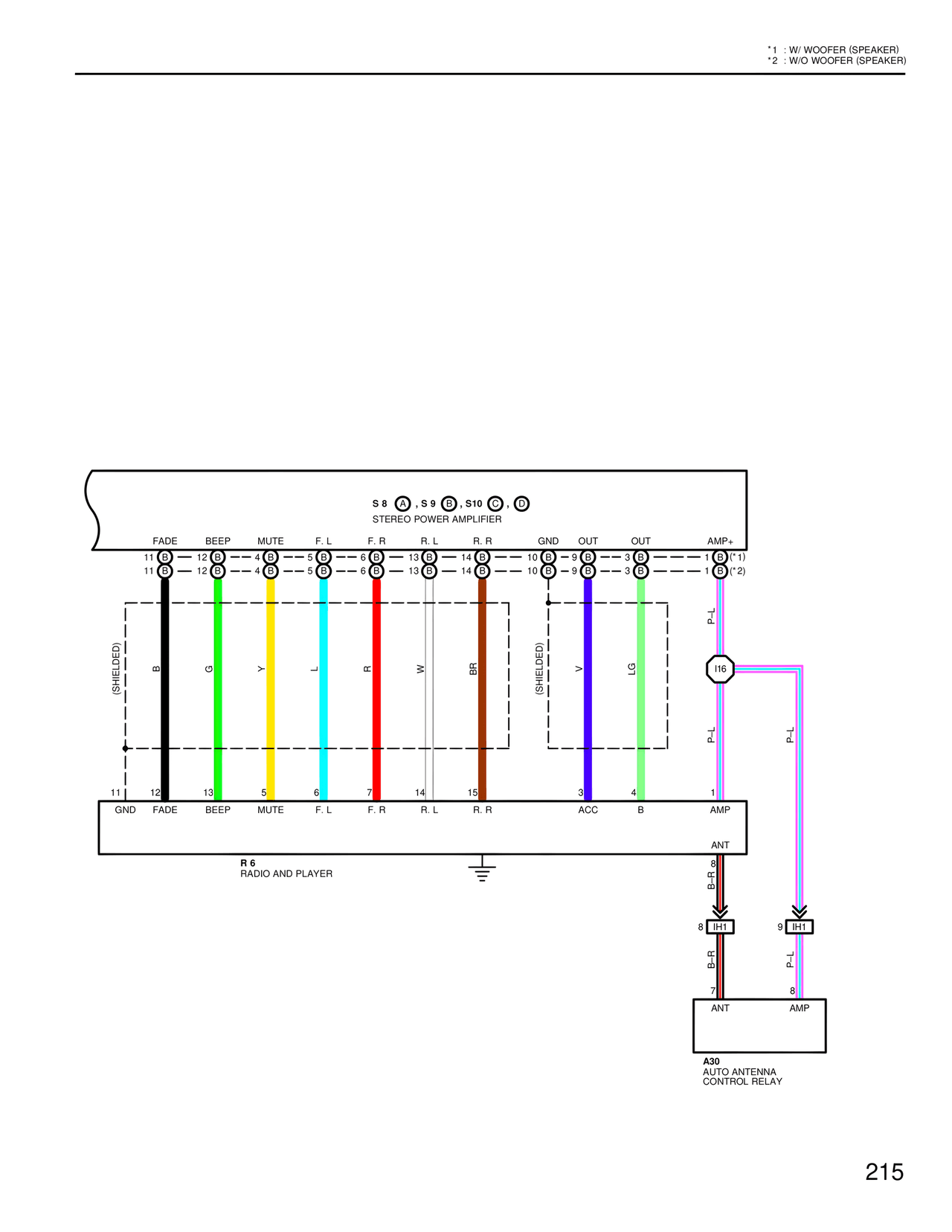

WD/Wiring Diagrams, page 211

*1 : W/ WOOFER (SPEAKER)
*2 : W/O WOOFER (SPEAKER)

S 8 (A) , S9 (B) , S10 (C) , (D)
STEREO POWER AMPLIFIER

FADE    BEEP    MUTE    F. L    F. R    R. L    R. R    GND    OUT    OUT    AMP+
11 (B)  12 (B)  4 (B)   5 (B)   6 (B)   13 (B)  14 (B)  10 (B)  9 (B)   3 (B)   1 (B) (*1)
11 (B)  12 (B)  4 (B)   5 (B)   6 (B)   13 (B)  14 (B)  10 (B)  9 (B)   3 (B)   1 (B) (*2)

(SHIELDED)
B    G    Y    L    R    W    BR    (SHIELDED)    V    LG

P-L

(I16)

P-L         P-L

11   12   13   5    6    7    14   15         3    4    1
GND  FADE  BEEP  MUTE  F. L  F. R  R. L  R. R    ACC   B    AMP
                                                        ANT

R 6
RADIO AND PLAYER

[Ground symbol]

ANT
8
B-R
8 (IH1)        9 (IH1)

B-R            P-L
7              8
ANT            AMP

A30
AUTO ANTENNA
CONTROL RELAY
