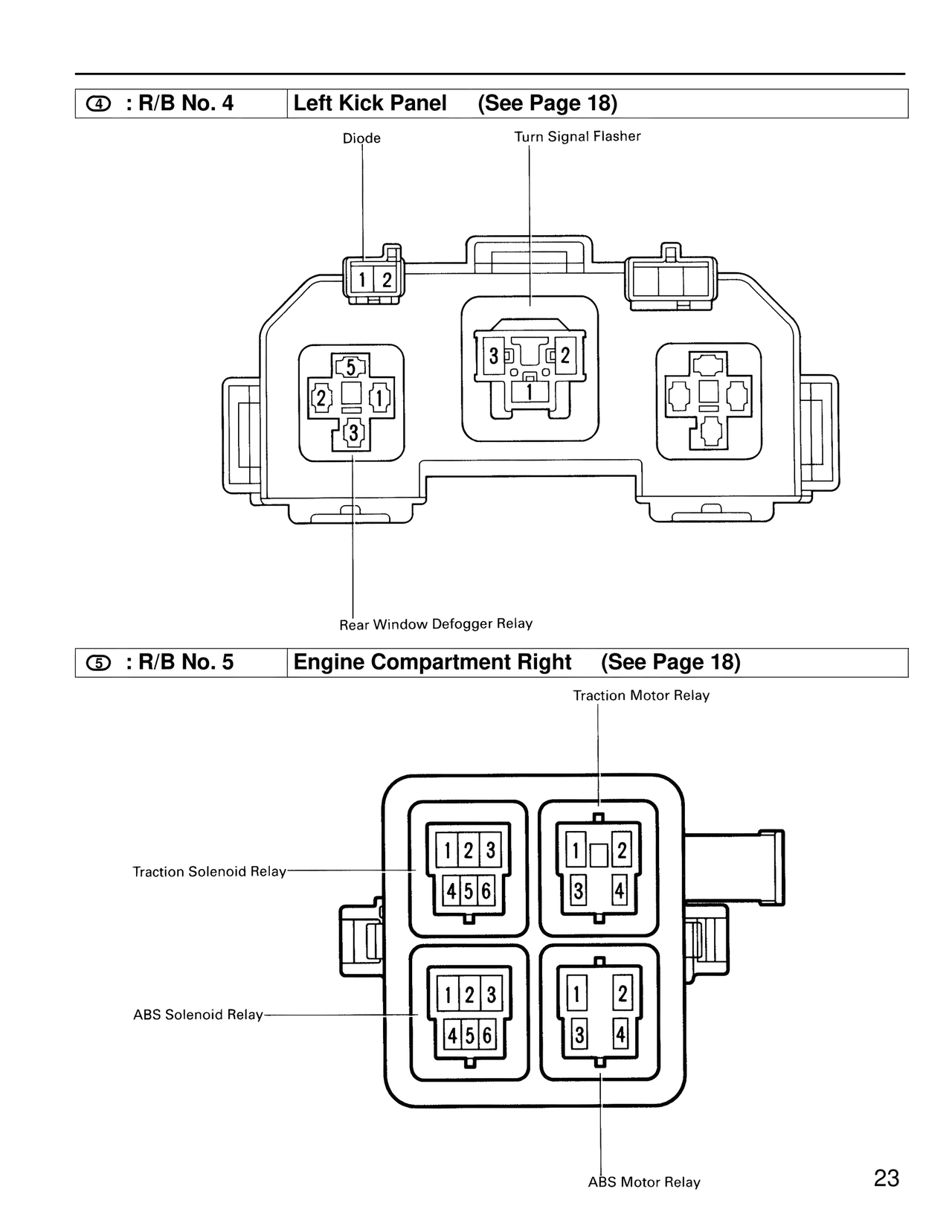

WD/Wiring Diagrams, page 24

: R/B No. 4	Left Kick Panel	(See Page 18)

Diode

Turn Signal Flasher

1  2

5
2    1
3

3    2
1

Rear Window Defogger Relay

: R/B No. 5	Engine Compartment Right	(See Page 18)

Traction Motor Relay

1  2  3
4  5  6

1    2
3    4

Traction Solenoid Relay

1  2  3
4  5  6

1    2
3    4

ABS Solenoid Relay

ABS Motor Relay

23
