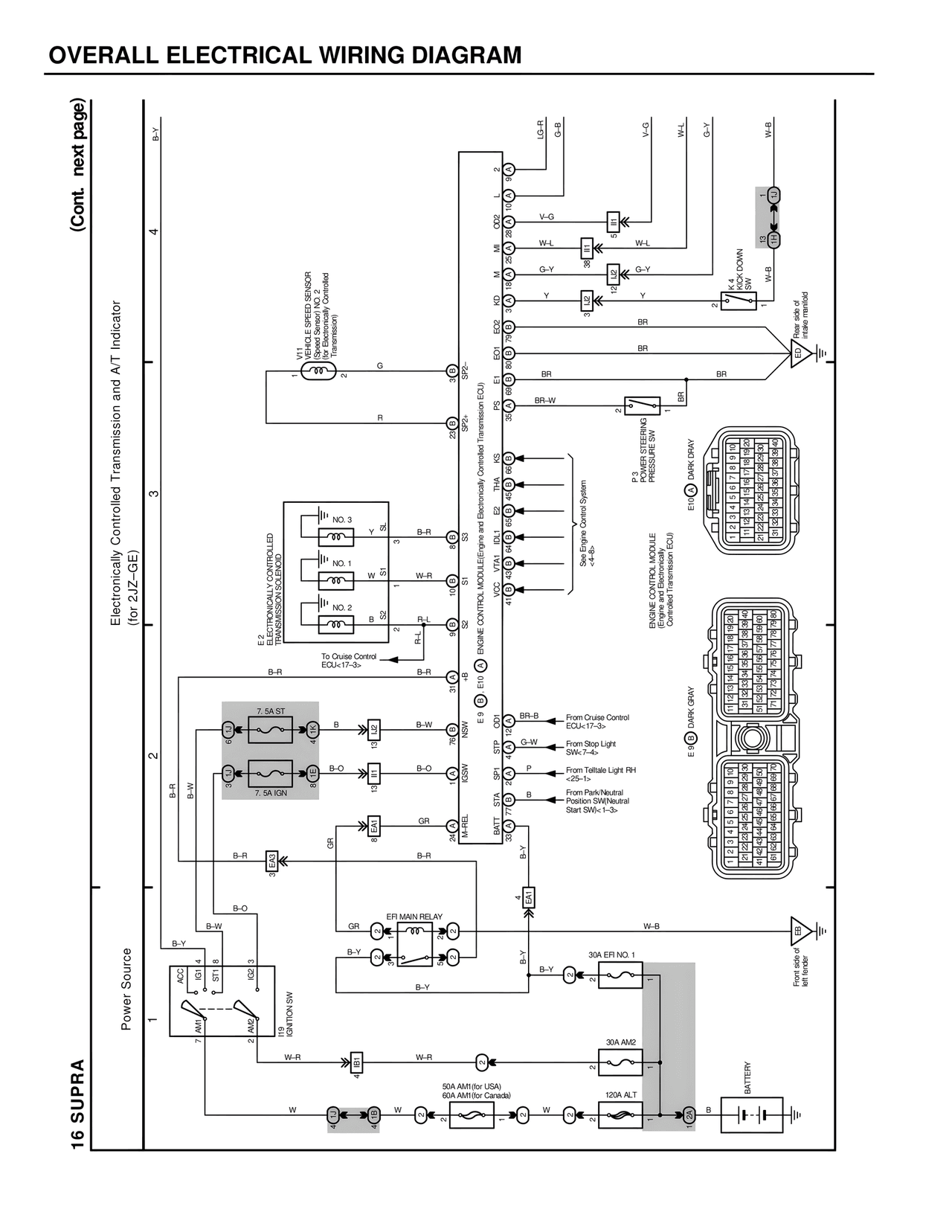

OVERALL ELECTRICAL WIRING DIAGRAM
(Cont. next page)
Electronically Controlled Transmission and A/T Indicator
(for 2JZ-GE)
Power Source
16 SUPRA
B-Y
4
LG-R G-B V-G W-L G-Y W-B
V-G
W-L
OD2 28
W-L
G-Y
M 22
G-Y
KD 18
Y
Y
EQ2 3
ED1 76
BR
BR
E1 9
BR
BR
PS 38
BR-W
BR
KS 60
THA 46
IDL 63
VTA1 65
VCC 54
VC 41
KICK DOWN SW
Rear side of intake manifold
SPZ-
SPZ+
SPZ+
See Engine Control System <4-8>
P-3
POWER STEERING PRESSURE SW
E10 DARK GRAY
3
VN11
VEHICLE SPEED SENSOR
(Speed Sensor) NO. 2
(for Electronically-Controlled Transmission)
G 2
SPZ- 3
R
SPZ+ 22
E 2
ELECTRONICALLY CONTROLLED TRANSMISSION ECU
NO. 3
Y S3
B-R
NO. 1
W S1
W-R
NO. 2
W S2
R-L
To Cruise Control ECU<17-3>
ENGINE CONTROL MODULE(Engine and Electronically Controlled Transmission ECU)
S3 8
S 6
S1 10
S2 9
B-R
B 3
+B E10
NSW 13
KSW 13
M-REL 8
BAT 35
STA 38
STP 12
SP1 16
OD1 8
GR
GR
ENGINE CONTROL MODULE
(Engine and Electronically Controlled Transmission ECU)
E 9 DARK GRAY
DARK GRAY
2
B-W
B-R 7.5A ST
B 13
B-W
7.5A IGN
B-O 10
B-O
B-R
GR
B-R
B-O
B-W
B-Y
BR-B From Cruise Control ECU<17-3>
G-W From Stop Light SW<7-6>
P From Telltale Light RH <6-7-1>
B From Park/Neutral Position SW/Neutral Start SW<1-3>
EFI MAIN RELAY
GR
GR
B-Y
B-Y
B-Y
B-Y
W-B
30A EFI NO. 1
B-Y
Front side of left fender
30A AM2
BATTERY
1
ACC 1
ST1 1
IG1 4
IG2 3
7 AM1 2 AM2
IGNITION SW
W-R
W-R
50A AM1(for USA)
60A AM1(for Canada)
W
W
W
120A ALT
B
W-B
E3
