ELECTRICAL WIRING ROUTING

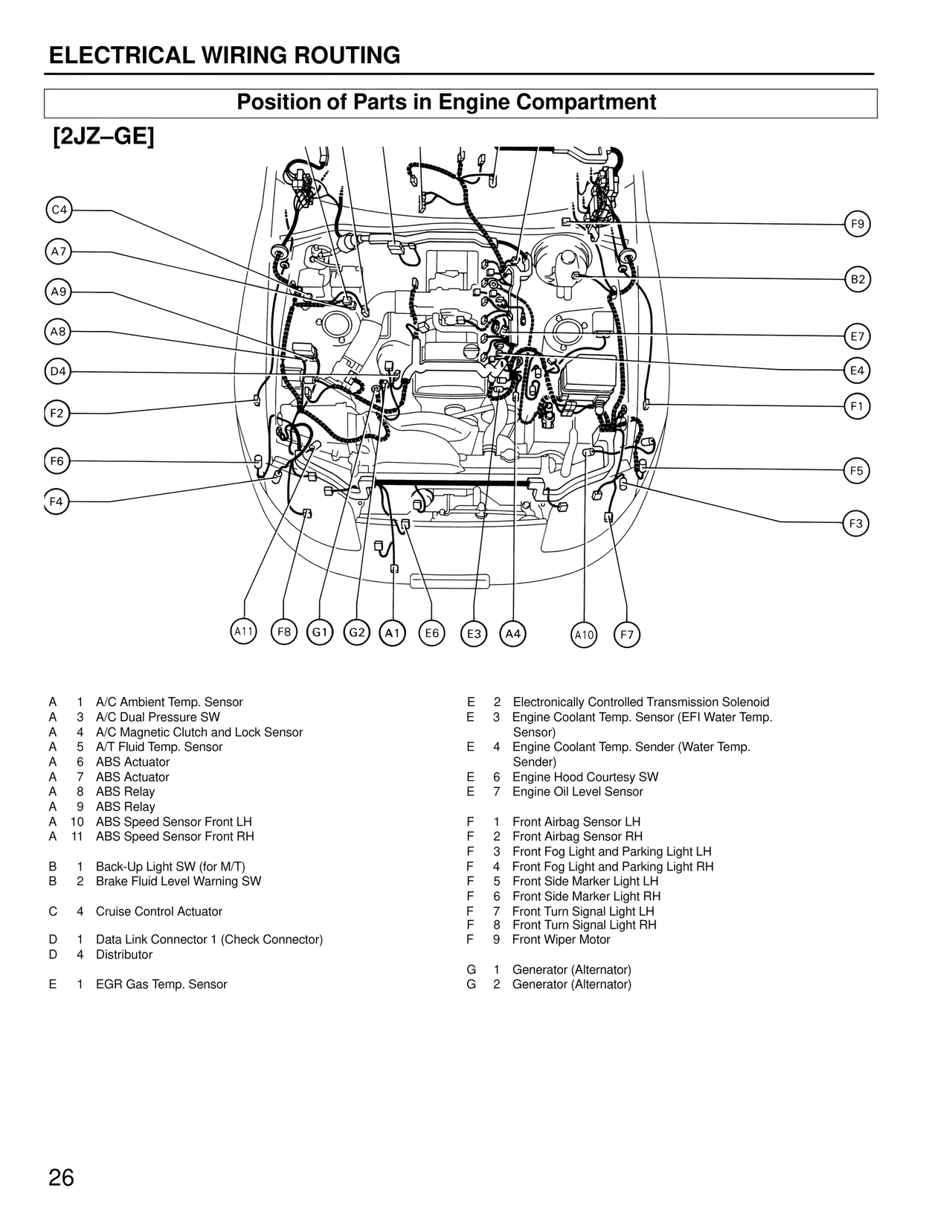

Position of Parts in Engine Compartment

[2JZ–GE]

C4
A7
A9
A8
D4
F2
F6
F4

A11  F8  G1  G2  A1  E6  E3  A4  A10  F7

F9
B2
E7
E4
F1
F5
F3

A  1  A/C Ambient Temp. Sensor
A  3  A/C Dual Pressure SW
A  4  A/C Magnetic Clutch and Lock Sensor
A  5  A/T Fluid Temp. Sensor
A  6  ABS Actuator
A  7  ABS Actuator
A  8  ABS Relay
A  9  ABS Relay
A  10  ABS Speed Sensor Front LH
A  11  ABS Speed Sensor Front RH

B  1  Back-Up Light SW (for M/T)
B  2  Brake Fluid Level Warning SW

C  4  Cruise Control Actuator

D  1  Data Link Connector 1 (Check Connector)
D  4  Distributor

E  1  EGR Gas Temp. Sensor

E  2  Electronically Controlled Transmission Solenoid
E  3  Engine Coolant Temp. Sensor (EFI Water Temp. Sensor)
E  4  Engine Coolant Temp. Sender (Water Temp. Sender)
E  6  Engine Hood Courtesy SW
E  7  Engine Oil Level Sensor

F  1  Front Airbag Sensor LH
F  2  Front Airbag Sensor RH
F  3  Front Fog Light and Parking Light LH
F  4  Front Fog Light and Parking Light RH
F  5  Front Side Marker Light LH
F  6  Front Side Marker Light RH
F  7  Front Turn Signal Light LH
F  8  Front Turn Signal Light RH
F  9  Front Wiper Motor

G  1  Generator (Alternator)
G  2  Generator (Alternator)

26
