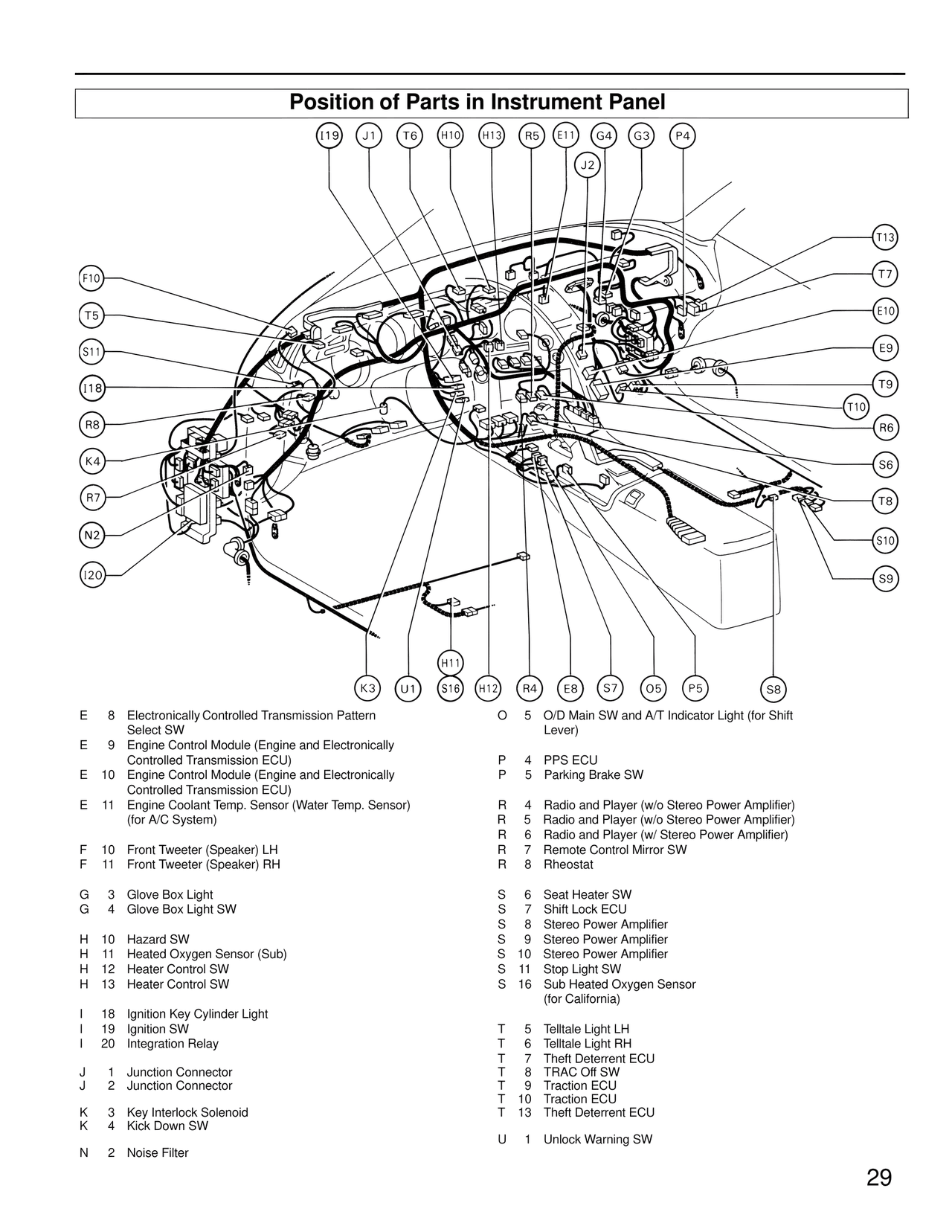

Position of Parts in Instrument Panel
I19 J1 T6 H10 H13 R5 E11 G4 G3 P4
J2
T13
T7
F10
E10
T5
E9
S11
T9
I18
T10
R8
R6
K4
S6
R7
T8
N2
S10
I20
S9
K3 U1 S16 H12 R4 E8 S7 O5 P5 S8
H11
E 8 Electronically Controlled Transmission Pattern Select SW
E 9 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E 10 Engine Control Module (Engine and Electronically Controlled Transmission ECU)
E 11 Engine Coolant Temp. Sensor (Water Temp. Sensor) (for A/C System)
F 10 Front Tweeter (Speaker) LH
F 11 Front Tweeter (Speaker) RH
G 3 Glove Box Light
G 4 Glove Box Light SW
H 10 Hazard SW
H 11 Heated Oxygen Sensor (Sub)
H 12 Heater Control SW
H 13 Heater Control SW
I 18 Ignition Key Cylinder Light
I 19 Ignition SW
I 20 Integration Relay
J 1 Junction Connector
J 2 Junction Connector
K 3 Key Interlock Solenoid
K 4 Kick Down SW
N 2 Noise Filter
O 5 O/D Main SW and A/T Indicator Light (for Shift Lever)
P 4 PPS ECU
P 5 Parking Brake SW
R 4 Radio and Player (w/o Stereo Power Amplifier)
R 5 Radio and Player (w/o Stereo Power Amplifier)
R 6 Radio and Player (w/ Stereo Power Amplifier)
R 7 Remote Control Mirror SW
R 8 Rheostat
S 6 Seat Heater SW
S 7 Shift Lock ECU
S 8 Stereo Power Amplifier
S 9 Stereo Power Amplifier
S 10 Stereo Power Amplifier
S 11 Stop Light SW
S 16 Sub Heated Oxygen Sensor (for California)
T 5 Telltale Light LH
T 6 Telltale Light RH
T 7 Theft Deterrent ECU
T 8 TRAC Off SW
T 9 Traction ECU
T 10 Traction ECU
T 13 Theft Deterrent ECU
U 1 Unlock Warning SW
