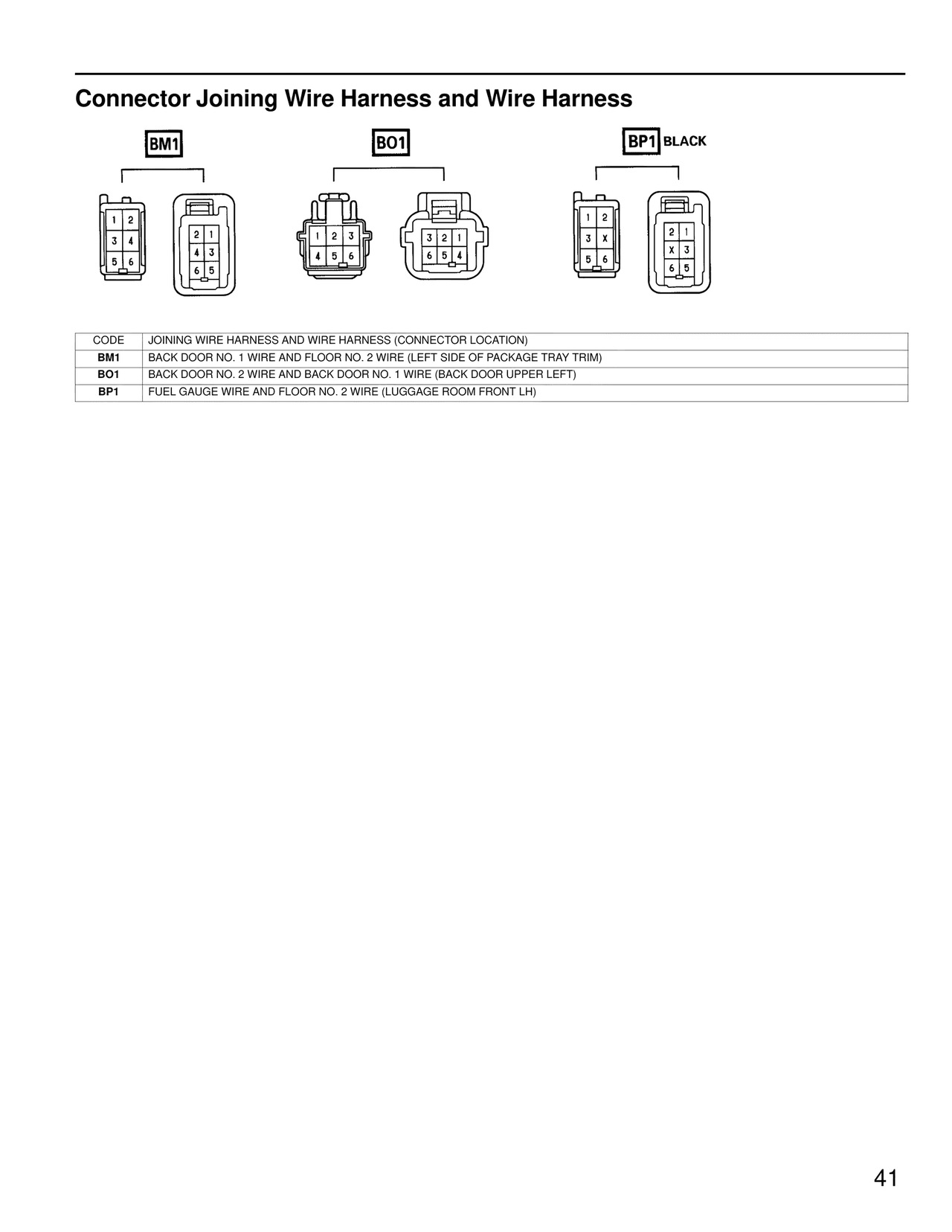

Connector Joining Wire Harness and Wire Harness

BM1

BO1

BP1 BLACK

1  2
3  4
5  6

2  1
4  3
6  5

1  2  3
4  5  6

3  2  1
6  5  4

1  2
3  X
5  6

2  1
X  3
6  5

CODE    JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
BM1     BACK DOOR NO. 1 WIRE AND FLOOR NO. 2 WIRE (LEFT SIDE OF PACKAGE TRAY TRIM)
BO1     BACK DOOR NO. 2 WIRE AND BACK DOOR NO. 1 WIRE (BACK DOOR UPPER LEFT)
BP1     FUEL GAUGE WIRE AND FLOOR NO. 2 WIRE (LUGGAGE ROOM FRONT LH)

41
