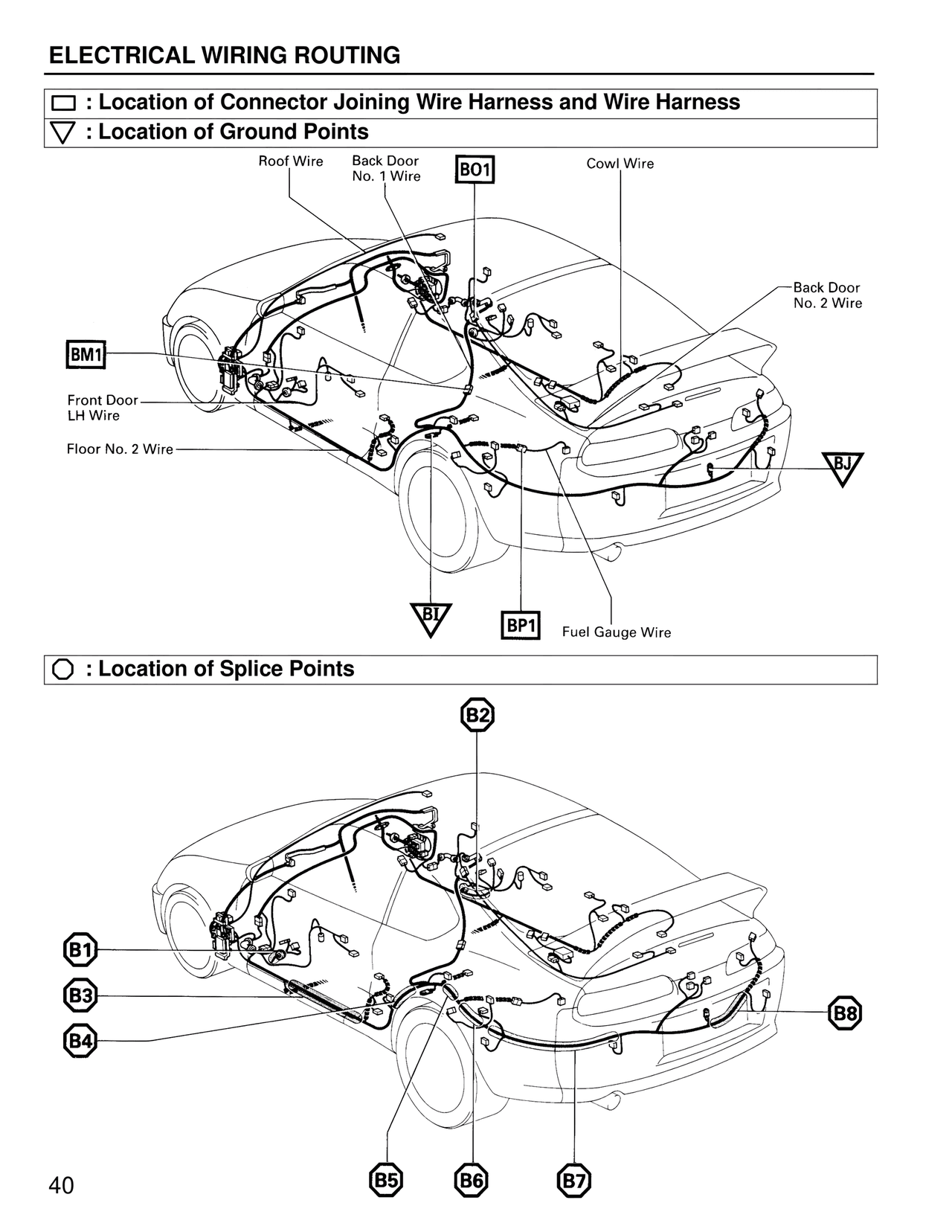

ELECTRICAL WIRING ROUTING
□ : Location of Connector Joining Wire Harness and Wire Harness
▽ : Location of Ground Points
Roof Wire Back Door
No. 1 Wire BO1 Cowl Wire
BM1
Front Door
LH Wire
Floor No. 2 Wire
BJ
BI BP1 Fuel Gauge Wire
Back Door
No. 2 Wire
○ : Location of Splice Points
B2
B1
B3
B4
B8
B5 B6 B7
