A–9
INTRODUCTION–CIRCUIT PROTECTION
Equal Amperage Rating
10 10
Equal Amperage Rating
Puller

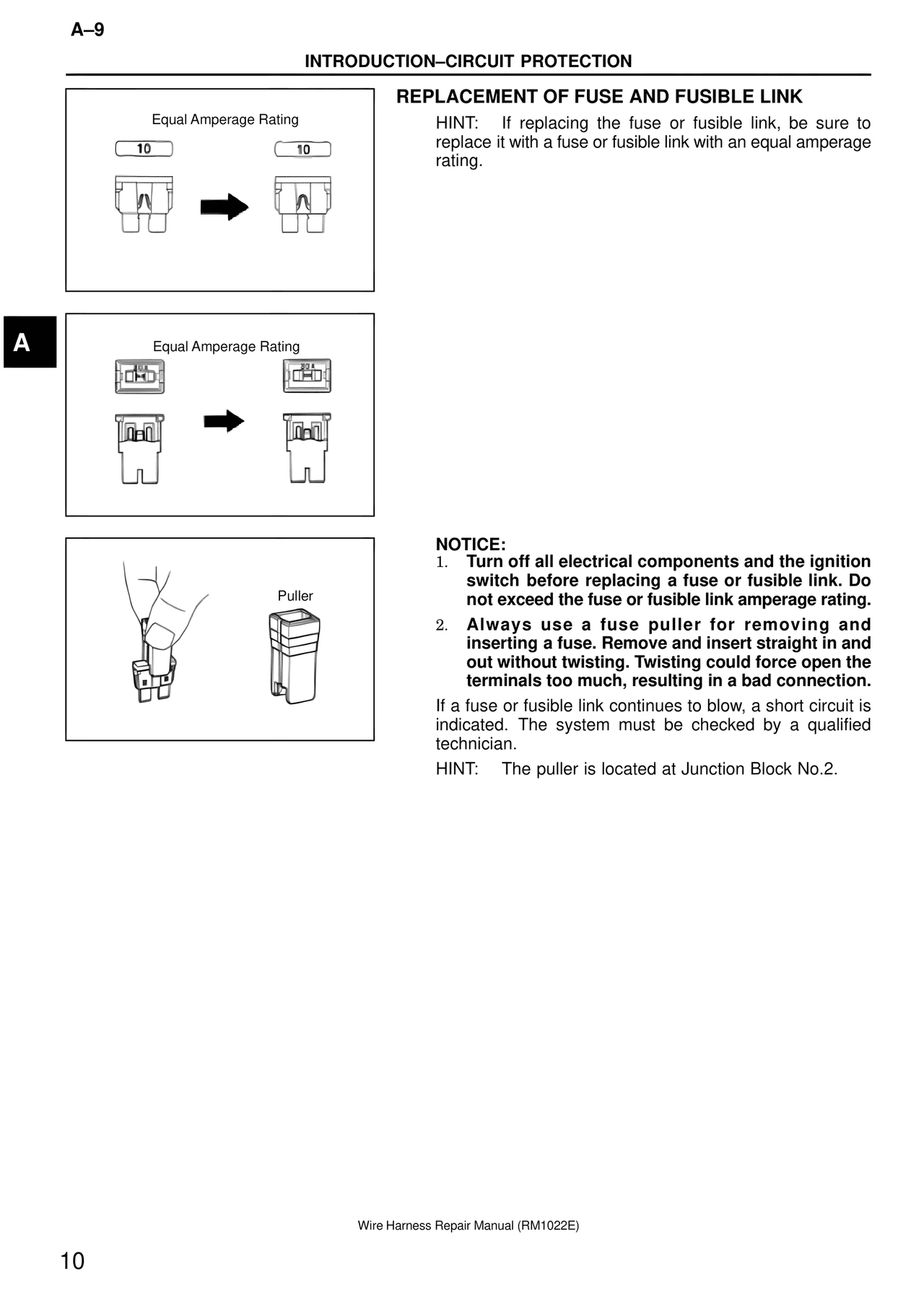

REPLACEMENT OF FUSE AND FUSIBLE LINK
HINT: If replacing the fuse or fusible link, be sure to replace it with a fuse or fusible link with an equal amperage rating.
NOTICE:
1. Turn off all electrical components and the ignition switch before replacing a fuse or fusible link. Do not exceed the fuse or fusible link amperage rating.
2. Always use a fuse puller for removing and inserting a fuse. Remove and insert straight in and out without twisting. Twisting could force open the terminals too much, resulting in a bad connection.
If a fuse or fusible link continues to blow, a short circuit is indicated. The system must be checked by a qualified technician.
HINT: The puller is located at Junction Block No.2.
Wire Harness Repair Manual (RM1022E)
10
