B–1

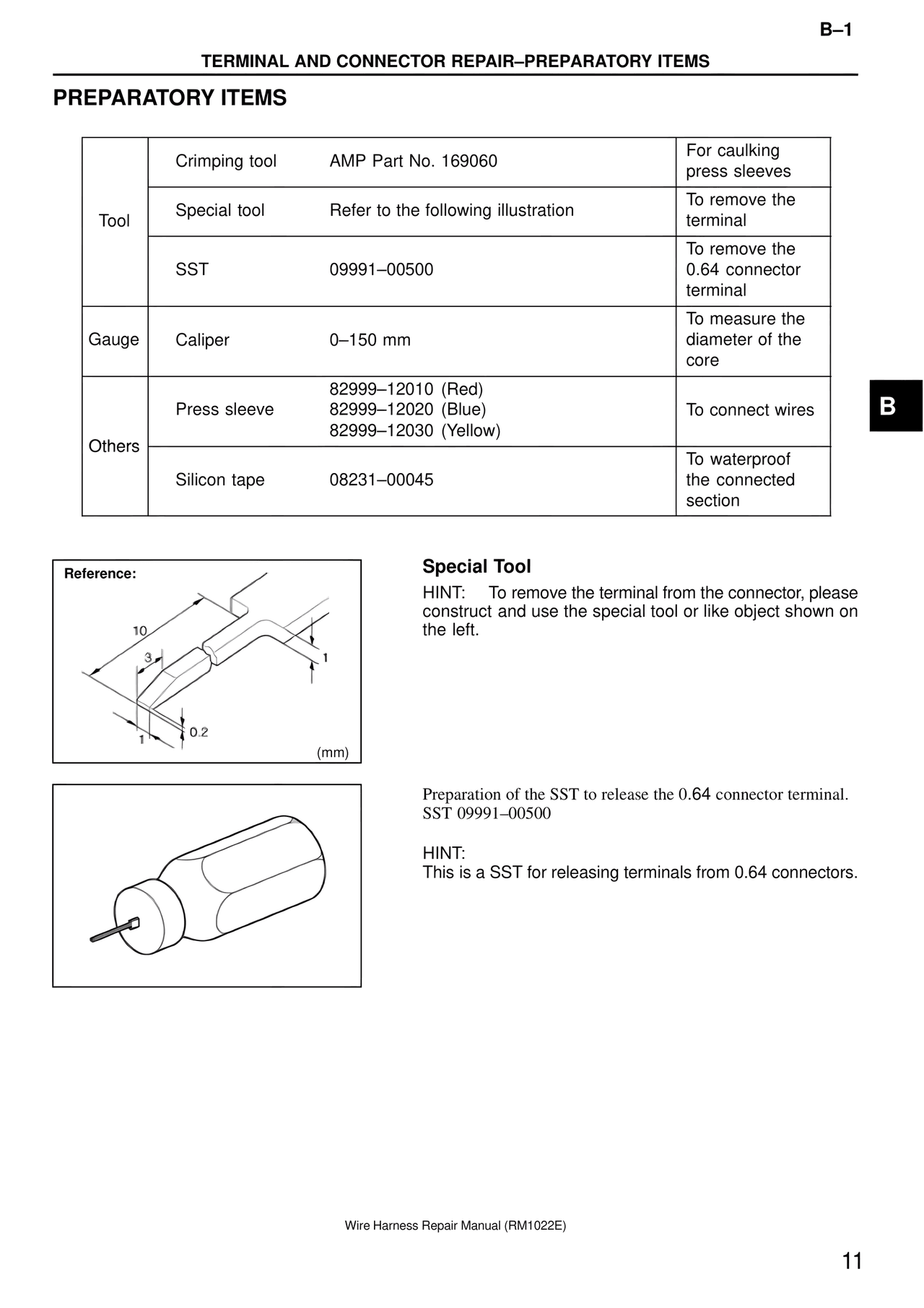

TERMINAL AND CONNECTOR REPAIR–PREPARATORY ITEMS
PREPARATORY ITEMS
Tool
Crimping tool AMP Part No. 169060 For caulking press sleeves
Special tool Refer to the following illustration To remove the terminal
SST 09991–00500 To remove the 0.64 connector terminal
Gauge
Caliper 0–150 mm To measure the diameter of the core
Others
Press sleeve 82999–12010 (Red)
82999–12020 (Blue)
82999–12030 (Yellow) To connect wires
Silicon tape 08231–00045 To waterproof the connected section
Reference:
10
3
1
0.2
1
(mm)
Special Tool
HINT: To remove the terminal from the connector, please construct and use the special tool or like object shown on the left.
Preparation of the SST to release the 0.64 connector terminal.
SST 09991–00500
HINT:
This is a SST for releasing terminals from 0.64 connectors.
B
Wire Harness Repair Manual (RM1022E)
11
